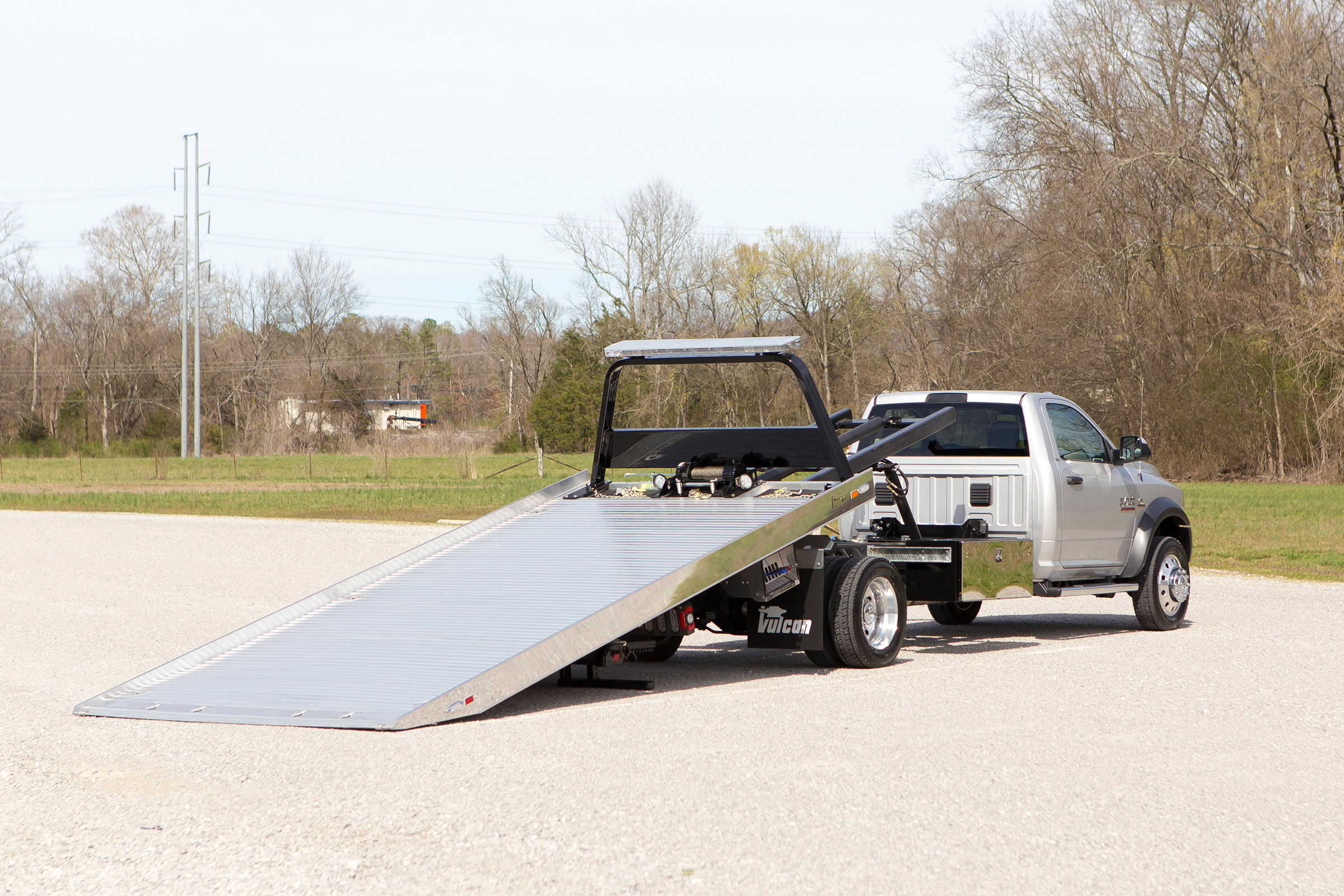

Vulcan 10 Series Gen II
Enduring Value for Your Demanding Business
vulcanVulcan 10 Series carriers are packed with practical features to provide safe and easy hauling of a variety of loads with the same quality you have come to expect out of all Vulcan products.
Vulcan 10 Series carriers are available is several deck lengths and a variety of options that allow you to customize your carrier to your specific needs. For more information on the carriers that stand up to your tough demands, contact your local Vulcan Distributor.
Features
Standard
- Platform Available in Aluminum or Steel
- Floor Level Sides w/ Stake Pockets (Steel)
- Hollow Structural Side Rails (Aluminum)
- Subframe Length 210” 19’-19.5’, 230” 20’-22’
- Right & Left Chain Trays
- Safety Chains (2 Front, 2 Rear)
- Painted in Black Acrylic Urethane (Steel Only)
- Left & Right Side Illuminated Controls
- Federal Standard #108 LED Lighting
- 8,000 lb Hydraulic Winch w/ 50’ Cable
- Full Function Wheel Lift System
- 11 Key Slot Package (Steel)
- Slide-In L-Arms w/ Anti-Theft Storage
- Pre-Wired Electrical Junction Box
- Back-Up Lights & Alarm
- Adjustable Rear Stabilizer
- 6-Spool Capable Control Station
- Lubrication Fittings on All Pivot Points
- Bed Built 96” Wide
- 6 Key Slot Package (Aluminum)
- Slide Pads
- Bed Anti-Tilt Lockout
- Roller Bed Positive Lock-Down
- Two Lift Cylinders
- One Extension Cylinder
- Manual Shift Winch Clutch Release
- Cable Tensioner
- Cable Roller Guide
- Tow Light Socket
- Mud Flaps
- Hydraulic Pump
Optional
- Frame-Mounted Pylon (Requires 6” or 12” Additional CA depending on size of pylon base)
- Bed-Mounted Cab Protector
- Extreme Angle Option
- Smooth Floor in lieu of Tread Plate (Steel)
- Optional Color on Top of Deck & Side Rails (steel)
- Various Side Rail Options Available
- Work Lights (Rear, Pylon, or Winch Mounted)
- Dock Stabilizer / Wheel Lift Combination
- Extendable Pintle Hitch
- Wireless Winch Remote
- Steel or Aluminum Tool Compartments
- Various Chain & Strap Assemblies
- Optional Planetary Winch
- SST® Option
- 9-Spool Control Station Capable
- Air Shift Winch Clutch Release
- Bed Built 102” Wide
- Galvanized Subframe
- Wood Floor*
- PTO
- Switch Panel
- Additional Lighting
- Auto-Grip™ II Wheel Lift
- Vulcan 3-Way Pivot & Other Wheel Retainer Options
- 6 Key Slot Package (Aluminum)
- Additional Key Slots
- Side-Mount Winch
- Outboard Tilt Cylinders (Use outboard tilt cylinders to avoid midship fuel tanks or in-line exhaust)
Specifications
Carrier
| Load Rating * | 10,000 lbs. | |
| Platform Length | 19’, 19.5’, 20.5', 21’, 21.5’, 22’ | |
| Platform Thickness | 3/16” | |
| Platform Width (Outside) | 96” | |
| Platform Width (Inside **) | 91.5” | |
| Steel Crossmembers | 2” x 2” on 8” Centers | |
| Aluminum Crossmembers | 2” on 3 3/8” Centers | |
| Winch (1st Layer) | 8,000 lbs. | |
| Wire Rope | 3/8” x 50’ | |
| Wheel Lift Rating* | 3,000 lbs. | |
| Tow Rating at Full Extension** | 7,500 lbs. | |
| * Platform Rating is based on Equally Distributed Load. | ||
| ** Inside Bed Widths will vary based on Side Rail Option. |
Cab to Axle Requirements
| Carrier Length | Tilt Method | C.A. | Frame RBM |
|---|---|---|---|
| Frame-Mounted Pylon | - | Add 6' | - |
| 19' | OBT | 120” | 500,000 in/lbs. |
| 19.5' | OBT | 120” – 126” | 500,000 in/lbs. |
| 20.5‘ | IBT or OBT | 132” | 600,000 in/lbs. |
| 21‘ | IBT or OBT | 138” | 600,000 in/lbs. |
| 21.5‘ | IBT or OBT | 144” | 600,000 in/lbs. |
| 22‘ | IBT or OBT | 150” | 600,000 in/lbs. |
Chassis Recommendations
| Minimum GVWR | 15,000 lbs. | |
| Maximum GVWR | 25,500 lbs. | |
| Recommended Tire Size | 16” – 19.5” | |
| Minimum Frame Height | 31” | |
| Maximum Frame Height | 38” | |
| Minimum Frame Length Behind Center of Rear Axle | 36" | |
| Wheel and Tire Size** | 225/70R19.5 |
*The outside frame rails of the chassis extending behind the cab must be free of fuel tanks, air tanks, battery boxes, exhaust stacks, etc.
*Wheel and tire size for Ford F550, Dodge 5500, Chevy 6500, and International CV.
For Ford F650, International MV, Freightliner M2, and Hino use 245/70R19.5 or 255/70R22.5 wheel and tire size.
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
