Chevron 10 Series Gen II

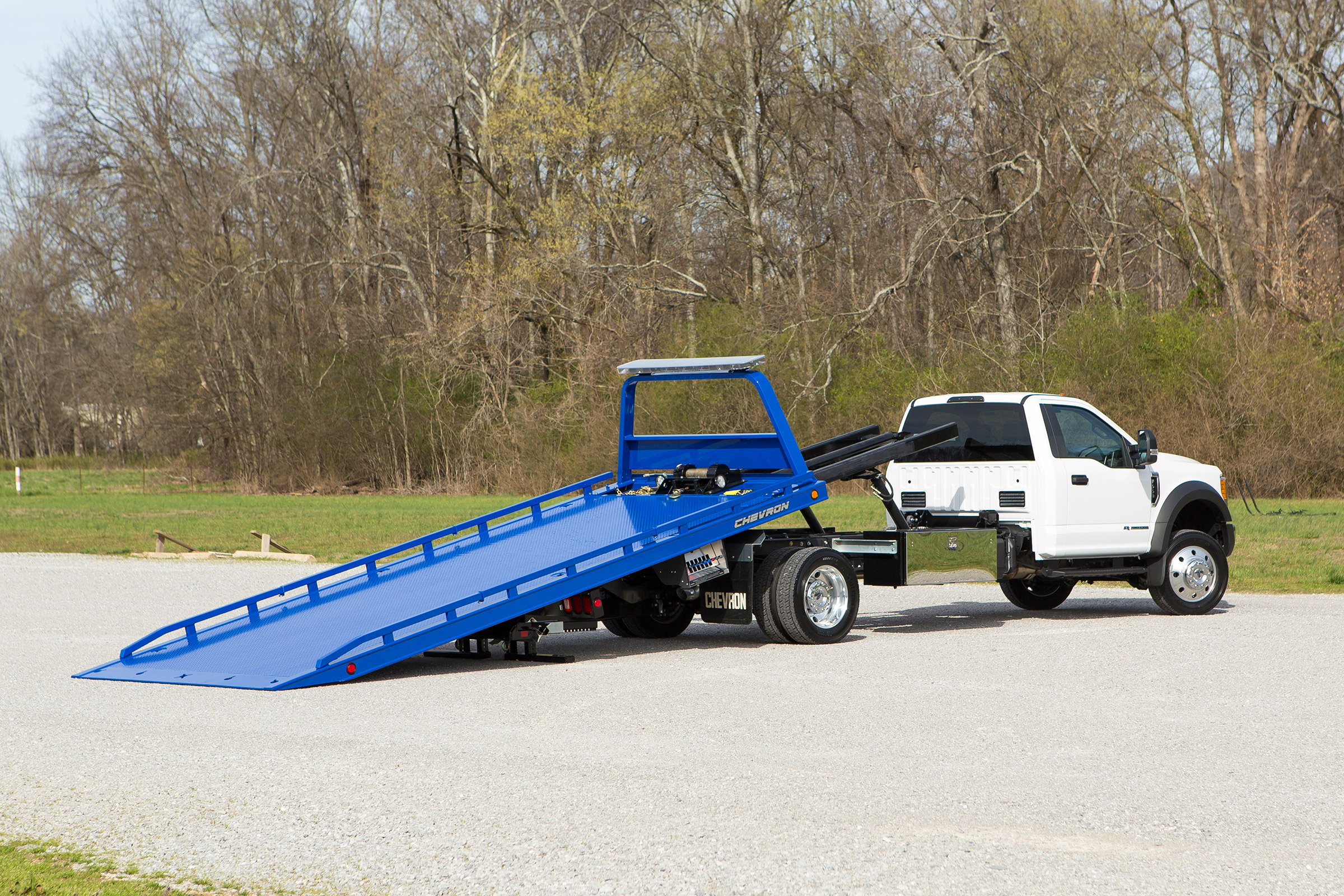

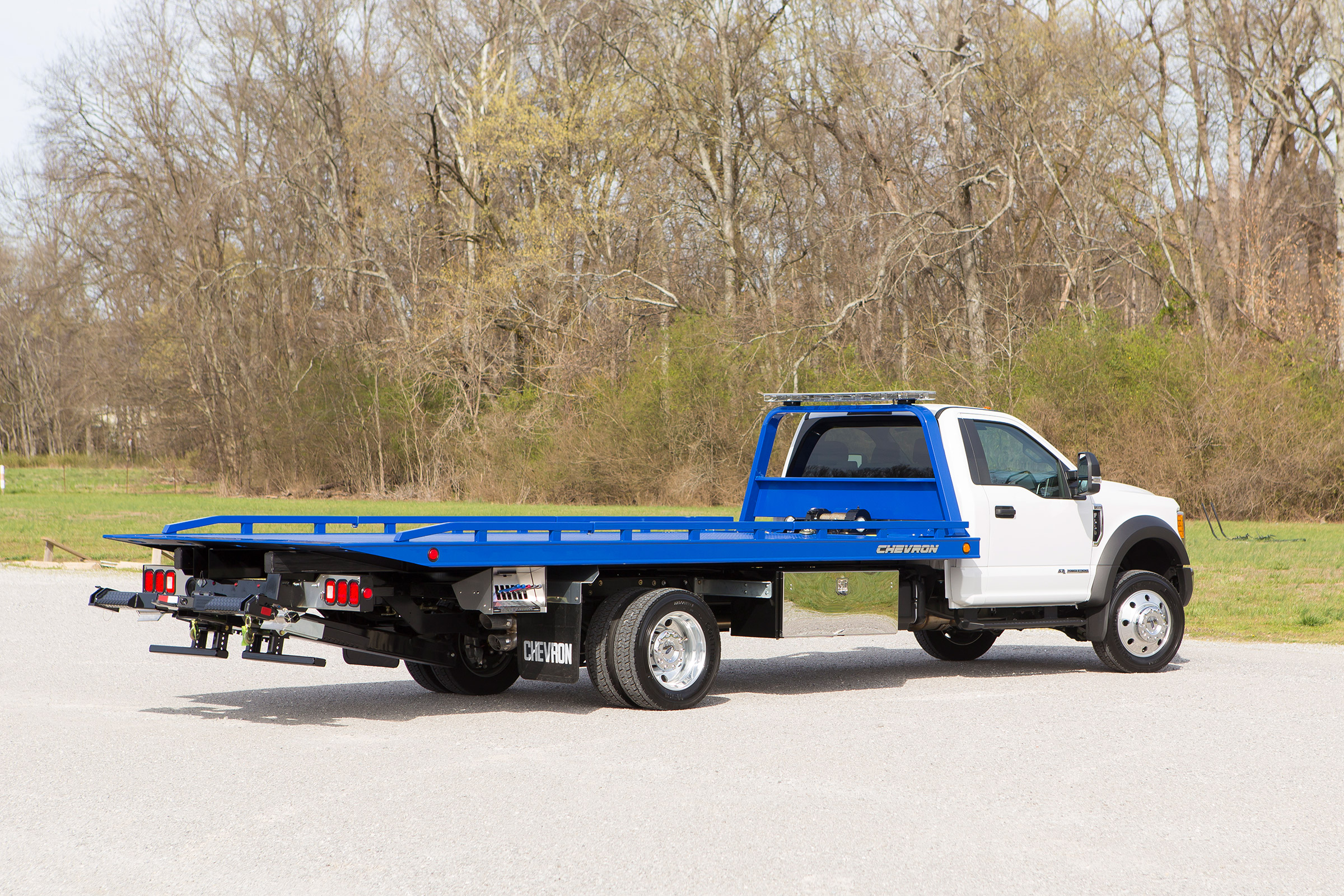

At Chevron, we design equipment with our customers at the forefront of the engineering process. The 10 Series Gen II Carrier is a prime example of that. With bed lengths from 19' - 22', impressive low deck height, excellent load angle and superior center of gravity this one-man-operation is a safe, profitable addition to any fleet.
Features
Standard
- Lubrication Fittings on All Pivot Points
- Manual Shift Winch Clutch Release
- Painted in Black Acrylic Enamel (Steel)
- Right & Left Chain Trays
- Roller Bed Positive Lock-Down
- 8,000 lb Hydraulic Winch w/ 50’ Cable
- Left & Right Side Illuminated Controls
- Adjustable Rear Stabilizer
- Mud Flaps
- One Extension Cylinder
- Bed Built 96” Wide
- Back-Up Lights & Alarm
- Bed Anti-Tilt Lockout
- 6-Spool Capable Control Station
- Floor Level Sides w/ Stake Pockets (Steel)
- 11 Key Slot Package (Steel)
- Safety Chains (2 Front, 2 Rear)
- Cable Roller Guide
- Federal Standard #108 LED Lighting
- Cable Tensioner
- Two Lift Cylinders
- Slide Pads
- Hollow Structural Side Rails (Aluminum)
- Tow Light Socket
- Hydraulic Pump
- Full Function Wheel Lift System
- Slide-In L-Arms w/ Anti-Theft Storage
- Subframe Length 210” 19’-19.5’, 230” 20’-22’
- Platform Available in Aluminum or Steel
- Pre-Wired Electrical Junction Box
Optional
- Steel or Aluminum Tool Compartments
- Switch Panel
- Galvanized Subframe
- Load Rite Gen II® Option
- Optional Planetary Winch
- Outboard Tilt Cylinders (Use outboard tilt cylinders to avoid midship fuel tanks or in-line exhaust)
- PTO
- Side-Mount Winch
- Smooth Floor in lieu of Tread Plate (Steel)
- Wireless Winch Remote
- Bed-Mounted Cab Protector
- Wood Floor*
- Frame-Mounted Pylon (Requires 6” or 12” Additional CA depending on size of pylon base)
- Various Wheel Retainer Options
- Additional Key Slots
- Various Side Rail Options Available
- Bed Built 102” Wide
- Extendable Pintle Hitch
- Various Chain & Strap Assemblies
- Air Shift Winch Clutch Release
- Auto-Grip™ II Wheel Lift
- Combination Dock Stabilizer / Wheel Lift
- Color on Top of Deck & Side Rails (Steel)
- 9-Spool Control Station Capable
- 6 Key Slot Package (Aluminum)
- Additional Lighting
- Work Lights (Rear, Pylon, or Winch Mounted)
Specifications
Carrier
| Load Rating | 10,000 lbs. | |
| Platform Length | 19’, 19.5’, 20.5', 21’, 21.5’, 22’ | |
| Platform Thickness | 3/16” | |
| Platform Width | Outside | 96” |
| Platform Width | Inside | 91.5” |
| Crossmembers | Steel | 2” x 2” on 8” Centers |
| Crossmembers | Aluminum | 2” on 3 3/8” Centers |
| Winch (First Layer) | 8,000 lbs. | |
| Wire Rope | 3/8” x 50’ | |
| Wheel Lift Rating* | 3,000 lbs. | |
| Tow Rating at Full Extension** | 7,500 lbs. |
Cab to Axle (C.A.) Requirements
| Carrier Length | Tilt Method | Clear C.A. | Minimum Frame RBM |
|---|---|---|---|
| Frame-Mounted Pylon | - | Add 6” | - |
| 19’ | OBT | 120” | 500,000 in/lbs. |
| 19.5‘ | OBT | 120” – 126” | 500,000 in/lbs. |
| 20.5‘ | IBT | 132” | 600,000 in/lbs. |
| 21‘ | IBT | 138” | 600,000 in/lbs. |
| 21.5‘ | IBT | 144” | 600,000 in/lbs. |
| 22‘ | IBT | 150” | 600,000 in/lbs. |
Chassis Recommendations
| Min. GVWR* | 15,000 lbs. |
| Max. GVWR* | 25,000 lbs. |
| Recommended Wheel Size | 16"-19.5" |
| Min. Frame Height | 34" |
| Max. Frame Height | 38" |
| Min. Frame Length Behind Center of Rear Axle | 36" |
| Wheel and Tire Size | 225/70R19.5 |
*The outside frame rails of the chassis extending behind the cab must be free of fuel tanks, air tanks, battery boxes, exhaust stacks, etc.
*Wheel and tire size for Ford F550, Dodge 5500, Chevy 6500, and International CV.
For Ford F650, International MV, Freightliner M2, and Hino use 245/70R19.5 or 255/70R22.5 wheel and tire size.
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
