- Available brand
-
Titan Crane-Boom Stake Bed
- Crane Boom
- Fassi® F335
- Platform Length
- 25’ Reinforced

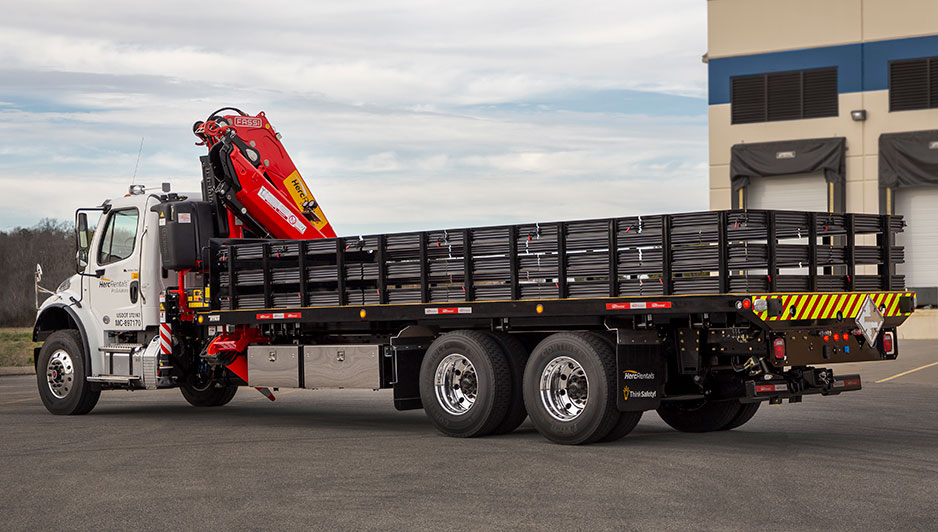

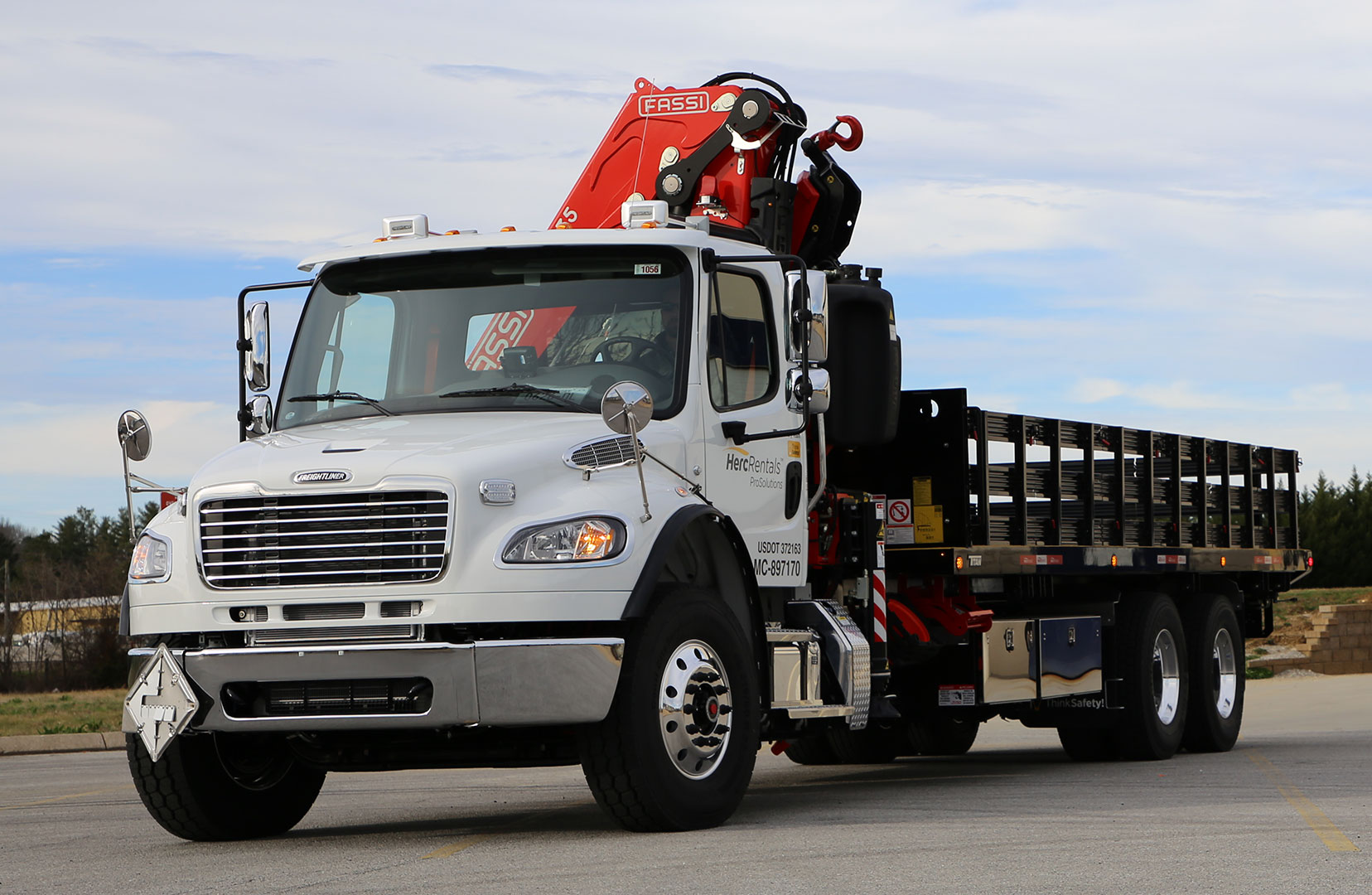

Titan Crane-Boom Stake Bed Unit Photos
The stake bed features a 30,000 lbs. capacity with Fassi F335 crane or equivelent and a hydraulically powered rear hitch with the ability to tilt up, down, extend, retract, and pivot. The Titan stake bed with the crane boom and hitch are ideal for lifting and pulling a variety of pieces of popular rental industry equipment.
Specifications
Crane
| FASSI® F335 Crane | 8,520 lbs. @ 26’8” | 20,944 lbs. @ 10’ |
|---|
Bed
| Reinforced Bed | 30,000 lbs. | 25’ |
|---|---|
| Bed Material | Apitong Wood Floor |
| Tie-Downs Locations | 46 Available |
Hydraulic Rear Hitch
| Lift Capacity | 6,000 lbs. |
|---|---|
| Tow Capacity | 20,000 lbs. |
| Range of Motion | Extendable, Vertical Tilt, Horizontal Pivot |
