Folding Ramp Flatbed
- Platform Rating
- 30,000 lbs.
- Platform Length
- 28 Feet

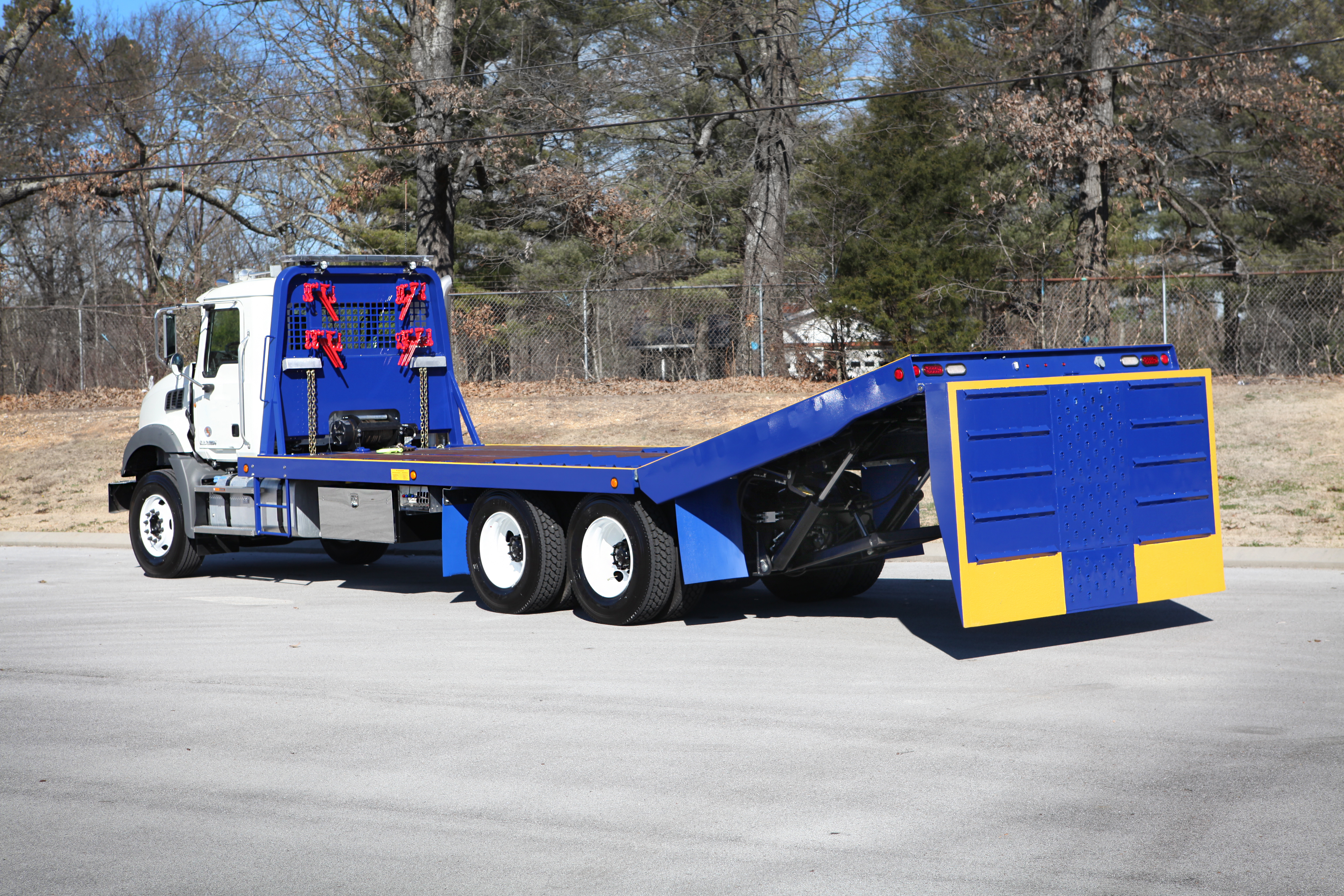

Folding Ramp Flatbed Gallery
Features
Standard
- 28' Platform Length
- 102" Platform Width
- 30,000 lbs. Deck
- 20,000 lbs. Planetary Winch
- 5” Deck Height above Chassis Frame
- Winch Air Free Spool
- Steel & Apitong Wood Flooring
- Bed Mounted Ladder
- Fully Fabricated Heavy-Duty Steel Subframe
- Painted with Black Acrylic Enamel
- Hydraulic Tail & Ramp Lock
- Dual Lift Cylinders
- 24" OC Chain Locks
- Painted in Black Acrylic Enamel
- Floor Level Sides
- Reese Style Receiver & 7-Way Trailer Plug
- Drivers Side Controls
- Body Wiring Harness & Junction Box
- Wireless Controller
- Federal Standard #108 Lighting
Optional
- Bed Mounted Cab Protector
- Winch Guard
- Additional Chain Locks
- Locking Chain Racks (Cab Protector Mounted)
- Additional D-Rings
- Chain Binder Storage (Cab Protector Mounted)
- Optional Body Color (Top & Sides)
- Safety Cones & Storage Brackets
- Anti-Skid Paint (Top & Sides)
- Dual Reverse Camera
- Front Mud Flaps & Brackets
- Rightway Scale System
- LED Lightbar
- Additional Lighting
- Installation
- 48” Toolbox w/Stainless Steel Door
- Triaxle Underbody Lift Axle
- Steel Traction Angle (Decking)
- Steel Punched Traction Plate (Decking)
Specifications
Deck
| Lift Capacity | 16,000 lbs. |
|---|---|
| Main | 226” to Center of Pivot Pin |
| Middle Section | 114.75” to Center of Pivot Pin |
| Tail | 60” |
Chassis Recommendations
| Minimum GVW* | 56,600 lbs. | |
|---|---|---|
| Minimum Frame Section Height | 11.5” | |
| Minimum After Frame | 65” | |
| Suggested Tire Size | Front | 315/80R 22.5 |
| Suggested Tire Size | Rear | 295/75R 22.5 |
| Minimum C.B. (Clear)** | 29.4' Carrier Length | 198" CB |
| Minimum Frame RBM | 3,000,000” / lbs. |
* Consult the factory for other GVW.
** Use back of vertical exhaust for the usable C.B. and effective back of cab.
