Vulcan 810 / Holmes 440

Boom Capacity
8,000 lbs.
Winch Rating
8,000 lbs.
Tow Rating
7,500 lbs.

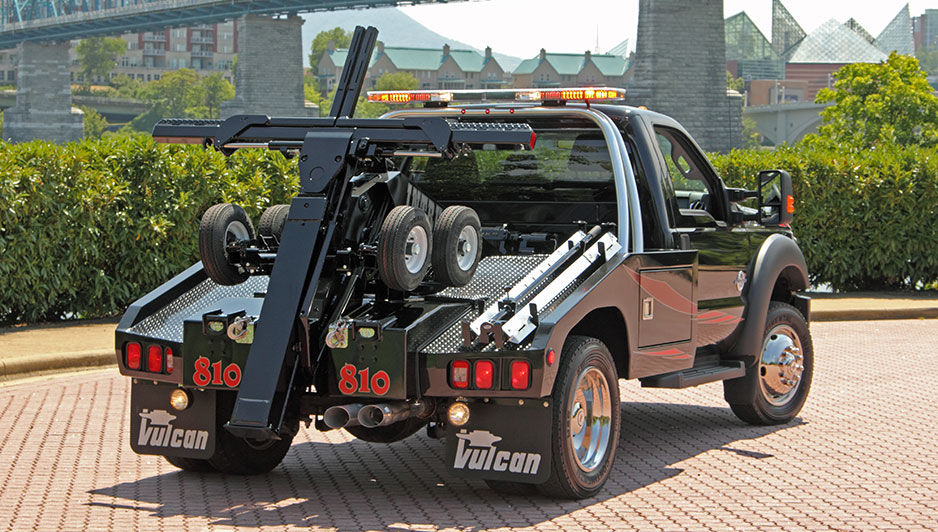

The Vulcan 810 and Holmes 440 have been specifically designed to fill the needs of private impounders and professional repossessors. The low-profile boom and low mount planetary winch provides a sleek appearance and superior visibility.

The modular design body is adjustable from 88” to 94”, eliminating the need for fender flares, and includes spacious driver and passenger side tool compartments to provide ample storage for your additional equipment. The proven hydraulic auto load wheel lift system provides for quick and easy operation, even when hooking up parallel parked vehicles. Contact your local Vulcan distributor for more information on the sleek and stylish Vulcan 810 Intruder.

Features

Standard

  • 60” C.A. Steel Modular Body
  • Adjustable Body Width, 88” or 94”
  • Auto Load Wheel Lift System
  • 180° Pivoting Crossbar
  • Self Centering Crossbar
  • Tailboard Safety Chain Pockets
  • Safety Chains
  • Safety Chain Pocket Guards
  • Wheel Lift Ratchets & Straps
  • Driver & Passenger Side Tool Compartments
  • In Cab Wheel Lift & Winch Controls
  • 8,000 lb Planetary Winch with 100’ of 3/8” Cable
  • Junction Box and Wiring Harness
  • Mud Flaps
  • Tailboard Mounted D-Rings
  • Federal Standard 108 Lighting
  • Tire Spacers (Flat Tires)

Optional

  • Clutch Pump or Pump/PTO
  • Aluminum or Composite Modular Body
  • Power Tilt with Adjustable Limiter Switches on Elevation & Tilt Functions
  • Steel Light Pylon
  • Aluminum Tubular Light Pylon
  • 24” Tunnel Tool Box
  • Trailer Hitch Attachment
  • Motorcycle Attachment
  • Dress Up Packages
  • Emergency Lighting
  • Dollies & Mounting Options
  • Trailer Hitch Attachment

Specifications

Boom

Recovery Boom (at boom end swivel) 8,000 lbs.
Maximum Lift Angle 21°
Winch (Planetary) 8,000 lbs.
Cable 3/8” x 100’

Underlift

Lift Capacity Extended 4,000 lbs.
Tow Rating 7,500 lbs.
Maximum Reach 73”
Optional Power Tilt 30° Arc

Chassis Recommendations

Minimum C.A. (Cab to Axle) 60”
Maximum C.A. (With Tunnel Tool Box) 84”
Suggested GVWR 14,500 lbs.
