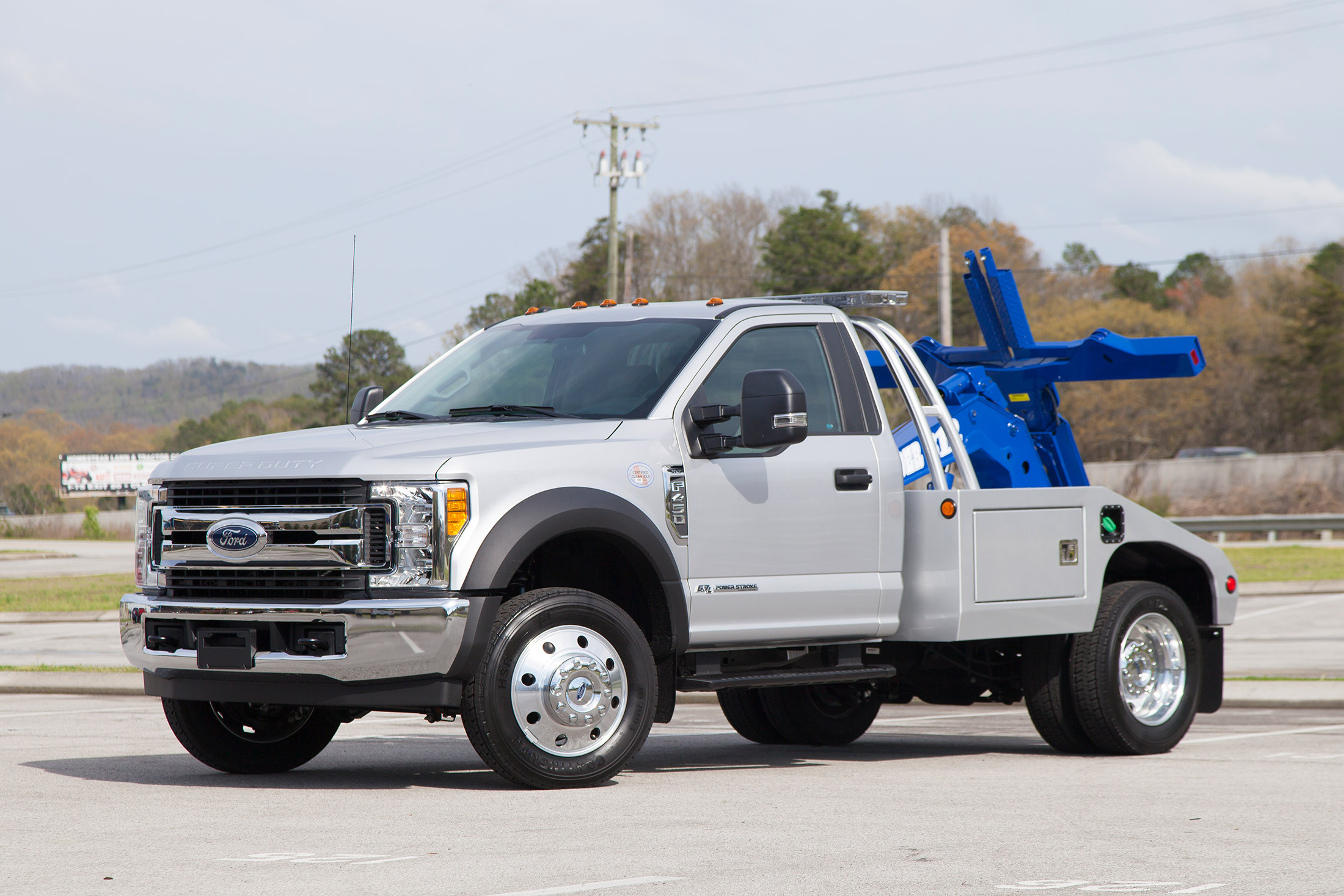

Vulcan 812 Intruder II
High Performance Self-Loading Wheel Lift Unit
The Vulcan Intruder has been one of the most popular choices in the industry over the past decade for private property, repossession and commercial towers. But in an effort to improve upon an already great product, Miller Industries’ engineers surveyed operators on what features were important to them.
The result is the new Vulcan 812 Intruder II with increased rear visibility between the boom and tailboard for easier hook ups, a new hose tracking system for longer life and easier maintenance and your choice of several handheld controllers to suit what the operator is most comfortable with. Other changes include a total redesigned low profile crossbar and claws that has a recessed area for better oil pan clearance and a new patent pending pivot system.
Features
Standard
- 60” C.A. Steel Modular Body
- Adjustable Body Width, 88” or 94”
- Auto Load Wheel Lift System
- Adjustable Limiter Switches on Elevation & Tilt Functions
- 180° Pivoting Crossbar
- Self Centering Crossbar
- Tailboard Safety Chain Pockets
- Safety Chains
- Safety Chain Pocket Guards
- Wheel Lift Ratchets & Straps
- Driver & Passenger Side Tool Compartments
- In Cab Wheel Lift & Winch Controls
- 8,000 lb Planetary Winch with 100’ of 3/8” Cable
- Junction Box and Wiring Harness
- Mud Flaps
- Federal Standard 108 Lighting
- Tire Spacers (Flat Tires)
Optional
- Clutch Pump or Pump/PTO
- Aluminum, Composite, or PolyBody Modular Body
- Steel Light Pylon
- Aluminum Tubular Light Pylon
- 24” Tunnel Tool Box (Steel, Aluminum or Composite)
- Motorcycle Attachment
- 5th Wheel Attachment
- Bolt on Tailboard ”D” Rings
- Dress Up Packages
- Emergency Lighting
- Dollies
- Trailer Hitch Attachment
Specifications
Boom
| Recovery Boom (at boom end swivel) | 8,000 lbs. | |
| Maximum Lift Angle | 21° | |
| Winch (Planetary) | 8,000 lbs. | |
| Cable | 3/8” x 100’ |
Underlift
| Lift Capacity Extended | 4,000 lbs. | |
| Tow Rating | 7,500 lbs. | |
| Maximum Reach | 73” | |
| Optional Power Tilt | 30° Arc |
Chassis Recommendations
| Minimum C.A. (Cab to Axle) | 60” | |
| Maximum C.A. (With Tunnel Tool Box) | 84” | |
| Suggested GVWR | 14,500 lbs. |
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
