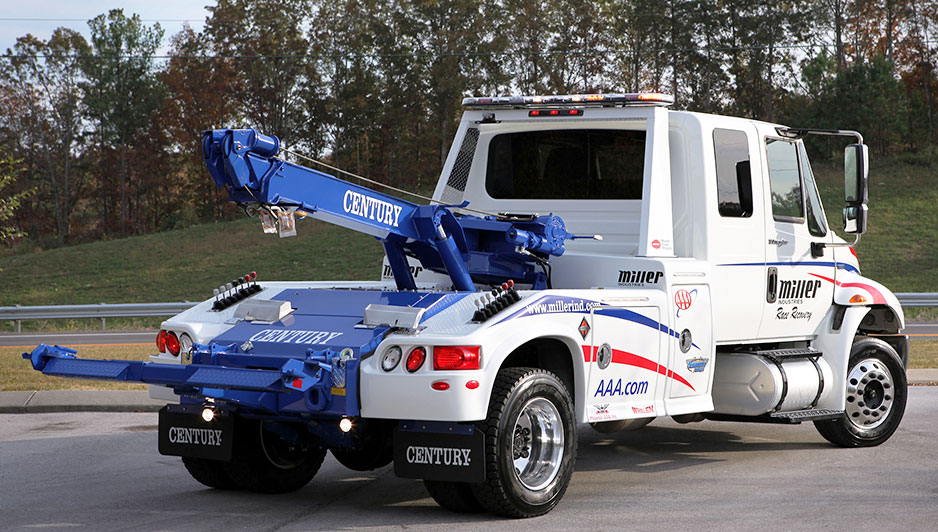

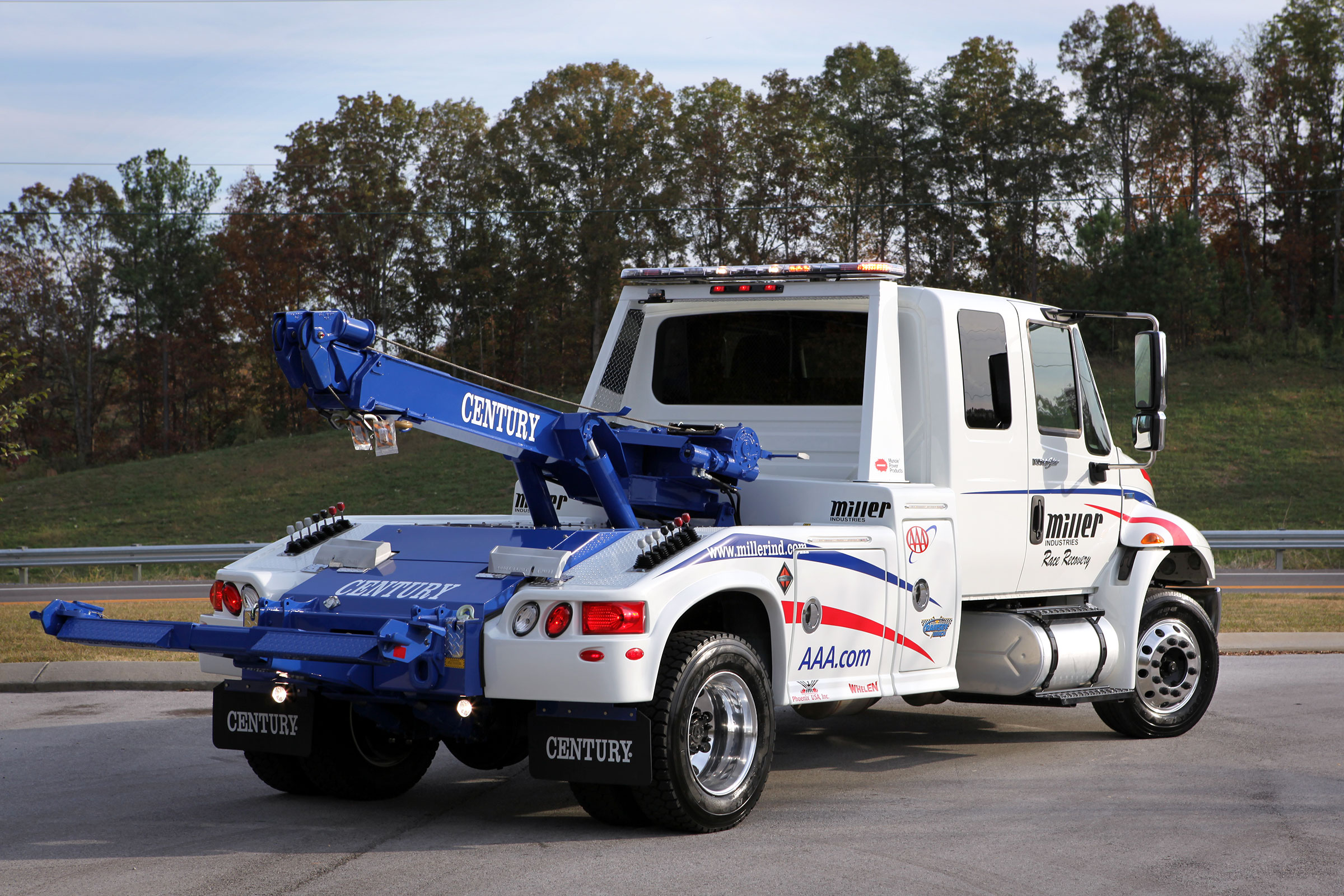

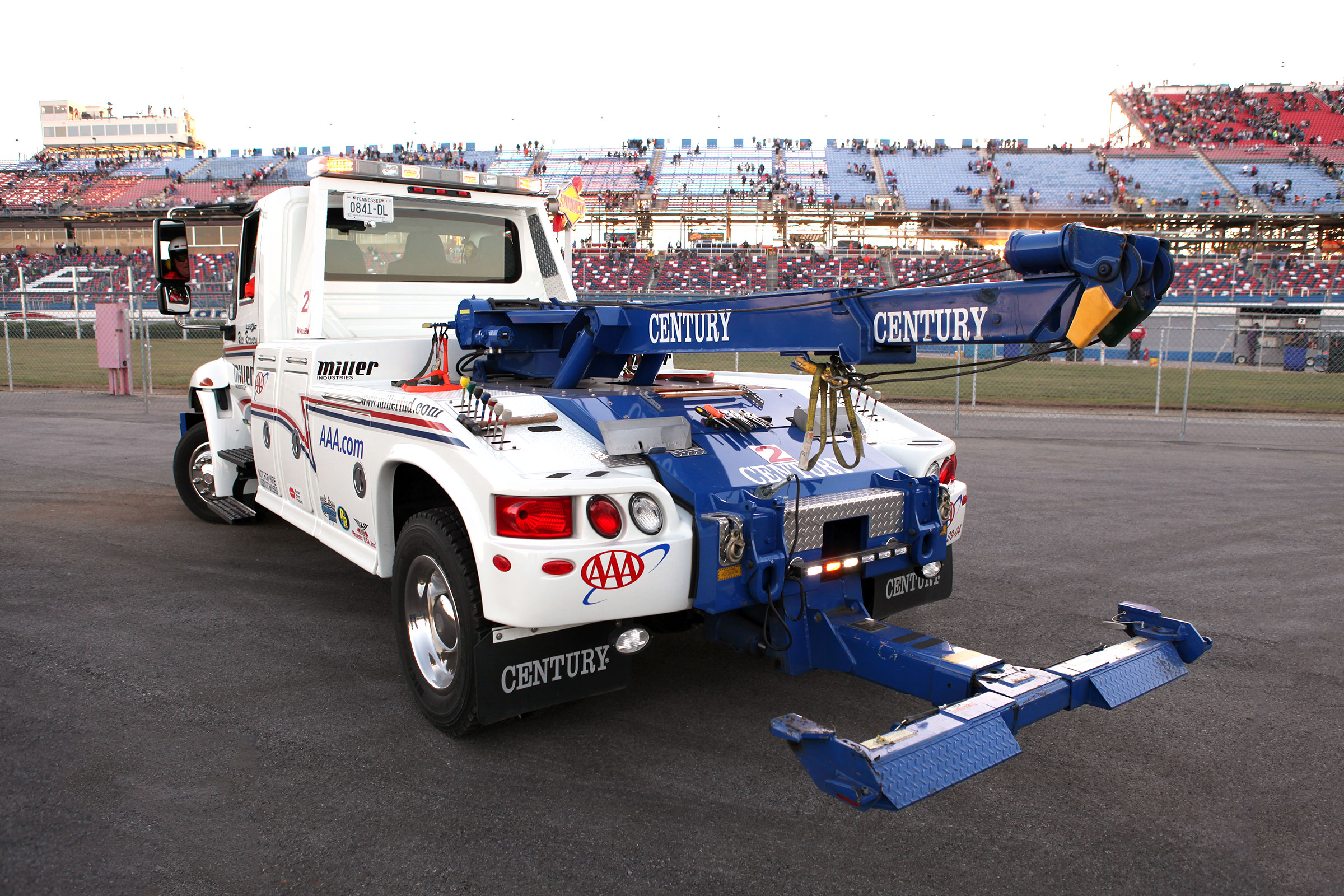

602 & 612
Light-Duty Conventional
After leading the industry for more than 40 years, the new Century line of light-duty towing and recovery units has once again raised the bar for quality, design and function. The new adjustable-width modular bodies are available in carbon, steel, aluminum, or the sleek and stylish composite.
The low-profile recovery booms are fabricated from four plates of high-tensile steel to save weight without sacrificing strength. For increased driver convenience, features such as tailboard L-arm storage, easy-access safety chain pockets and easy-to-operate dual control stations—along with Century's proven wheellift system—are just a few of the many reasons why you should contact your local Century distributor.
Features
Standard
- Adjustable Width Modular Body, 88” or 94”
- 60” Cab-to-Axle Steel Body
- Drivers & Passenger Side Tool Compartments
- Tailboard D-Rings
- Tailboard Safety Chain Pockets
- Wheel Lift Safety Chains - 5/16, Grade 70
- 3-Way Pivoting L-Arm System
- 4,000 lb Lightweight L-Arms
- L-Arm Storage Pockets
- Dual Boom & Wheel Lift Controls
- Independent Wheel Lift Tilt
- Winch Cable Tensioner(s) & Free Spool Handles
- Mud Flaps
- Federal Standard 108 Lighting
- Pump
- 1 Set of 3” Low Profile Frame Forks and Holders
Optional
- Aluminum Modular Body
- Composite Modular Body (94” Wide Only)
- Tunnel Box
- 6,000 lb L-Arms
- Emergency Lighting
- Tow Sling
- Dress-up Packages
- Trailer Hitch
- PTO/Pump Options
- Light Pylon
- Aluminum Tubular Light Pylon (25” & 33”)
- Fold Down Light Bar Brackets
- Convenience Packages (Rails & Steps)
- Dollies & Mounting Options
Specifications
Boom
| Model | 602 | 612 |
|---|---|---|
| Boom Structural Rating (S.A.E.) Retracted 34° | 20,000 lb | 24,000 lb |
| Boom Structural Rating (S.A.E.) Extended 34° | 6,000 lb | 8,000 lb |
| Maximum Angle | 45° | 45° |
| Boom Elevation Cylinder(s) | Dual | Dual |
| Maximum Hook Height | 167.5” | 167.5” |
| Reach Past Tailboard at Minimum Boom Angle | 81.5” | 81.5” |
Underlift
| Distance from the Tailboard | Retracted | 35” |
| Distance from the Tailboard | Extended | 66” |
| Lift Capacity Full Extension | With Lift Forks or Optional 6,000 lb L-Arms | 6,000 lb |
| Lift Capacity | Retracted with Forks | 9,000 lb |
| Lift Capacity | With Forks | Not Applicable |
| Tow Rating | 20,000 lb | |
| Underlift Tilt | +14° / -16° |
Winch Rating & Cable
| Model | 602 | 612 |
|---|---|---|
| Winch Capacity | (2) 8,000 lb | (2) 12,000 lb |
| Winch Type | Worm | Worm |
| Cable Specifications | 3/8” x 100’ 6 x 19 I.P.S. | 7/16” x 150’ 6 x 25 I.W.R.C. |
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
