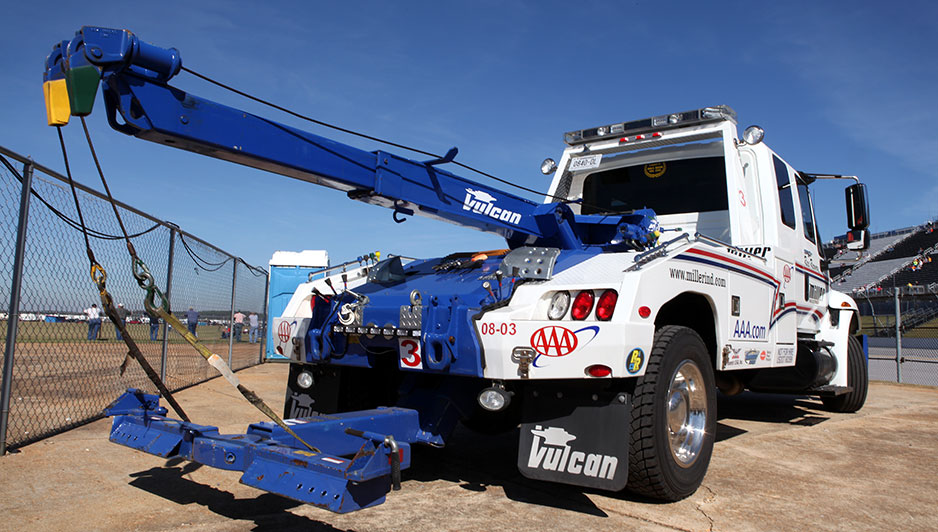

Vulcan 892 & 894

Boom Capacity
20,000 lbs.
Winch Rating (894)
12,000 lbs. (2)
Tow Rating
20,000 lbs.

Vulcan's innovation continues in our new adjustable-width, modular bodies that are available in carbon, stainless steel, aluminum or the sleek and stylish composite.  The low-profile recovery booms are fabricated from four plates of high-tensile steel to save weight without sacrificing strength.

Vulcan modular units include the same features that have made Vulcan the number one choice for conventional light-duty units such as separate control stations for wheel lift and boom controls, tailboard storage for wheel retainers and Vulcan's reliable wheel lift design with Vulcan's patented wheel retainers.  Visit your local Vulcan distributor to see for yourself why your next light duty unit should be a Vulcan.

Features

Standard

  • Adjustable Width Modular Body, 88” or 94”
  • 60” Cab-to-Axle Steel Body
  • Vulcan's Patented Wheel Retainers
  • 5,000 lb Wheel Retainers
  • Driver & Passenger Side Tool Compartments
  • Tailboard Safety Chain Pockets
  • Wheel Lift Safety Chains - 5/16, Grade 70
  • Wheel Retainer Storage Pockets
  • Split Dual Boom & Wheel Lift Controls
  • Independent Wheel Lift Tilt
  • Winch Cable Tensioner(s) & Free Spool Handles
  • Hydraulic Pump
  • Mud Flaps
  • Federal Standard 108 Lighting
  • 1 Set of 3” Low Profile Frame Forks and Holders

Optional

  • Aluminum Modular Body
  • Composite Modular Body (94” Wide Only)
  • Tunnel Box
  • Emergency Lighting
  • Tow Sling
  • Dress-up Packages
  • Trailer Hitch
  • PTO / Pump Combinations
  • Light Pylon
  • Aluminum Tubular Light Pylon (25” & 33”)
  • Fold Down Light Bar Brackets
  • Convenience Packages (Rails & Steps)
  • Dollies & Mounting Options

Specifications

Boom

Boom Structural Rating (S.A.E.) Retracted 34° 20,000 lb
Boom Structural Rating (S.A.E.) Extended 34° 6,000 lb
Maximum Angle 45°
Boom Elevation Cylinder(s) Dual
Maximum Hook Height 167 1/2”
Reach Past Tailboard at Minimum Boom Angle 81 1/2”

Underlift

Distance from Tailboard Retracted 30”
Distance from Tailboard Extended 67”
Lift Capacity Full Extension 6,000 lb
Lift Capacity Retracted with Forks 9,000 lb
Tow Rating 20,000 lb
Underlift Tilt +8° / -8°

Winch Rating & Cable

Model 892 894
Winch Capacity (2) 8,000 lb (2) 12,000 lb
Winch Type Worm Worm
Cable Specifications 3/8” x 100’ 6 x 19 I.P.S. 7/16” x 150’ 6 x 25 I.P.S.

Chassis Recommendations

GVWR 21,000 - 31,000 lbs. 21,000 - 31,000 lbs.
