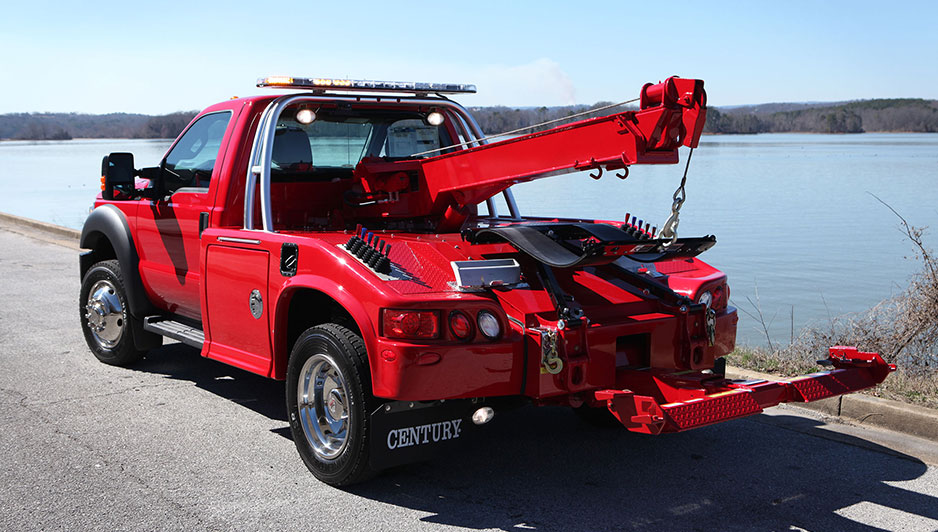

411 & 412

Light-Duty Conventional

After leading the industry for more than 40 years, the new Century line of light-duty towing and recovery units has once again raised the bar for quality, design and function.  The new adjustable-width modular bodies are available in carbon, steel,  aluminum, or the sleek and stylish composite.

More +

The low-profile recovery booms are fabricated from four plates of high-tensile steel to save weight without sacrificing strength.  For increased driver convenience, features such as tailboard L-arm storage, easy-access safety chain pockets and easy-to-operate dual control stations—along with Century's proven wheellift system—are just a few of the many reasons why you should contact your local Century distributor.

Features

Top of Page

Standard

  • Adjustable Width Modular Body, 88” or 94”
  • 60” Cab-to-Axle Steel Body
  • Drivers & Passenger Side Tool Compartments
  • Tailboard D-Rings
  • Tailboard Safety Chain Pockets
  • Wheel Lift Safety Chains - 5/16, Grade 70
  • 3-Way Pivoting L-Arm System
  • 4,000 lb Lightweight L-Arms
  • L-Arm Storage Pockets
  • Dual Boom & Wheel Lift Controls
  • Independent Wheel Lift Tilt
  • Winch Cable Tensioner(s) & Free Spool Handles
  • Mud Flaps
  • Federal Standard 108 Lighting

Optional

  • Aluminum Modular Body
  • Composite Modular Body (94” Wide Only)
  • Tunnel Box
  • Emergency Lighting
  • Tow Sling
  • Dress-up Packages
  • Trailer Hitch
  • PTO/Pump Options
  • Light Pylon
  • Aluminum Tubular Light Pylon (25” & 33”)
  • Fold Down Light Bar Brackets
  • Convenience Packages (Rails & Steps)
  • Dollies & Mounting Options
Units
US
Metric

Specifications

Boom

Boom Structural Rating (S.A.E.) Retracted 34° 16,000 lb
Boom Structural Rating (S.A.E.) Extended 34° 4,000 lb
Reach Past Tailboard Minimum Boom Angle 81 1/2”
Maximum Angle 48°
Boom Elevation Cylinder(s) Single
Maximum Hook Height 173 1/2”

Underlift

Distance from the Tailboard Retracted 35”
Distance from the Tailboard Extended 67”
Lift Capacity Full Extension 4,000 lb
Lift Capacity With Forks Not Applicable
Tow Rating 7,500 lb
Underlift Tilt +14° / - 16°

Winch Rating & Cable

Model 411 412
Winch Capacity 8,000 lb (2) 8,000 lb
Winc Type Worm Worm
Cable Specifications 3/8” x 100’ 6 x 19 I.P.S. 3/8” x 100’ 6 x 19 I.P.S.

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
