- Available brand
-

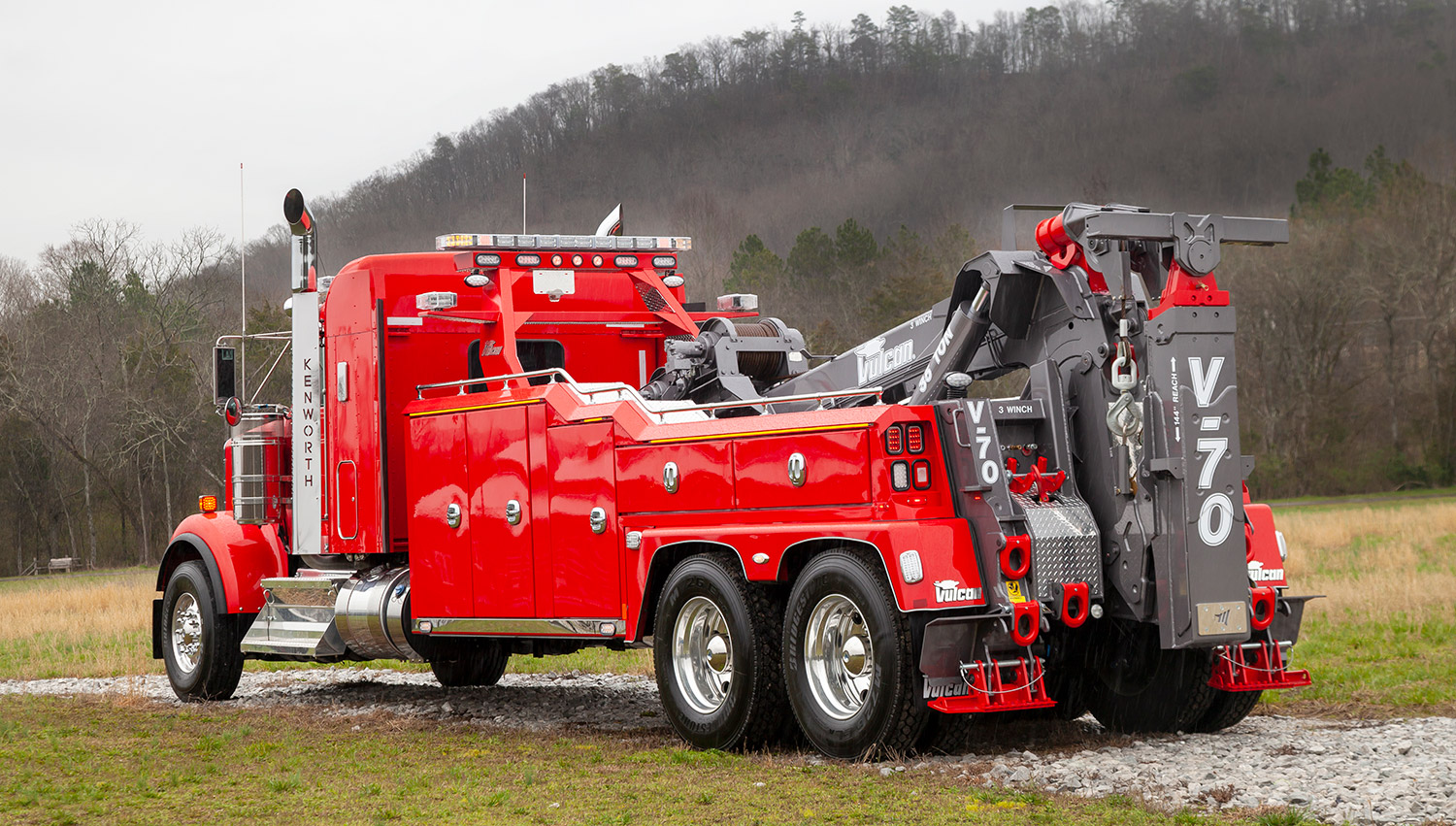

Vulcan V-70
- Boom
- 70,000 lbs.
- Underlift
- 35,000 lbs.
- Tow Rating
- 80,000 lbs.

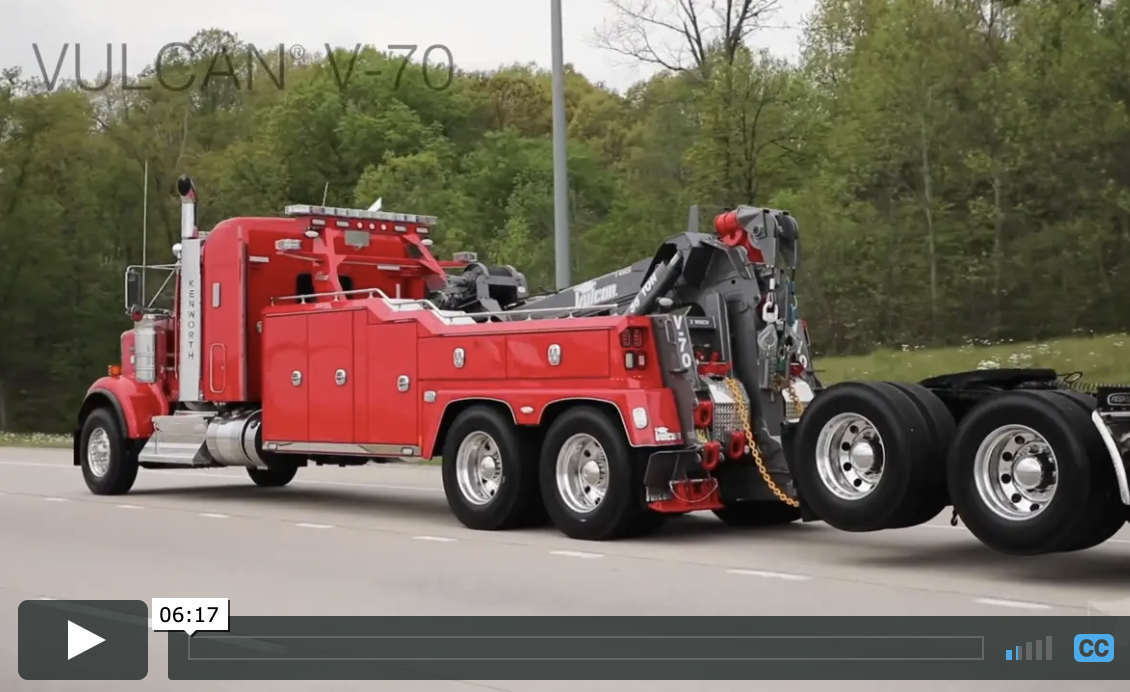

Vulcan V-70 Photos
For the right mix of power, performance and value, Vulcan's V-70 is the intelligent choice for heavy duty integrated towing and recovery equipment. Vital components are fabricated from high yield steel to minimize weight to allow for more legal payload while maximizing strength and durability. Now available with an optional 3rd winch, the V-70 now has even greater recovery capabilities.
The hydraulic components are engineered at the heart of the unit to provide the power to the winches, boom and underlift to handle the most demanding jobs. The patented double action tilt system is just one of the features that exemplifies Vulcan's superior design with the ability to tilt a full 16,000 lb under load. At Vulcan, we believe that your equipment is only as good as its weakest component, so we take a total design approach to assure your V-70 is the most intelligent choice you can make for years of trouble free service.
Features
Standard
- Dual Control Stations with Direct Link Activated Levers
- 12 FXN Wireless Remote Control
- Pressure Gauges
- Hour Meter
- Hydraulic Pump
- Independent Hydraulic Rear Spades
- Pavement Pads (n/a with Flipper Feet)
- Tailboard D-Rings
- Safety Chain in Rear Pockets
- Tailboard Fork & Tie-Down Chains
- Tailboard Recovery Anchors
- Air & Electric Hook Up
Boom
- Power Elevation
- Power Extension
- 360° Sheave Heads
- Cable Tie Backs
- Spherical Bearings in Main Boom
- Dual 2-Speed Planetary Winches
- Cable Tensioners
- Winch Air Free Spool
Underlift
- Patented Power Tilt / Hydraulic Fold
- King Pin Tow Plate
- 3-Stage Design
- Low Profile 70° Pivoting Heavy Duty Fabricated Cross Bar
- Low Profile Fork Holders
- Pivoting Spring Lift Adaptors
- Chain Hook End Caps
- 9 Sets of Cast Steel Forks:
3” Short, 3” Medium, 3” Tall
4.5” Short, 4.5” Medium, 4.5” Tall
Grab Axle Fork, 6” Short Offset
Round Axle Fork
Body
- Aluminum Modular Body w/Rubber Mounting Isolators
- LED Body Lighting
- LED Tool Compartment Lighting
- Gas Door Shocks
- Chrome Double Action Latches with Keyless Lock and Unlock
- Adjustable Shelves
- Lift Fork Storage
- Chain Storage
- Aluminum Tread-Plate Walkway
- Mud Flaps
Optional
- Air Shift PTO
- Additional Lighting
- Side Work Lights
- Chain Package
- Light Pylon
- 22,000 lb Under Boom Auxiliary Winch
- Euro Stinger—144”
- Endless Loop Sling Package
- Multi-Positional Flipper Feet
- Screw Pin Shackle Kit
- Rear Outrigger - Horizontal
- Spreader Bars
- Heavy Duty Tire Lift
- Tailboard Underlift Controls
- Tire Lift Storage Brackets
- 3 or 4 Drawer Toolbox
- Fork Risers
- Snatch Blocks
- Pintle Hook Attachment
- Wide Load Light Bar
- 5th Wheel Plate (requires Pintle Hook Attachment)
- Dual Camera & Monitor
- King Pin Attachment (requires Pintle Hook Attachment)
- Convenience Groups
- Trailer Ball Adapter (requires Pintle Hook Attachment)
- Aluminum Dress-Up Kits
- Additional Lift Forks
- Installation
- Underlift Light Kit (LED)
- Water Tank Kit
Specifications
Boom
Retracted 30° | 70,000 lbs. | |
---|---|---|
Extended 30° | 28,000 lbs. | |
Maximum Angle | 35° | |
Maximum Hook Height | 233” | |
Hydraulic Boom Extension | 120” |
Winch
Feature | Main Winch | Auxiliary 3rd Winch |
---|---|---|
Winch Capacity | 35,000 lbs. | 22,000 lbs. |
Winch Type | Dual Planetary Winch | Planetary Winch |
Cable Specifications | 3/4” x 200’ I.W.R.C. | 5/8" x 150' I.W.R.C. |
Underlift
Feature | V-70 Standard | V-70 Euro-Stinger |
---|---|---|
Fully Extended to C.L. of Forks | 16,000 lbs. @ 116” | 16,000 lbs. @ 144” |
Fully Retracted to C.L. of Forks | 35,000 lbs. @ 60” | 35,000 lbs. @ 67” |
Underlift Tilt | 18° | 18° |
Tow Rating | 80,000 lbs. | 80,000 lbs. |
Body
Feature | V-70 Tandem Axle | V-70 Tri Axle |
---|---|---|
Common Body Configuration | 160” C.B. | 180” C.B. |
Additional Body Configuration | 180” / 200 ” / 220” C.B. | 200” / 220 ” C.B. |
Chassis Recommendation
Front Axle | 13,200 lbs. |
---|---|
Rear Axle | 40,000 lbs. |
Clear C.A. / C.B. | 156” – 220” C.A. |
After Frame from Center of Rear Axle | 36” |
RBM | 3,000,000 in/lbs. |
