Century 7035

Boom
70,000 lbs.
Underlift
35,000 lbs.
Tow Rating
80,000 lbs.

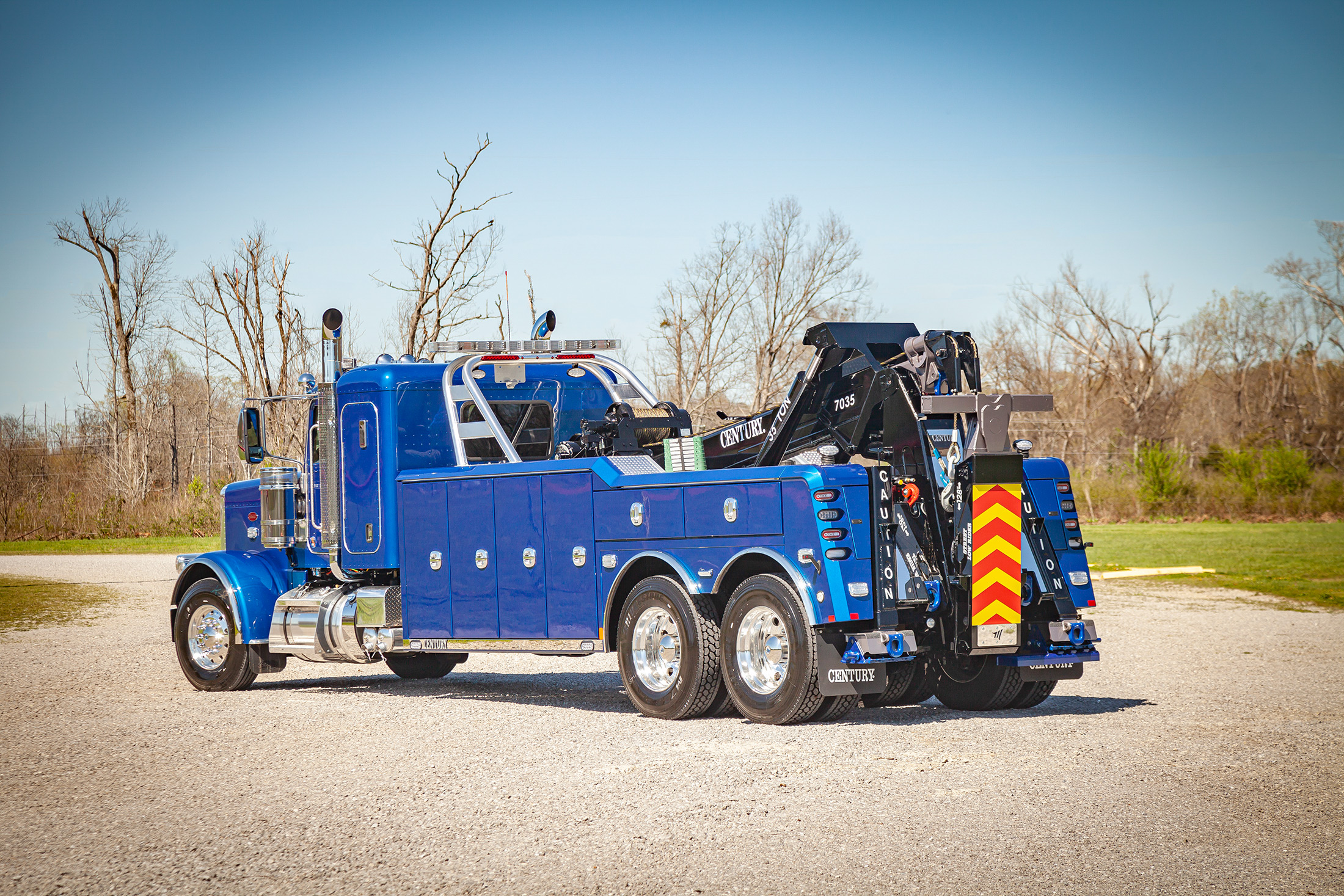

Century 7035 Photos

The 7035 is one of Century's most popular heavy-duty units. The underlift provides 128” of reach and incorporates a 35-Ton recovery boom with dual 35,000 lb winches that allows the 7035 to tackle the toughest lifting and recovery jobs. This makes it extremely versatile for everyday heavy-duty towing and recovery.

Features

Standard

  • Dual Control Stations
  • 14 FXN Wireless Remote
  • Hydraulic Pump
  • Diagonal Hydraulic Rear Spades w/ Flipper Feet
  • Pressure Gauges & Hour Meter
  • MVEC Power Distribution System & Switch Panel
  • Tailboard D-Rings
  • Low Pull D-Ring Kit
  • Safety Chains in Rear Pockets with Roller
  • Quick Connect Air Supply & Electric Hook Ups
  • Flipper Feet Grater Blades

Boom

  • Power Elevation & Power Extension
  • 360° Sheave Heads
  • Cable Tie Backs
  • Cable Tensioners
  • Winch Air Free Spool
  • Dual 2-Speed Planetary Winches

Underlift

  • Power Tilt & Power Extension
  • Hydraulic Fold
  • 3-Stage Design
  • Low Profile 70° Pivoting Heavy Duty Fabricated Cross Bar
  • Low Profile Fork Holders
  • Pivoting Spring Lift Adaptors
  • Chain Hook End Caps
  • 9 Sets of Cast Steel Forks
           3” Short, 3” Medium, 3” Tall
           4.5" Short, 4.5” Medium, 4.5” Tall
           Grab Axle Fork,  6” Short Offset,
           6" Medium Rear Axle Fork

Body

  • 96” Wide Aluminum Modular Body
  • Rubber Mounting Isolators
  • LED Body Lighting
  • LED Tool Compartment Lighting
  • Chrome Double Action Latches with Keyless Lock and Unlock
  • Gas Door Shocks
  • Adjustable Shelves
  • Lift Fork Storage
  • Chain Storage
  • Tailboard Fork & Chain Storage
  • Aluminum Tread-Plate Walkway
  • Mud Flaps

Optional

  • Air Shift PTO
  • Tailgate Underlift Controls
  • Additional Body Lengths
  • Crossover Tunnel Box
  • LED Body Strip Lamps
  • Body Lighting Strobe Kit
  • Stainless Dress-Up Kits
  • Aluminum Tubular Light Pylon
  • 3 and 7 Drawer Tool Boxes
  • Offset Fork Holder Extensions
  • Fork Riser Brackets
  • Chain Hook Slide Adapter
  • Pintle Hook Attachment
  • 5th Wheel Plate
  • King Pin Attachment
  • Trailer Ball Adapter
  • Heavy Duty Tire Lift (13K)
  • Tire Lift Storage Brackets
  • Additional Lift Forks
  • Ground Penetrating Plate
  • Backlit Controls
  • Chain Package
  • Endless Loop Sling Package
  • Spreader Bars
  • Screw Pin Shackle Package
  • Snatch Blocks
  • Snatch Block Storage Bar or Rack
  • Light Bar
  • LED Work & Hook-Up Lighting
  • LED Swivel Work Lights
  • Coach LowRider Underlift (7035/9055)
  • PTO Override
  • Wireless Wide Load Light Bar
  • Dual Rear Camera & Monitor
  • Hydraulic Extendable Rear Outriggers
  • 24”, 30”, 36”, or 48” Saddle Tunnel Box
  • Shelf Kit for 30”, 36” & 48” Tunnel Boxes

Specifications

Boom

Retracted 30° 70,000 lbs.
Extended 30° 22,000 lbs.
Boom Angle 40°
Maximum Hook Height 249”
Hydraulic Boom Extension 130”

Winch

Winch Capacity 35,000 lbs.
Winch Type Dual 2 Speed Planetary Winch
Cable Specifications 3/4” x 200’ I.W.R.C

Underlift

7035* 7035 Coach / Low Rider
Extended Underlift 16,000 lbs. @ 128” 16,000 lbs. @ 138”
Retracted Underlift 35,000 lbs. @ 54” 35,000 lbs. @ 59”
Tilt Arc 20° 20°
Tow Rating 80,000 lbs. 80,000 lbs.

*Based on 42" chassis frame height. Retracted distance taken with fork holders flipped inward.
*Measurement & Specifications include the Optional "Street" Lowrider.

Chassis Recommendations

7035 7035 (SP 850-XP)
Front Axle 13,200 lbs. 14,600 lbs.
Rear Axle 40,000 lbs 40,000 lbs.
Standard Body 156” C.B. 204” C.A.
Optional Body 180” C.B. Tandem 204” C.B. Tandem, Tri Axle
After Frame from Center of Rear Axle 40” 40”
R.B.M. 3,000,000 in/lbs. 3,500,000 in/lbs.
