Heavy Duty Integrated Vulcan SP 850-XP
SP 850-XP Gallery
Share
Contact

Contact Us

SP 850-XP

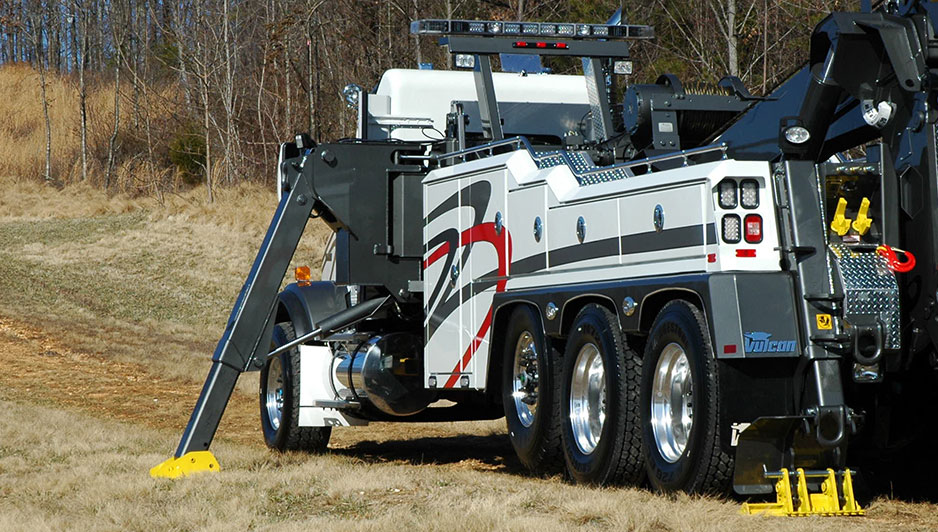

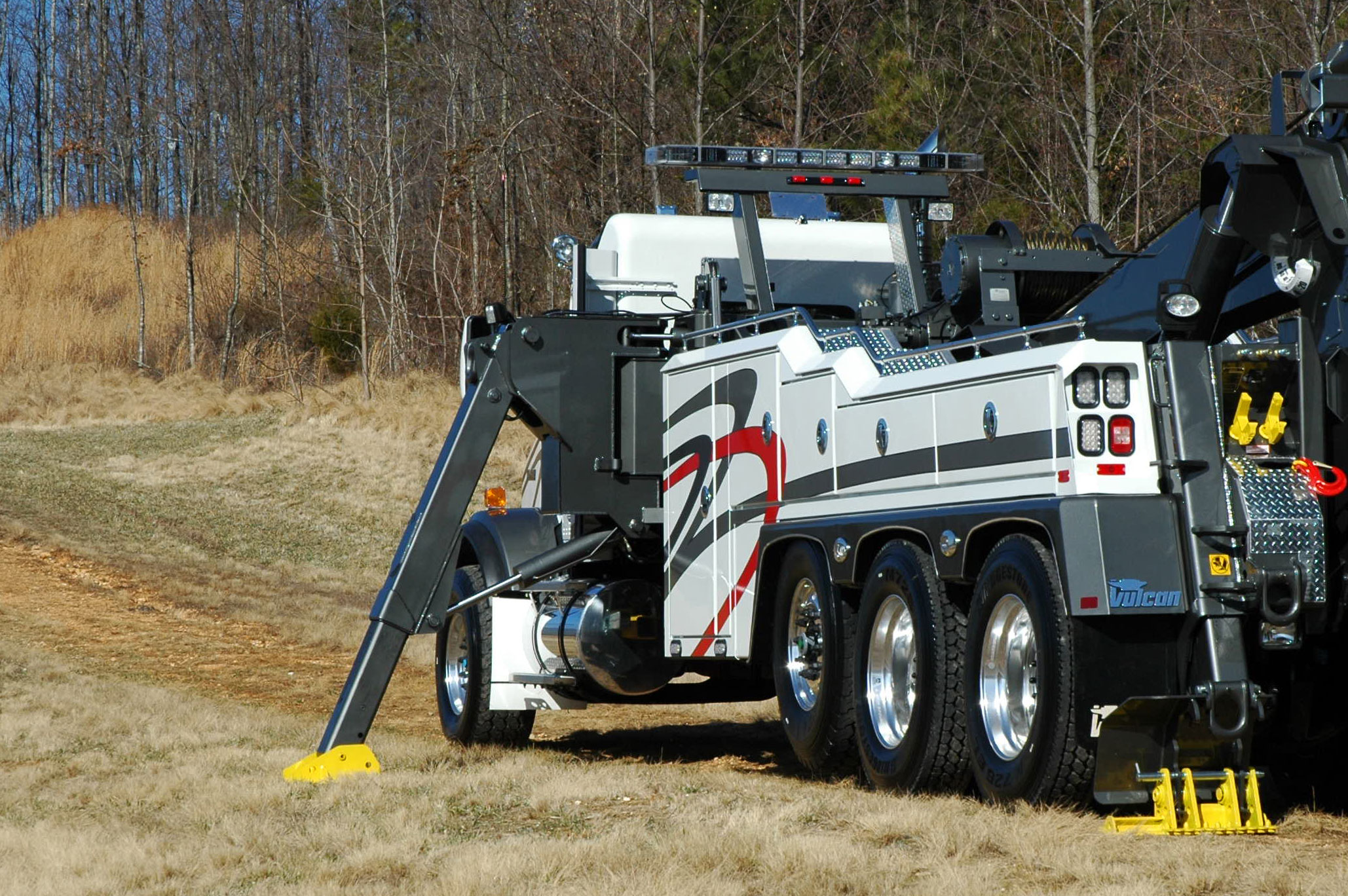

Hydraulic Pivoting Stiff-Leg

All recovery operators have experienced the problems of having traffic backed up with a casualty down in a ravine and the law enforcement not wanting to block lanes of traffic. The SP 850-XP option can solve these types of situations with a pivoting hydraulic stiff-leg to handle tough side pull recoveries and eliminate the need to block more lanes of traffic than necessary.

Features

SP 850-XP Recovery Unit

The SP850-XP is offered in two models using the Vulcan V-70 and the Vulcan V-100.  The SP850-XP's standard features will be the same when ordering the recovery unit with either the V-70 or V-100.  Refer to the V-70 or V-100 brochure for specifications on those units.

Standard

  • (2) 35,000 lb 2 Speed Planetary Winches
  • Air Free Spool (1 per winch)
  • Air Tensioner (1 per winch)
  • Directional Sheave Head (1 per leg)
  • Recovery D-Ring (1 per leg)

Optional

  • Rear Stabilizers with Horizontal Extension
  • Side Pull Stabilizer (For conventional rear jacks)
  • SP Leg Spade Attachment
  • Recovery Lights
  • Additional D-Rings

Optional Spade Attachment

For increased holding power in the dirt or ground, the optional spade attachment provides more bie during those difficult recoveries.  The D-Ring can also be pinned to the spade attachment for additional rigging combinations.

Units

Specifications

Chassis Recommendations

Contacting the factory is highly recommended when making a chassis with the various XP models.  A minimum of 228” CT is required. A front axle of 18,000 lb to 20,000 lb along with tri-axles is highly recommended. All specifications are subject to change without notice.

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
