9055-9055XL

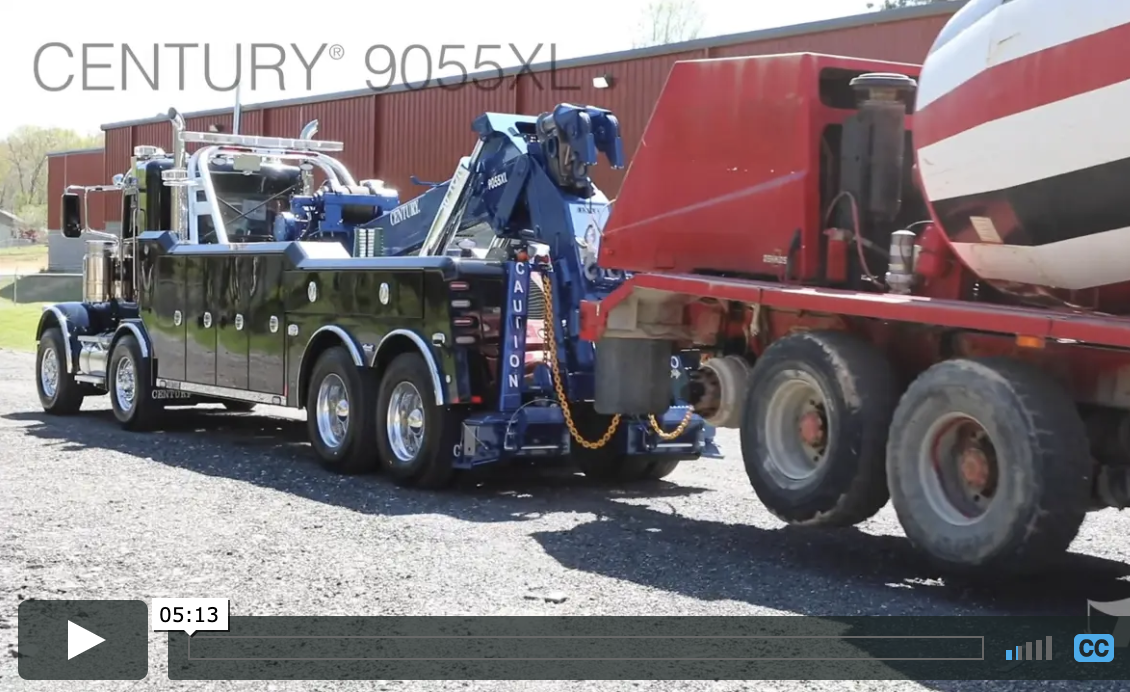

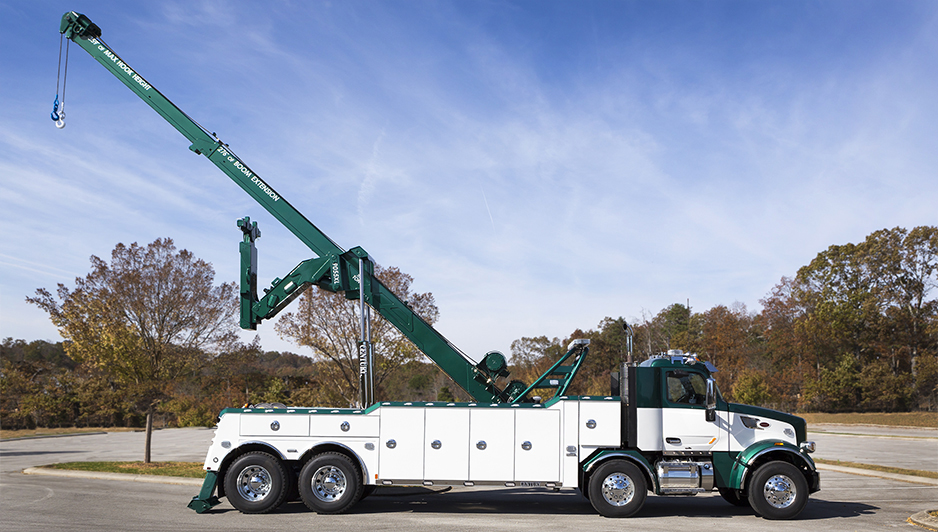

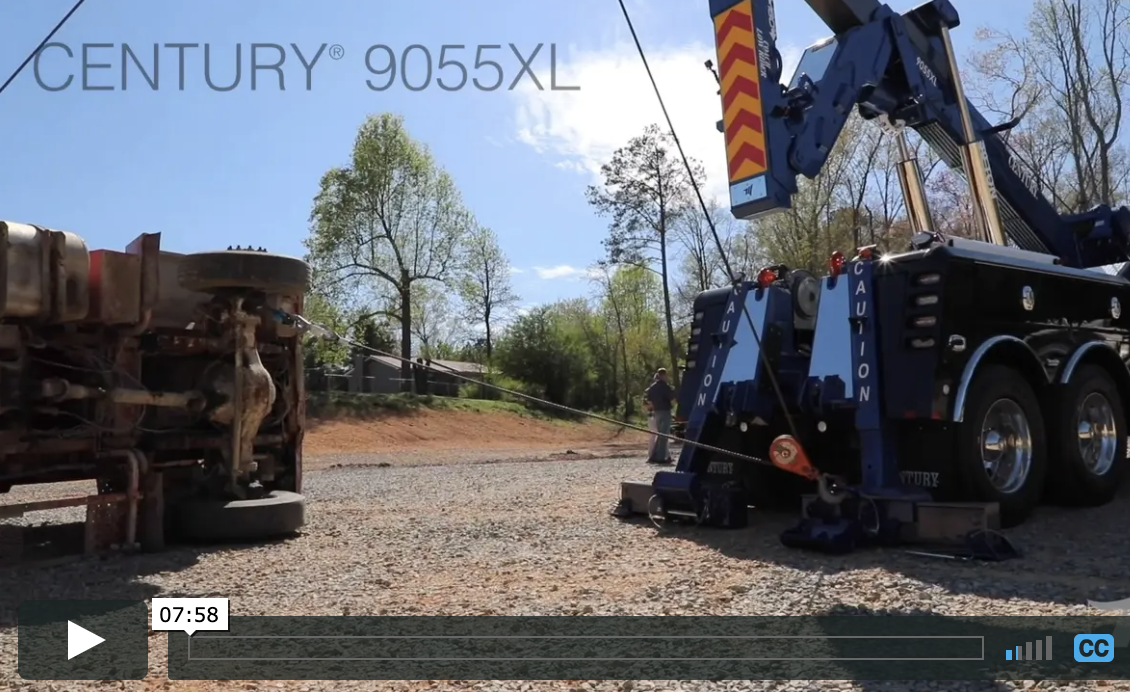

The 9055 is Century's largest capacity integrated towing and recovery unit. With a 50-ton, 3 stage recovery boom, and dual 50,000 lb winches, the 9055 is ideal for heavy recovery work along with the ability to tow a wide variety of vehicles from mixers to packers and buses with its 136” of reach. The 9055XL version provides 60 inches more length to the recovery boom for a maximum length of 276 inches, and an impressive 359-inch hook height. This improvement was achieved all while maintaining the same impressive 18,000 lb. boom rating when fully extended and at a 39-degree boom angle.
Features
Standard
- Dual Control Stations
- Pressure Gauges & Hour Meter
- Hydraulic Pump
- Diagonal Hydraulic Rear Spades w/Flipper Feet
- Safety Chains in Rear Pockets with Roller
- Quick Connect Air Supply & Electric Hook Ups
- MVEC Power Distribution System & Switch Panel
- MMO Interface (7035/9055 only)
- Tailboard D-Rings
- Low Pull "D" Ring Kit
- Flipper Feet Grater Blades
- "D" Rings (Tailboard Mount, STD on 7035 & 9055)
- LowRider Underlift (7035 & 9055)
- Upgrade to 7035 Underlift (5230)
Boom
- Power Elevation & Power Extension
- 360° Sheave Heads
- Cable Tie Backs
- Cable Tensioners
- Winch Air Free Spool
- Dual 2-Speed Planetary Winches (N/A for 4024)
Underlift
- Power Tilt & Power Extension
- Hydraulic Fold
- 3-Stage Design
- Low Profile 70° Pivoting Heavy Duty Fabricated Cross Bar
- 8 FXN Wireless Remote Control w/Charging/Docking Station
- Low Profile Fork Holders
- Pivoting Spring Lift Adaptors
- Chain Hook End Caps
- 14 FXN Wireless Remote with Charging/Docking Station (7035/9055 only) (8 FXN on 4024/5130/5230)
- 9 Sets of Cast Steel Forks:
3” Short, 3” Medium, 3” Tall
4.5" Short, 4.5” Medium, 4.5” Tall
Grab Axle Fork, 6” Short Offset,
6" Medium Rear Axle Fork
Body
- 96” Wide Aluminum Modular Body
- Rubber Mounting Isolators
- LED Body Lighting
- LED Tool Compartment Lighting
- Chrome Double Action Latches with Keyless Lock and Unlock
- Gas Door Shocks
- Adjustable Shelves
- Lift Fork Storage
- Chain Storage
- Tailboard Fork & Chain Storage
- Aluminum Tread-Plate Walkway
- Mud Flaps
Optional
- Air Shift PTO
- Tailgate Underlift Controls
- Additional Body Lengths
- Crossover Tunnel Box
- PolyBilt Body Option
- MMO Interface (STD 7035/9055)
- LED Body Strip Lamps
- Body Lighting Strobe Kit
- Stainless Dress-Up Kits
- Aluminum Tubular Light Pylon
- 3 and 7 Drawer Tool Boxes
- Offset Fork Holder Extensions
- Fork Riser Brackets
- Chain Hook Slide Adapter
- Pintle Hook Attachment
- 5th Wheel Plate
- King Pin Attachment
- Trailer Ball Adapter
- Heavy Duty Tire Lift (13K)
- XHD Tire Lift (25K) (7035/9055)
- Tire Lift Storage Brackets
- Chain Washdown Compartment
- Additional Lift Forks
- Ground Penetrating Plate
- Backlit Controls
- Chain Package
- Endless Loop Sling Package
- Spreader Bars
- Screw Pin Shackle Package
- Snatch Blocks
- Snatch Block Storage Bar or Rack
- Light Bar
- LED Work & Hook-Up Lighting
- LED Swivel Work Lights
- Coach LowRider Underlift (7035/9055)
- PTO Override
- Wireless Wide Load Light Bar
- Dual Rear Camera & Monitor
- Hydraulic Extendable Rear Outriggers
- 24”, 30”, 36”, or 48” Saddle Tunnel Box
- Shelf Kit for 30”, 36” & 48” Tunnel Boxes
- 9055-B (2-Stage Boom, 35K Winches, MMO Delete)
Specifications
Boom
| 9055 (2 Stage) |
9055 (3 Stage) |
9055 XL |
|
|---|---|---|---|
| Boom Structural Rating (S.A.E.) Retracted 30° | 50 Ton | 50 Ton | 50 Ton |
| Boom Structural Rating (S.A.E.) Extended 30° | 30,000 lbs. | 18,000 lbs. | 18,000 lbs. |
| Boom Angle | 39" | 39° | 39° |
| Maximum Hook Height | 259” | 299" | 359" |
| Hydraulic Boom Extension | 144" | 216" | 276" |
Winch
| 9055 | SP 850-XP | |
|---|---|---|
| Winch Capacity | 50,000 lbs. | 35,000 lbs. |
| Winch Type | Dual Planetary Winch (2 Speed) |
Dual Planetary Winch (2 Speed) |
| Cable Specifications | 3/4” x 250’ I.W.R.C. |
5/8” x 200’ I.W.R.C. |
Underlift
| 9055* | 9055 Coach (Low Rider) | |
|---|---|---|
| Extended Underlift | 17,000 lbs. @ 143” | 18,000 lbs. @ 160” |
| Retracted Underlift | 55,000 lbs. @ 55” | 55,000 lbs. @ 62” |
| Tilt Arc | 17° | 17° |
| Tow Rating | 80,000 lbs. | 80,000 lbs. |
*Based on 42" chassis frame height. Retracted distance taken with fork holders flipped inward.
*Measurement & Specifications include the Optional "Street" Lowrider.
Chassis Recommendations
| 9055 | 9055 (SP 850-XP) |
9055 XL |
|
|---|---|---|---|
| Front Axle | 14,600 lbs. | 20,000 lbs. | 16,000 lbs. |
| Rear Axle | 40,000 lbs. | 40,000 lbs. | 46,000 lbs. |
| Clear C.A. or C.B. | 156” | 204” | 180" |
| After Frame from Center of Rear Axle | 40” | 40” | 40" |
| RBM | 3,000,000 in/lbs. | 3,500,000 in/lbs. | 3,500,000 in/lbs. |
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
