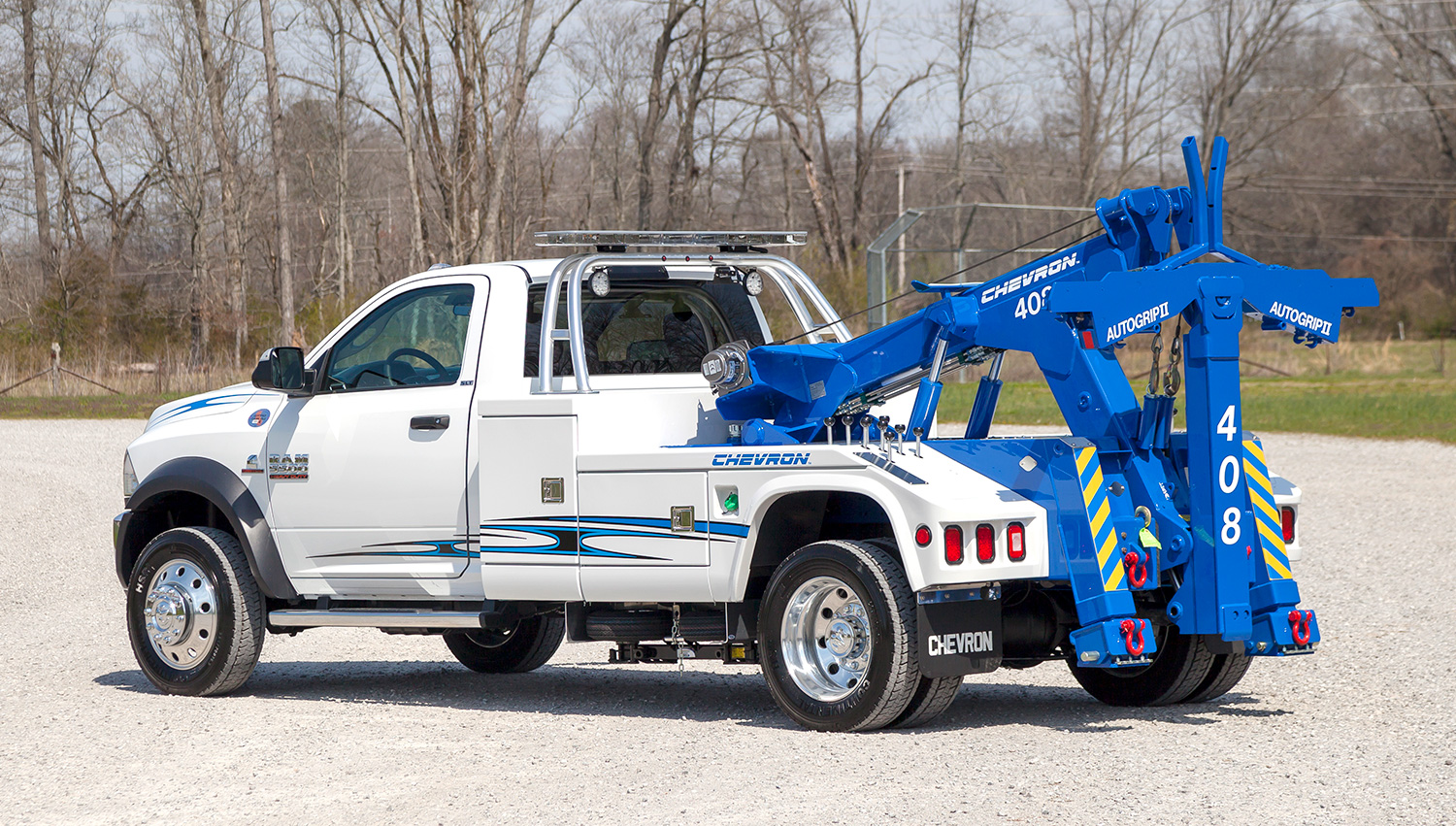

Chevron 408

Boom Capacity
16,000 lbs.
Winch Rating
8,000 lbs.
Tow Rating
8,000 lbs.

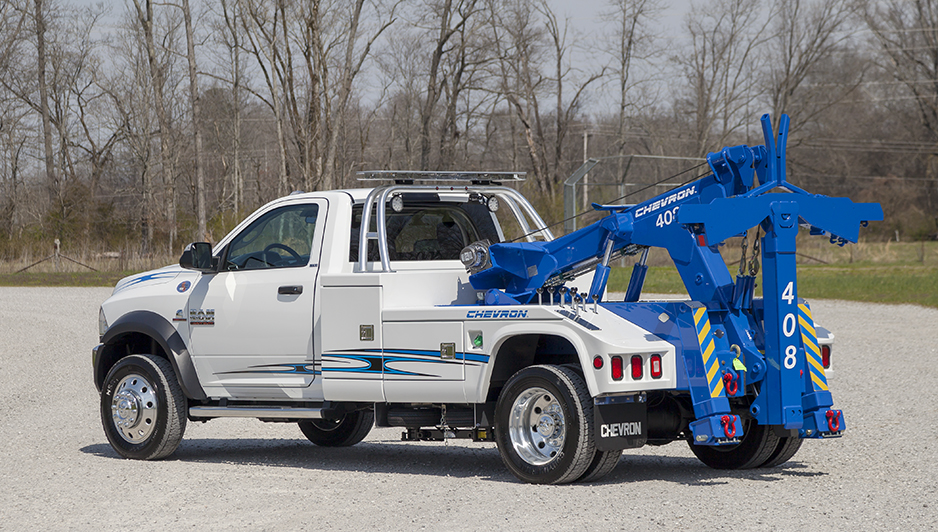

Chevron 408T & 408TA Photos

See all 18 photos

Chevron believes in providing you with quality towing equipment designed and built to meet your specific needs and the Model 408 is just one example of Chevron’s commitment to you.

The Model 408 integrated boom and wheel lift is available with manual "L" arms or Chevron’s popular AutoGrip II™ wheel lift system that allows the retainer arms to hydraulically rotate from fully closed to an open approach position and then rotate, tightly gripping the vehicle tires. Other options include single or dual 9,000 lb planetary winches, a hydraulic telescoping recovery boom, conventional carbon steel or the new lighter weight aluminum modular body with stylish composite rear quarter fender panels.

Features

Standard

  • 60" Steel Body with 2 Compartments Per Side (86" Wide)
  • Dual Control Stations
  • Single or Dual 8,000 lb. Planetary Winches
  • Winch Cable Tensioners
  • Winch Free Spool Handles
  • Safety Chains, 5/16 Grade 70
  • Safety Chain Storage Pockets
  • Drop-In 4,000 lb. L Arms
  • L-Arm Storage Pockets
  • Low Pull “D” Rings
  • Federal Standard 108 Lighting
  • Mud Flaps

Optional

  • 60” Aluminum Body (94" Wide)
  • Auto Grip™ II Wheel Lift
  • In-Cab Controls
  • Hydraulic Pump
  • Hydraulic Rear Jacks with Flipper Feet
  • PTO or Clutch Pump
  • 1 Set of 3” Lift Forks (n/a with Auto Grip Option)
  • 1 Set of Fork Receivers (n/a with Auto Grip Option)
  • 24” Tunnel Box
  • Emergency Lighting
  • Additional Lifting Attachments
  • Switch Panel
  • Aluminum Dress-Up Kit
  • 3" Fender Flares (for steel body)
  • Work Lights
  • Light Pylon
  • Wide Load Light Bar

Specifications

Boom

Retracted 16,000 lbs.
Maximum Angle 30°
Extended 8,000 lbs.
Maximum Reach Past Tailboard (408T) 63”

Wheel-Lift

Extended Reach 70”
Extended or Retracted with L-Arms 4,000 lbs.
Positive Tilt 20°
Negative Tilt 10°
Tow Rating 8,000 lbs.
Auto Grip™ II 4,000 lbs.

Chassis Recommendations

GVWR 15,000 - 22,000 lbs.
Cab to Axle 60” or 84”
Maximum Frame Height 36”
Minimum Frame RBM 450,000 in/lbs. (each rail)

Winch Rating & Cable

Winch Type Planetary
Rating (first layer of drum) each Winch 8,000 lbs.
Diameter and Length (each Winch) 3/8” x 100’
