Express Series

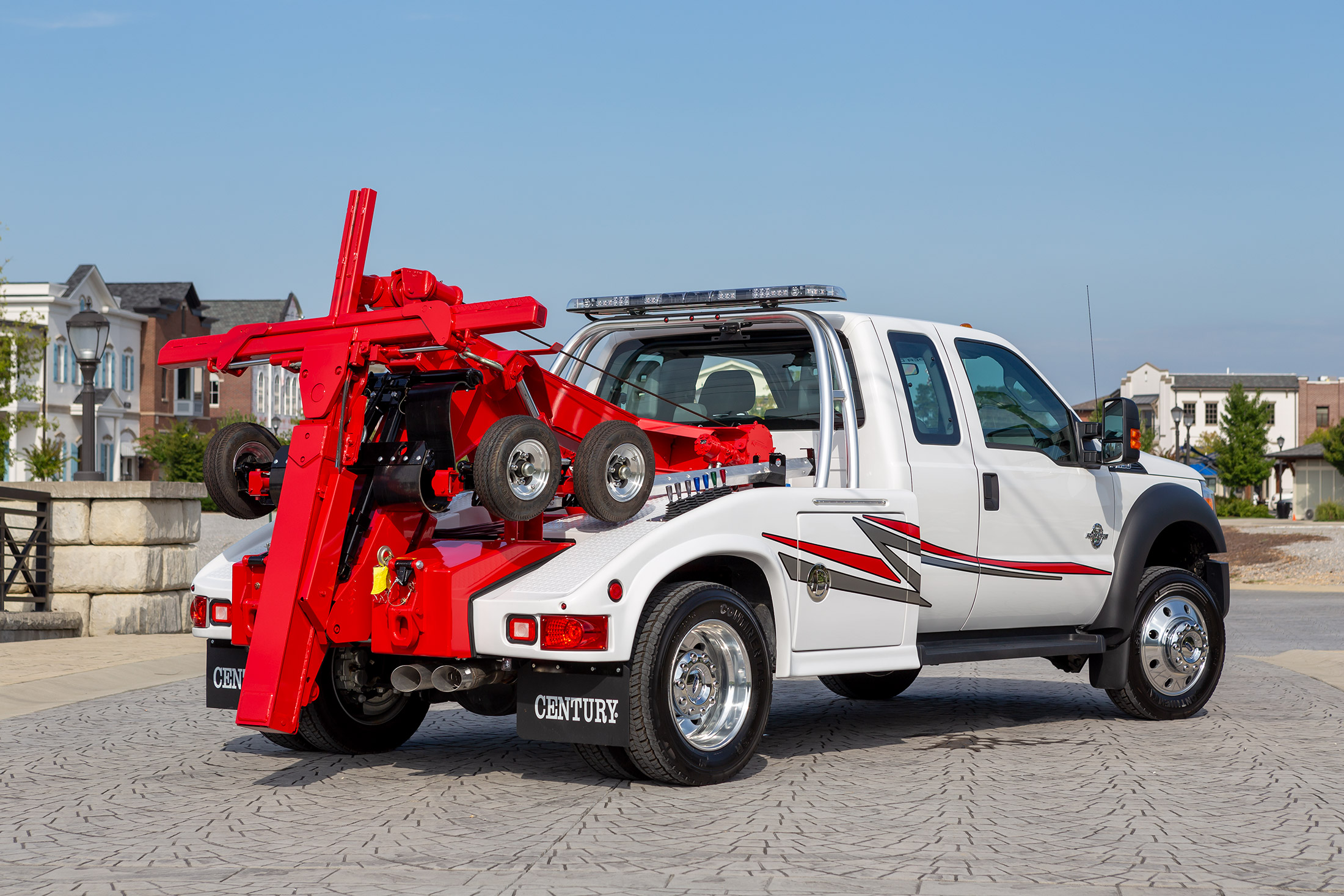

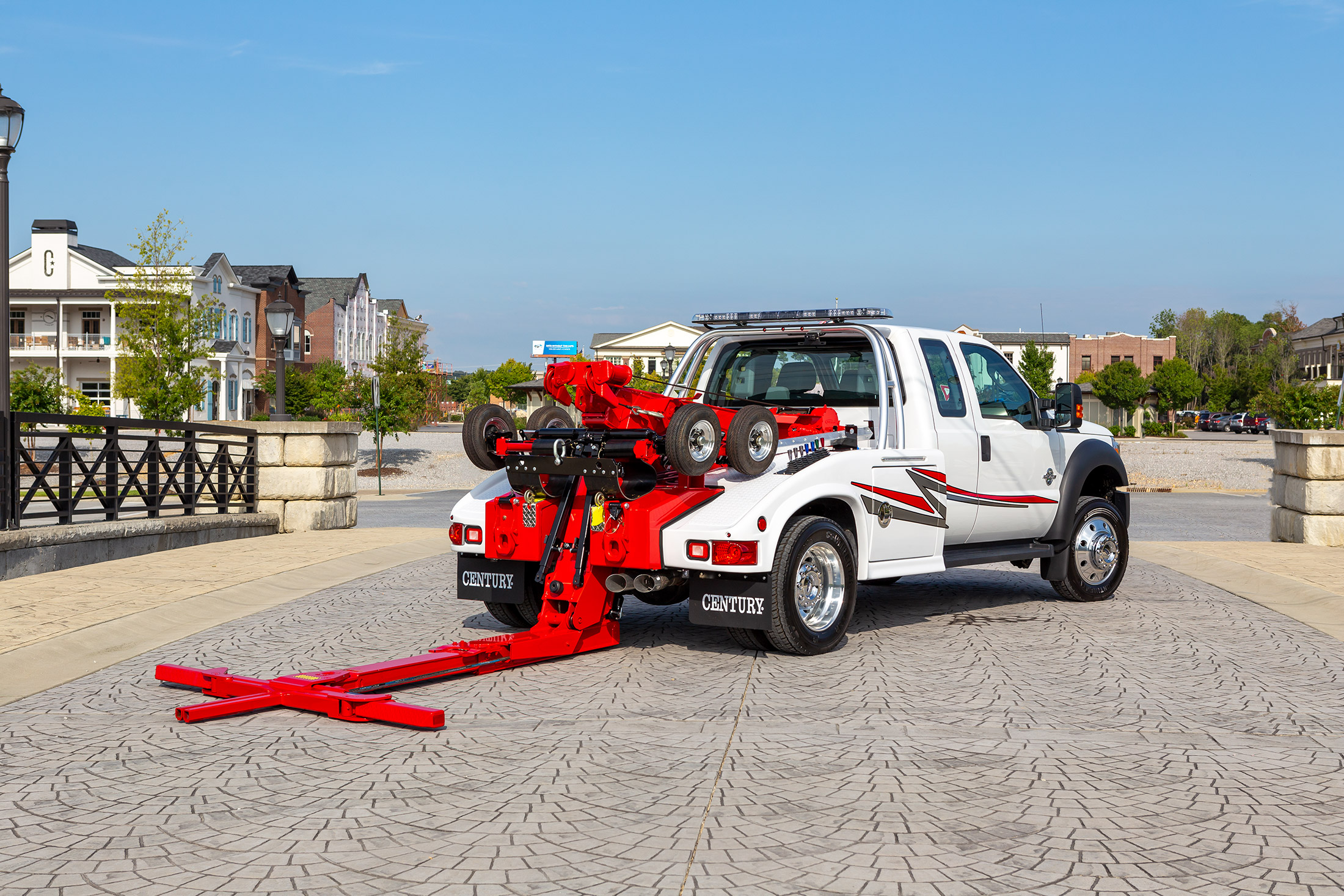

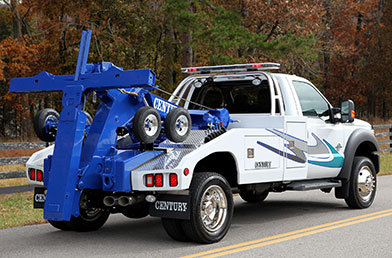

The Century Express is your answer to high volume towing the easy way. With Century's auto-loading, low profile crossbar design, you can easily pick up low clearance automobiles without getting out of your truck. The sloped tail board design gives you superior visibility when hooking up. The 311 and 312 Express expands your vehicle capabilities with an extendable boom for light recovery work. Visit your local Century Distributor to see how the Century Express surpasses the competition.

Features

Top of Page

Standard

  • 60" C.A. SteelModular Body
  • Adjustable Modular Body, 88" or 94"
  • Integrated Boom & Wheel Lift System
  • Hydraulic Auto-load Crossbar
  • In-Cab Remote Control Pendant on Cord with 8 Functions
  • Dual Manual Controls
  • 1 Pair of Safety Straps
  • Safety Chains in Rear Pockets
  • Tool Compartment, Left & Right Hand Side
  • Power Boom Elevation with Holding Valve
  • 8,000 lb Variable Speed Hydraulic Winch (Dual Winches on the 312)
  • 3/8” x 100’ Cable Assembly
  • 360° Directional Boom End Swivel
  • Winch Cable Tensioner & Free Spool Handles
  • Federal Standard #108 Lighting
  • Wiring Harness with Junction Box
  • Mud Flaps
  • Tailboard Mounted D-Rings
  • Back-Up Alarm
  • Power Fold for Stinger Storage
  • Self Centering Crossbar with 3” Pivot Pin
  • Roller Guided Hose Tracking System

Optional

  • Clutch Pump
  • Aluminum, Composite or PolyBody Modular Body
  • Tow Sling (311 & 312 only)
  • Motorcycle Attachment
  • 24” Tunnel Toolbox for 84” C.A.
  • Steel Light Pylon
  • Aluminum Tubular Light Pylon
  • Go-Jak Mounting Brackets
  • Dolly Bunks
  • Trailer Ball Adapter
  • Emergency Lighting
  • Work Lights
  • Front Push Bumper
  • Other Popular Century Options
Units
US
Metric

Specifications

Boom—301 Express

At Boom Swivel 16,000 lbs.
Maximum Boom Elevation 33°

Boom—311/312 Express

Lift Height at Maximum Elevation Retracted 78”
Lift Height at Maximum Elevation Extended 111”
Reach Past Tailgate, Minimum Elevation Extended 50”
Reach Past Tailgate, Maximum Elevation Extended 22”
Boom Rating at Boom Swivel Retracted 16,000 lbs.
Boom Rating at Boom Swivel Extended 4,000 lbs.

Wheel-Lift

Retracted Distance from Tailgate at Normal Tow Position 52”
Extended Distance from Tailgate at Normal Tow Position 85 1/2”
Maximum Hydraulic Extension 33 3/4”
Lift Rating 4,000 lbs.
Tow Rating 7,500 lbs.

Winch Rating & Cable

Rating (first layer of drum, each winch) 8,000 lbs.
Diameter and Length (each winch) 3/8” x 100’
Type 6 x 19 Hemp Center, IPS

Chassis Recommendation

GVWR 15,000 – 19,000 lbs.
Minimum Cab to Axle (Clear) 60”
Maximum Cab to Axle (Clear) 84”

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
