3212 G2

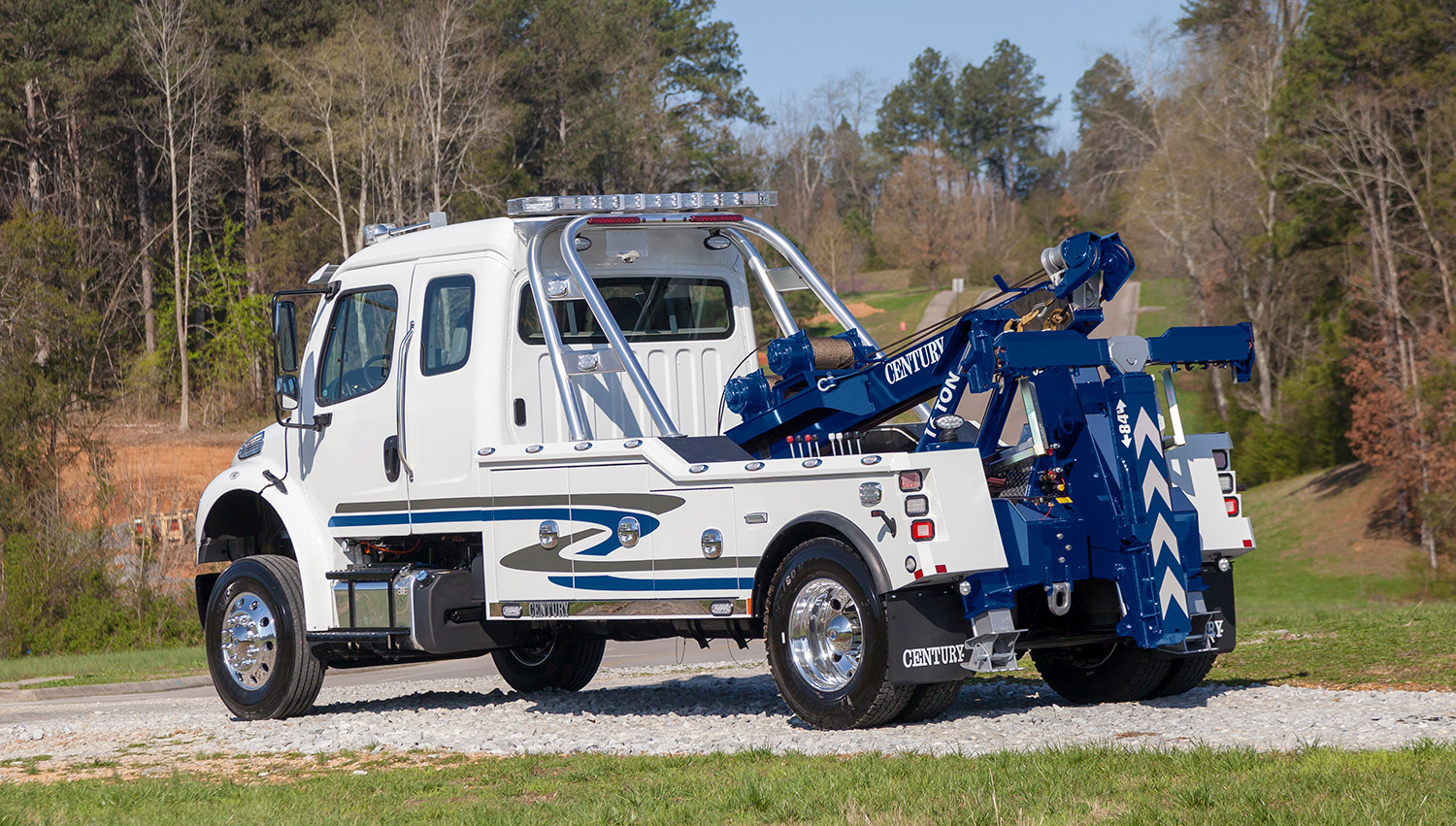

This could be one of the most versatile units in your fleet. The Century 3212 G2 is designed with the capability of towing a wide range of vehicles, from passenger cars, vans, city tractors and motor homes.
With multi-positional rear jacks, dual 15,000 lb planetary winches and a 16-ton recovery boom the 3212 G2 is more than just another tow truck. This unit was designed to handle a wide variety of recovery jobs, including side pulls. At last, a medium-duty towing and recovery unit with many of the same features found in Century's heavy-duty models.
Features
Standard
- 84” Aluminum Modular Body with Rubber Mounting Isolators
- 3 Compartments Per Side
- Manual Controls - Driver's & Passenger Side
- Lanyard Controls for Underlift & Boom on the Passenger Side
- Chrome Double Action Latches with Keyless Lock/Unlock
- 4,000 lb & 6,000 lb L-Arms with Pivoting Receivers
- Dual 15,000 lb Planetary Winches
- Winch Air Free Spool
- Cable Tensioners
- 4 Sets of Lift Forks & Fork Holders
- Safety Chains in Tailboard
- Gas Door Shocks
- Federal Standard 108 Lighting
- LED Body Lighting
- 360 Degree Sheave Head
- Low Profile Crossbar
- Hydraulic Rear Jacks with Flipper Feet
- Tailboard "D" Rings
- Air & Electrical Hookups
- LED Tool Compartment Lighting
- Cable Tiebacks
- Mud Flaps
Optional
- 120” or 138” CA Low Profile CX2 Body
- Airshift PTO
- Light Bar
- In-Cab Controls
- Additional Lifting Attachments
- Installation
- Underlift Tailboard Controls
- Wireless Remote
- Work Lights
- Light Pylon (Steel or Aluminum)
- Wide Load Light Bar
- 24”, 36”, or 48” Aluminum Saddle Box (N/A with optional CX2 Body)
- Chain Kit
- Manual Extension Rear Outriggers
Specifications
Boom
| Boom Rating | Retracted | 32,000 lbs. |
| Boom Rating | Extended | 12,000 lbs. |
| Maximum Angle | 36° | |
| Maximum Hook Height | 160” | |
| Maximum Reach Past Tailboard at 30° | 54” |
Underlift
| Fully Retracted | With Forks | 12,000 lbs. |
| Fully Extended | With Forks | 8,500 lbs. |
| Retracted or Extended with L-Arms | 6,000 lbs. / 4,000 lbs. | |
| Reach to Center of Fork Holder at Normal Tow Position | 84” | |
| Positive Tilt | 20° | |
| Negative Tilt | 10° | |
| Tow Rating | 32,000 lbs. |
Winch Rating & Cable
| Rating (First Layer, Each Winch) | 15,000 lbs. | |
| Diameter and Length (Each Winch) | 1/2” x 150’ | |
| Type | 6 x 37 IWRC |
Chassis Recommendation
| GVWR | 26,500 lbs. – 31,000 lbs. | |
| Minimum Cab to Axle (Clear) | 84" | |
| Maximum Cab to Axle (Clear) | 138” | |
| Maximum Frame Height | 40” | |
| Maximum Tire Size | 275/70 R 22.5 |
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
