20 & 30 Series
Features
Standard
- Consolidated Tilt & Full Length Mounting Frame
- Full Length Nylatron Slide Pads
- Painted w/Black Acrylic Urethane
- Driver's & Passenger Side Chain Trays
- Two Front Safety Chains
- Positive Lock-Down System
- Hydraulic Winch & Cable
- Dual Illuminated Controls
- Winch Clutch Release
- Back-Up Alarm
- Bed Anti-Tilt Feature
- Hydraulic Pump
- Dual Lift Cylinders
- Mud Flaps
- One Extension Cylinder
- Federal Standard 108 Lighting
Standard—20 Series Only
- Winch Cable Tensioner
- Six Tie-Down Points (2 Front, 4 Rear)
- Independent Hydraulic Wheel Lift
- Slide in L-Arms
- Safety Chains
- Wheel Straps
Standard—30 Series Only
- 20,000 lb Planetary Winch with Air Free-Spool
- 6” on Center Crossmember Spacing
- 12 Tie-Down Points (4 Per Side, 4 Rear)
- Steel Tube Cab Protector
- Hydraulic Dock Stabilizer
Optional
- Removable Side Rails
- Wire Mesh in the Cab Protector
- Outside Stake Pockets w/Rub Rails & Pipe Spools
- Aluminum Chain Trays (for Stationary Cab Protector)
- Tool Compartments
- Locking Chain Rack
- PTO
- Drop Wheel Wells on Deck
- Smooth Floor in Lieu of Diamond Plate
- Switch Panel
- 1/4” Steel Floor
- Work Area & Emergency Lighting
- Apitong Wood Floor
- Optional Color on Top of Deck & Side Rails
- Winch Cage
- Dual Key Slots Down Center or Deck Edge
- Wired or Wireless Winch Remote
- Additional D-Rings
- Winch Bumper Stops
- Stationary Cab Protector (Requires 10” Additional CA)
Optional—20 Series
- Steel Tube Cab Protector
- Independent Hydraulic Stabilizer in Lieu of Wheel Lift
- 6” On Center Crossmember Spacing
- Heavy Duty Build-Up Kit (Includes Additional Crossmembers & 5” Lift Cylinders)
- 12,000 lb Worm Gear Winch
- 12,000 lb or 20,000 lb Planetary Gear Winch
- Trailer Ball Kit for Independent Wheel Lift

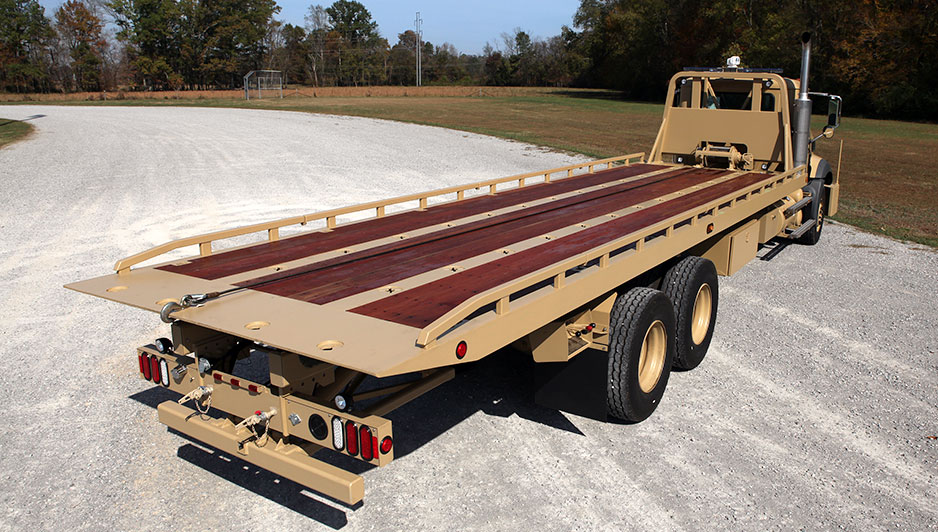

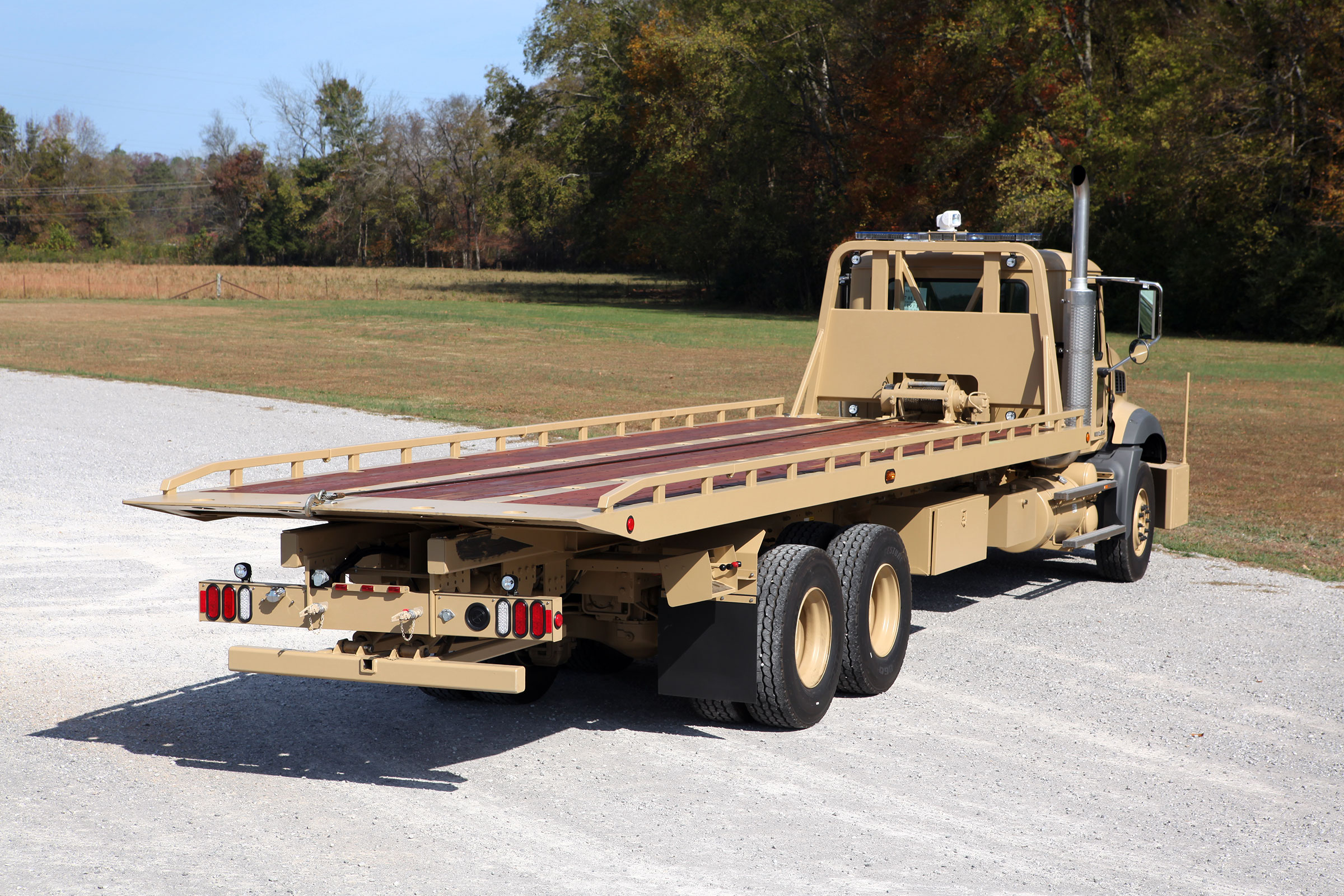

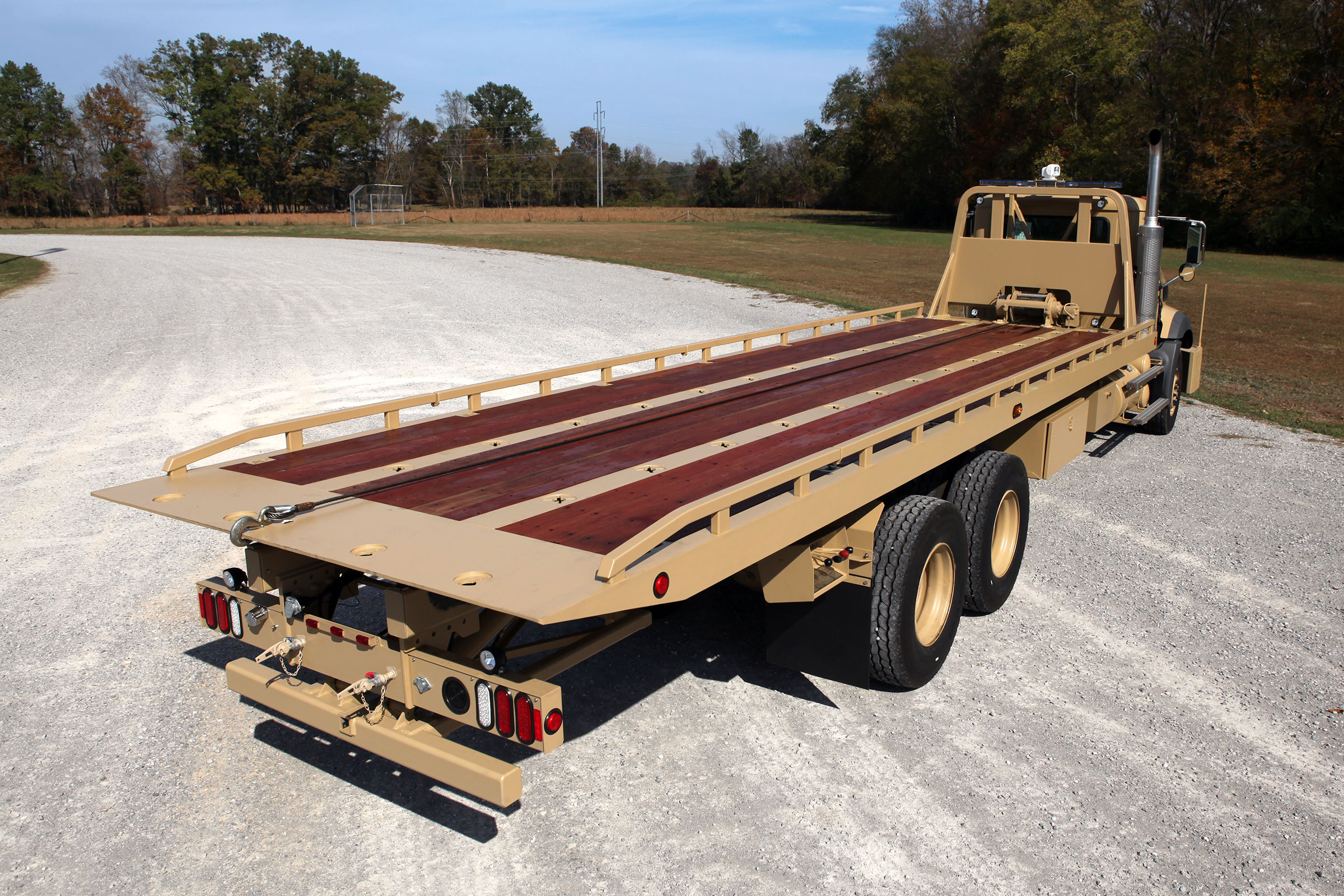

Century's 20 & 30 series decks are available with an optional Apitong wood floor, in place of the standard diamond steel floor plate. Optional dual row key slots down the center of the floor, as well as key slots and lashing rings along the deck edge, also available.
Specifications
Carrier
| Component | 20 Series | 30 Series |
|---|---|---|
| Load Rating | 20,000 lb | 30,000 lb |
| Platform Length | 24’, 26‘, 28’, 30’ | 24’, 26‘, 28’, 30’ |
| Platform Thickness | 3/16” | 3/16” |
| Platform Width (Outside) | 102” | 102” |
| Platform Width (Inside) | 98” | 98” |
| Platform Mainbeam | 6” I-Beam | 8” I-Beam |
| Platform Crossmembers | 2” x 4” Cor-ten Steel | 2” x 4” Cor-ten Steel |
| Crossmember Spacing | 8” on Center | 6” on Center |
| Platform Sides | 7” x 4” Angle w/ 24” C/C Pockets | 7” x 4” Angle w/ 24” C/C Pockets |
| Subframe | 5” x 4” x 3/8” Tube | 7” x 4” x 3/8” Tube |
| Rear Pivot | 1 Piece 2” Diameter | 1 Piece 2” Diameter |
| Winch (First Layer) | 8,000 lb Worm Gear | 20,000 lb Planetary Gear |
| Cable | 3/8” x 50’ | 9/16” x 75’ |
| Power Lift Cylinders | 4 1/2” x 32” Stroke | 5” x 32” Stroke |
| Extension Cylinder | 4 1/2” x 120” Stroke | 5” x 120” Stroke |
| Wheel Lift Rating | 3,500 lb | Not Applicable |
| Optional Tow Bar Rating | 5,000 lb | Not Applicable |
Chassis Recommendations—20 Series Single Axle
| Minimum GVRW | 50,000 lb | |
| Minimum C.A. (Clear) | 24’ | 166” (174” with Lift Axle) |
| Minimum C.A. (Clear) | 25' | 170" (178” with Lift Axle) |
| Minimum C.A. (Clear) | 26’ | 182” (190” with Lift Axle) |
| Minimum C.A. (Clear) | 27' | 194” (202” with Lift Axle) |
| Minimum C.A. (Clear) | 28’ | 206”-214" |
| Minimum C.A. (Clear) | 29' | 218"-224" |
| Minimum C.A. (Clear) | 30’ *** | 224"-234” |
| Minimum Frame Height | 39" - 43" | |
| Minimum Frame RBM | 24' - 28' Deck Length | 1,800,000 in-lb |
| Minimum Frame RBM | 29' - 30' Deck Length | 2,100,000 in-lb |
Chassis Recommendations—20 & 30 Series Tandem Axle
| Minimum GVWR | 50,000 lb | |
| Minimum C.B. (Clear) | 24’ | 156"-158" ** |
| Minimum C.B. (Clear) | 25' | 166"-168" ** |
| Minimum C.B. (Clear) | 26’ | 174”-176" |
| Minimum C.B. (Clear) | 27' | 182"-186" |
| Minimum C.B. (Clear) | 28’ | 190”-198" |
| Minimum C.B. (Clear) | 29' | 198"-206" |
| Minimum C.B. (Clear) | 30’ *** | 206"-214” |
| Frame Height | 39” – 43” | |
| Minimum Frame RBM (Each) Rail Tandem Axle | 20 Series | 2,500,000 in-lb |
| Minimum Frame RBM (Each) Rail Tandem Axle | 30 Series | 3,000,000 in-lb |
| Minimum Frame Length Behind Center of Rear Axle | 60” |
Inside platform width applies to optional removable rails.
** Requires Engineering Approval
*** Check state and local road restrictions for maximum vehicle lengths allowed.
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
