40 Series

Platform Capacity
40,000 lbs.
Platform Length
26’ – 30’
Tow Rating
30,000 lbs.

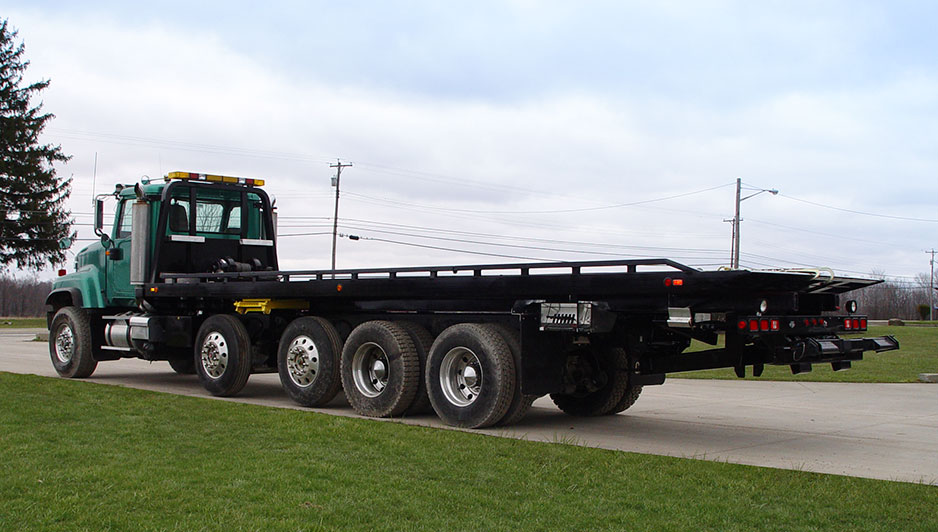

Chevron 40 Series Photos

See all 8 photos

Features

Standard

  • 102” Wide Body
  • 1/4” Smooth Floor Plate (Steel Floor)
  • 4” x 3” Structural Tube Crossmembers on 8” Centers
  • Floor Level Sides
  • Heavy Duty Approach Plate
  • Full Length Subframe
  • Fixed Position Stabilizer
  • Tri-Axle Configuration
  • Illuminated Dual Controls
  • 15,000 lb Planetary Upright Winch with 1/2” x 75’ Cable
  • Air Free Spool Winch
  • 24 GPM Direct Mount Pump
  • Body Lock
  • Mudflaps
  • Federal Standard 108 Shock Mounted Lighting
  • 10 Body Marker Lights
  • Water Resistant Junction Boxes for Wire Harness Connection
  • Lubrication Fittings on all Pivot Points
  • 6 Chain Locks
  • Mechanical Anti-tilt
  • Inboard Tilt Cylinders
  • Front Left and Right Chain Trays
  • BackUp Alarm
  • Cable Tensioner
  • Black Body Paint
  • Tow Light Plug
  • Pilot Operated Holding Valves On Tilting and Lifting Functions
  • Two Safety Chains

Optional

  • Removable Rails
  • Welded Open Rail Sides
  • Floor Level Sides with Stake Pockets
  • Trailer Style Rubrails
  • Additional Chain Locks
  • 1/4” Deck Plate Floor
  • 1 1/4” Apitong Hardwood Floor
  • Steel Floor Overlay on Wood
  • 20,000 lb Planetary Upright Winch
  • 30,000 lb Planetary Upright Winch
  • Air Tensioner and Regulator
  • Winch Guard Bulkhead
  • Heavy Duty Cab Protector
  • PTO
  • Retractable Ladder
  • Aluminum Tool Box
              (33” L x 18” H x 18” D)
  • Aluminum Tool Box
              (49” L x 18” H x 18” D)
  • Aluminum Tool Box
              (65” L x 18” H x 18” D)
  • Factory Installation
  • Factory Paint Other Than Black
  • Hydraulic Rear Stabilizer
  • Combination Underlift/Hydraulic Rear Stabilizer
  • Galvanized Subframe
  • Wired Remote Control
  • Radio Remote Control
  • Cab Protector Window Screen
  • Cab Protector Window Grid
  • Lockable Chain Racks
  • Wheel Pockets with Removable Aluminum Covers

Accessories

  • Bar Light
  • Work Lights
  • Switch Panel
  • Frame Forks for Underlift Crossbar
  • Frame Fork Storage Rack
  • Underlift Pintle Hitch
  • Stabilizer Mounted Pintle Ball Hitch
  • Magnetic Tow Lights
  • J-Hook Chains
  • Front Hook-Up Chain
  • Mudflaps

Specifications

Platform

Body Width 102” Outer Deck
Body Extension 120”
Wheel Lift Reach 65”
Control Valve Sectional, 20 GPM, 2000 PSI
Oil Reservoir 24 Gallons
Oil Filter (Immersable) 250 PSI, 25 GPM, 10 Microns
Pump 24 GPM
Body Rating * 40,000 lbs. Evenly Distributed

Underlift

Lift Rating—Extended 10,000 lbs.
Tow Rating 30,000 lbs.
L-Arms 6,000 lbs.
Forks 10,000 lbs.

Chassis Recommendations

Minimum GVWR - 60,000 lbs.
Tri-Axle Configuration
Tag Axle - 52” on Center from Drive Axle
After Frame 54” to 57” from Center of Trunion
Accessible PTO Opening
Maximum Frame Height - 44 Inches
Minimum Frame Height - 39 Inches
Frames Under 39 Inches - Consult Factory
Minimum Frame RBM Each Rail 3,000,000 in/lbs
Rear Axle Suspension Must Support Truck Frame Behind Rear-Most Axle
Usable Cab-To-Bogie 26’ 174"-176"
Usable Cab-To-Bogie 27’ 182”-186"
Usable Cab-To-Bogie 28’ 190”-198"
Usable Cab-To-Bogie. 29’ 198”-206"
Usable Cab-To-Bogie 30’ 206”-214"

Miller Industries reserves the right to improve or upgrade its products without obligation to modify previously manufactured units.
Patents and Patents Pending.
