16 Series Multi-Deck LCG®

Platform Capacity
16,000 lbs.
Platform Length
24’ – 30’

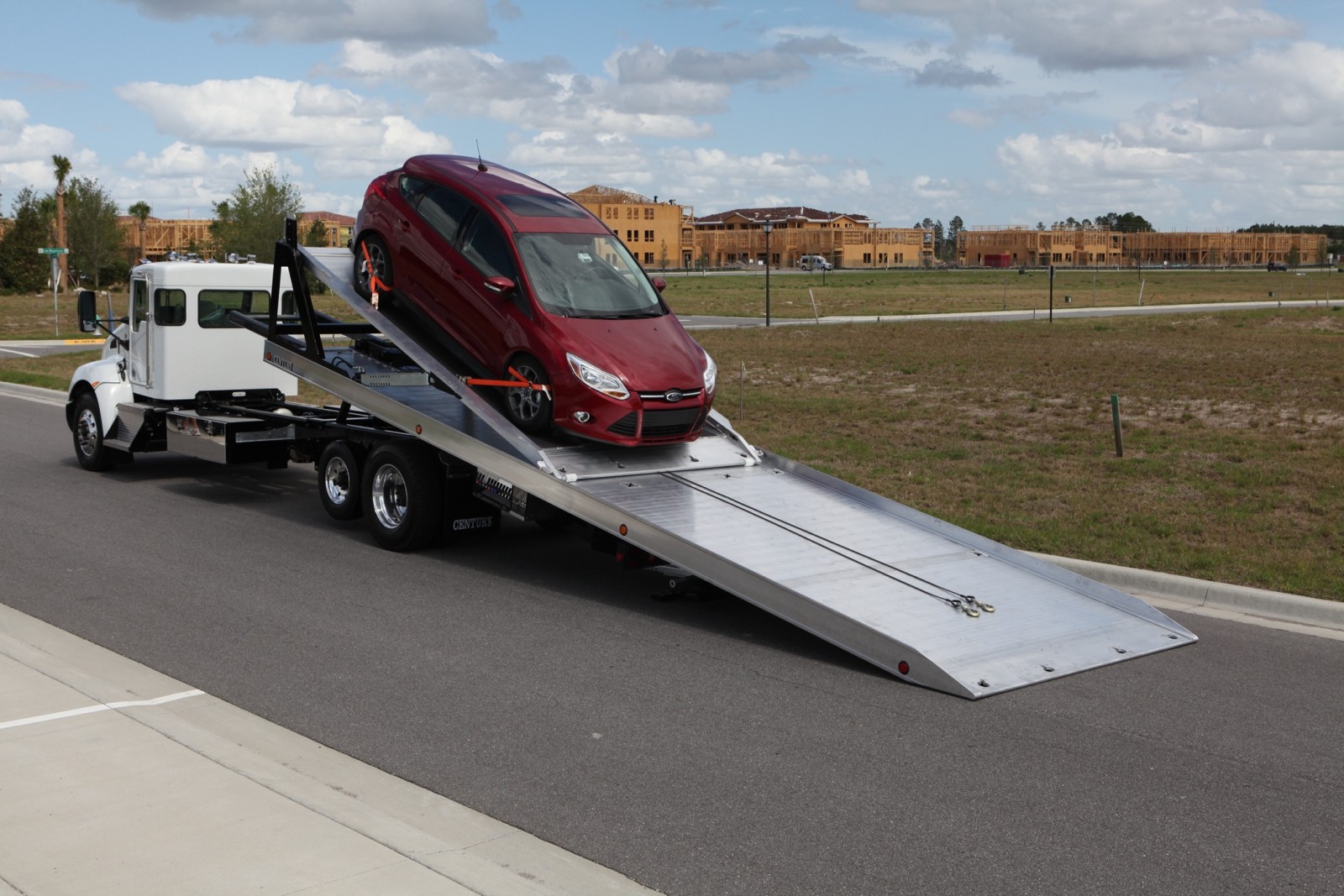

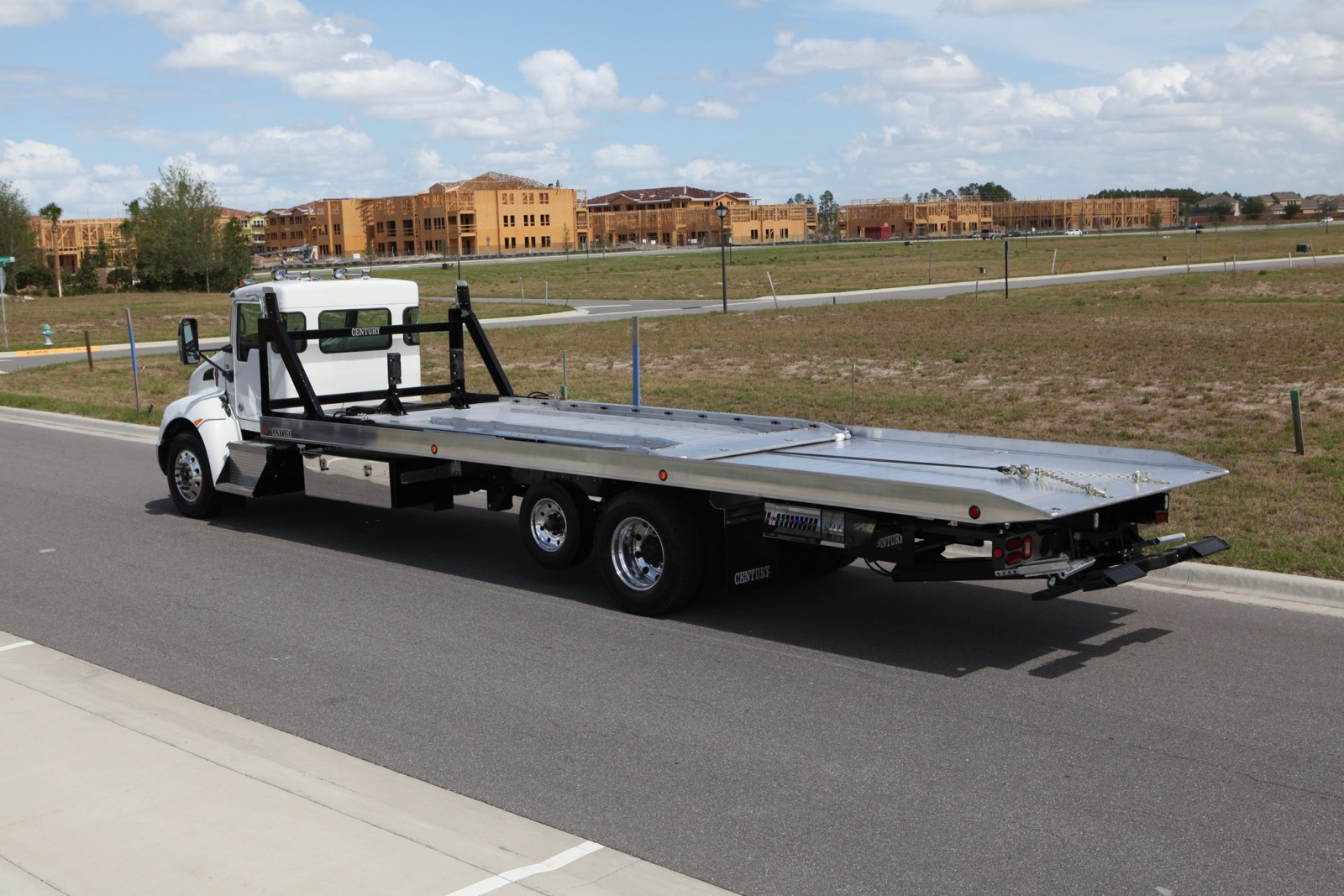

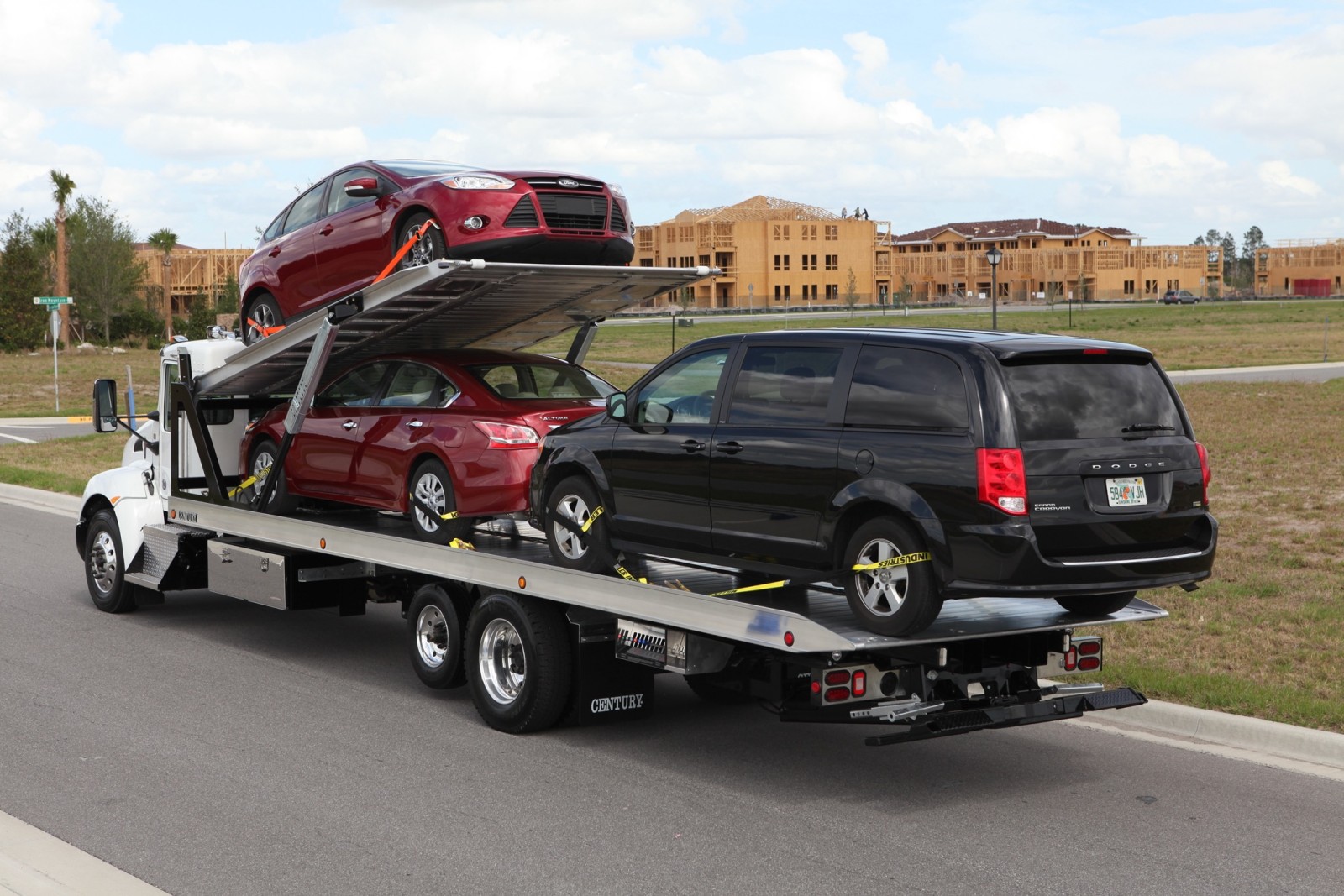

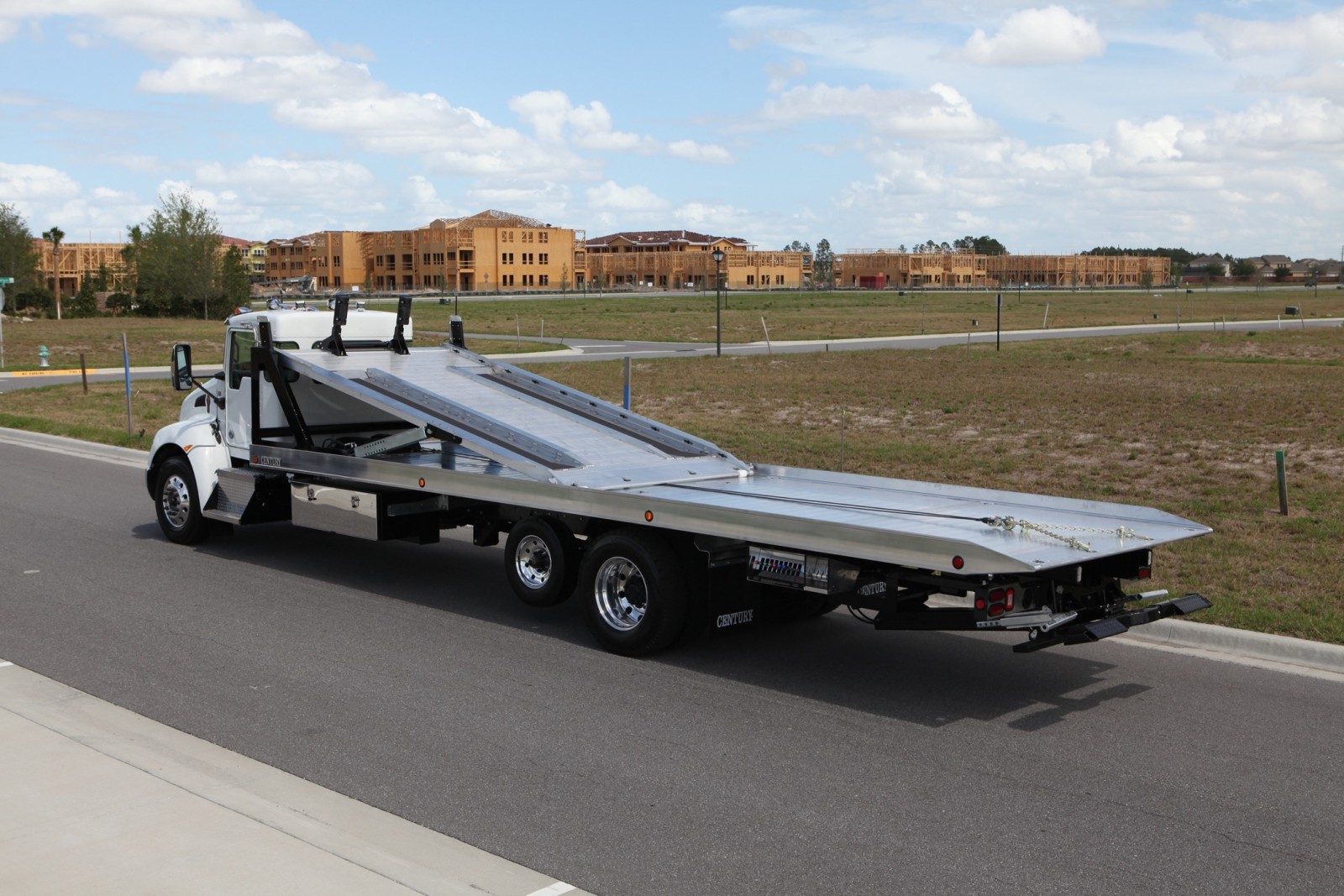

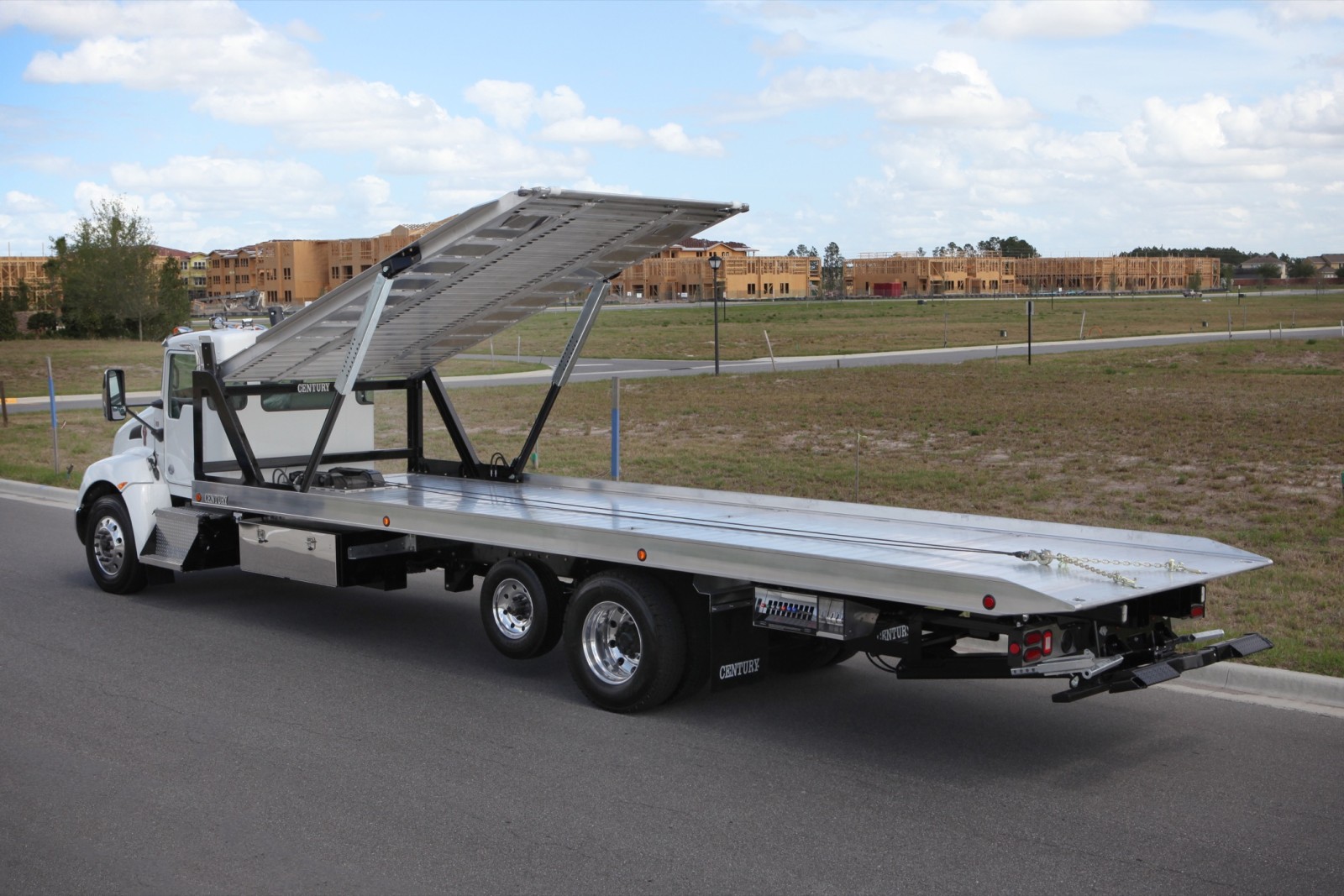

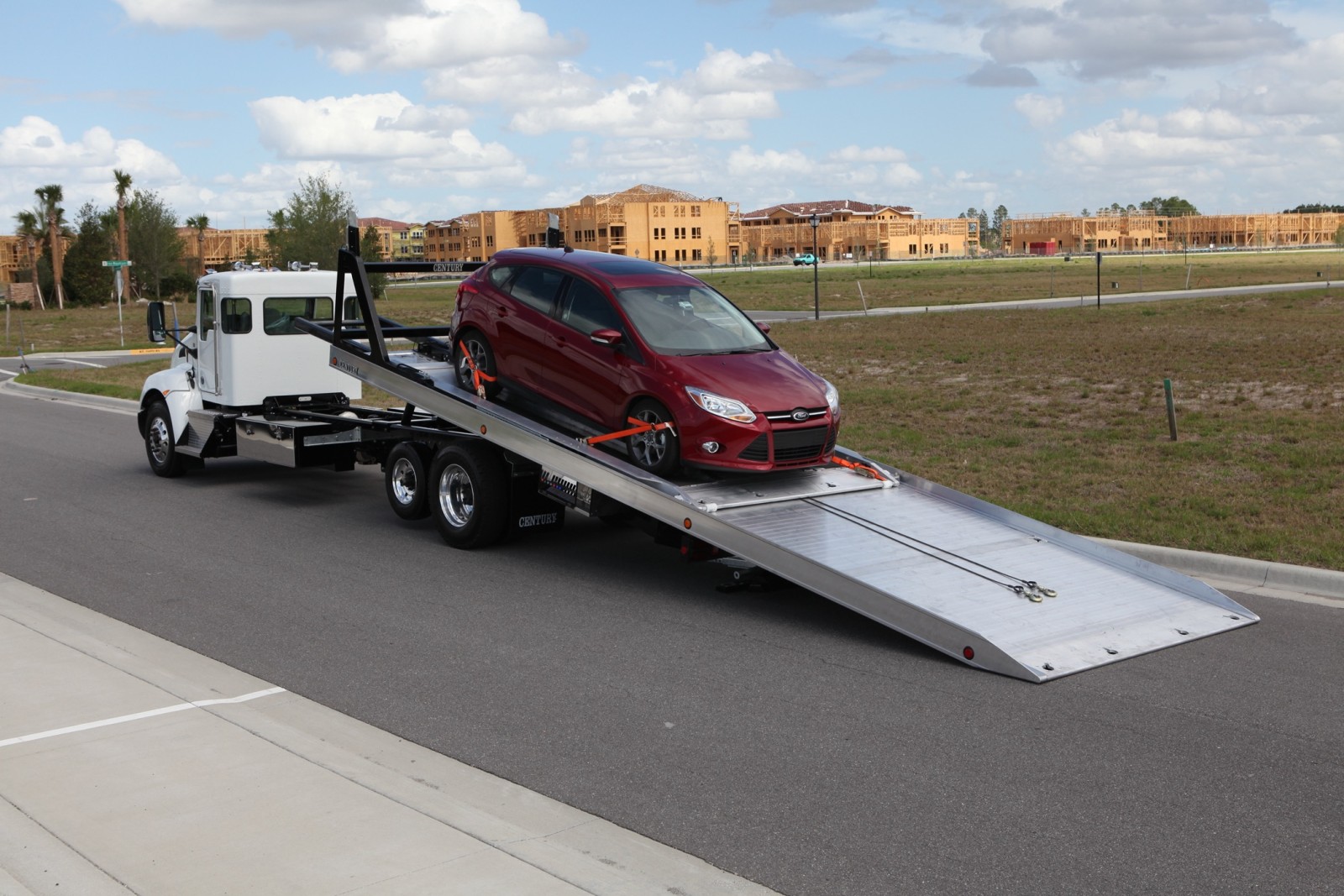

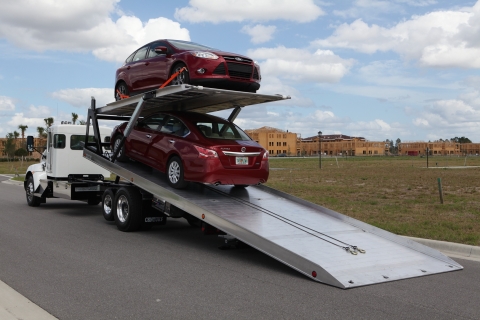

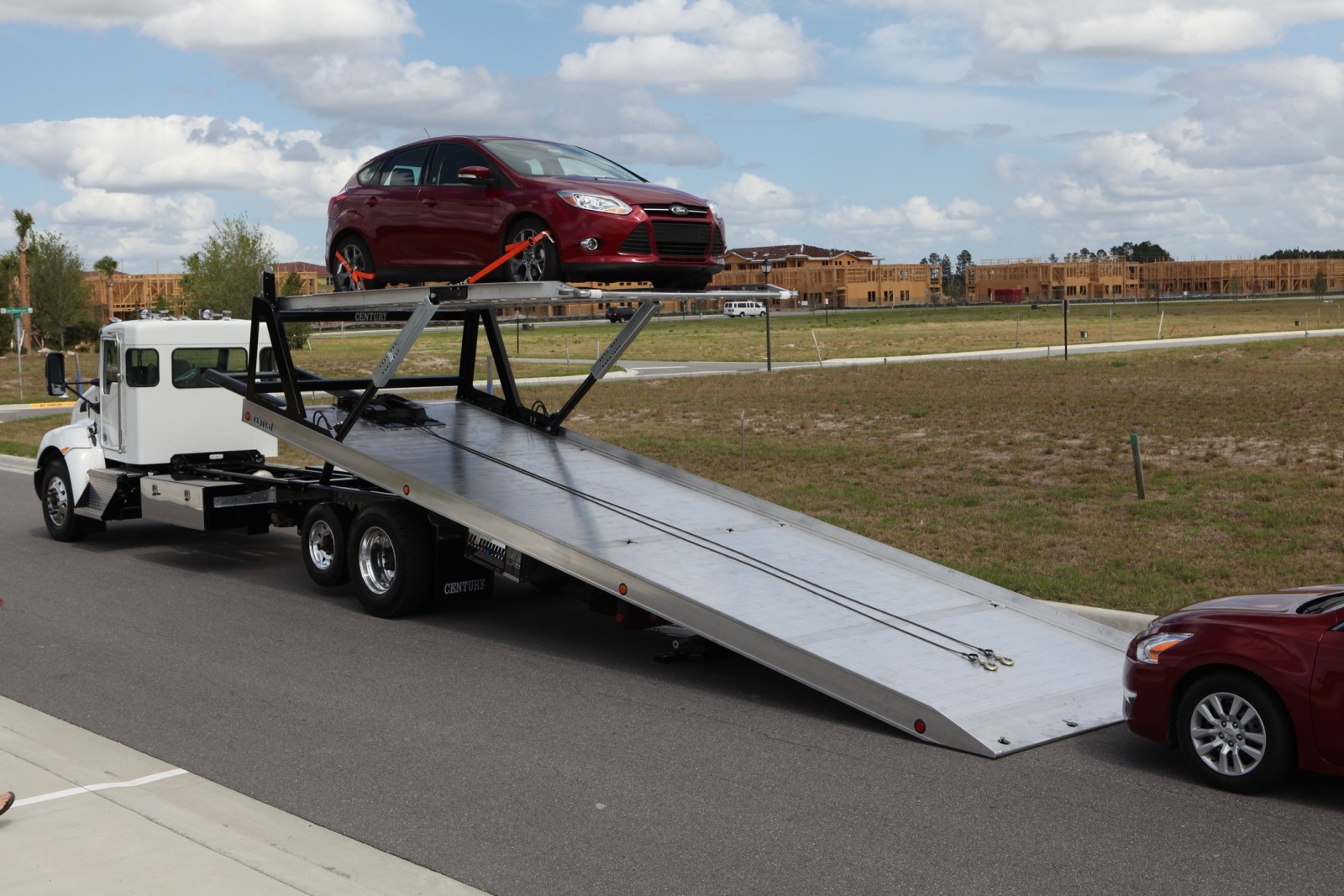

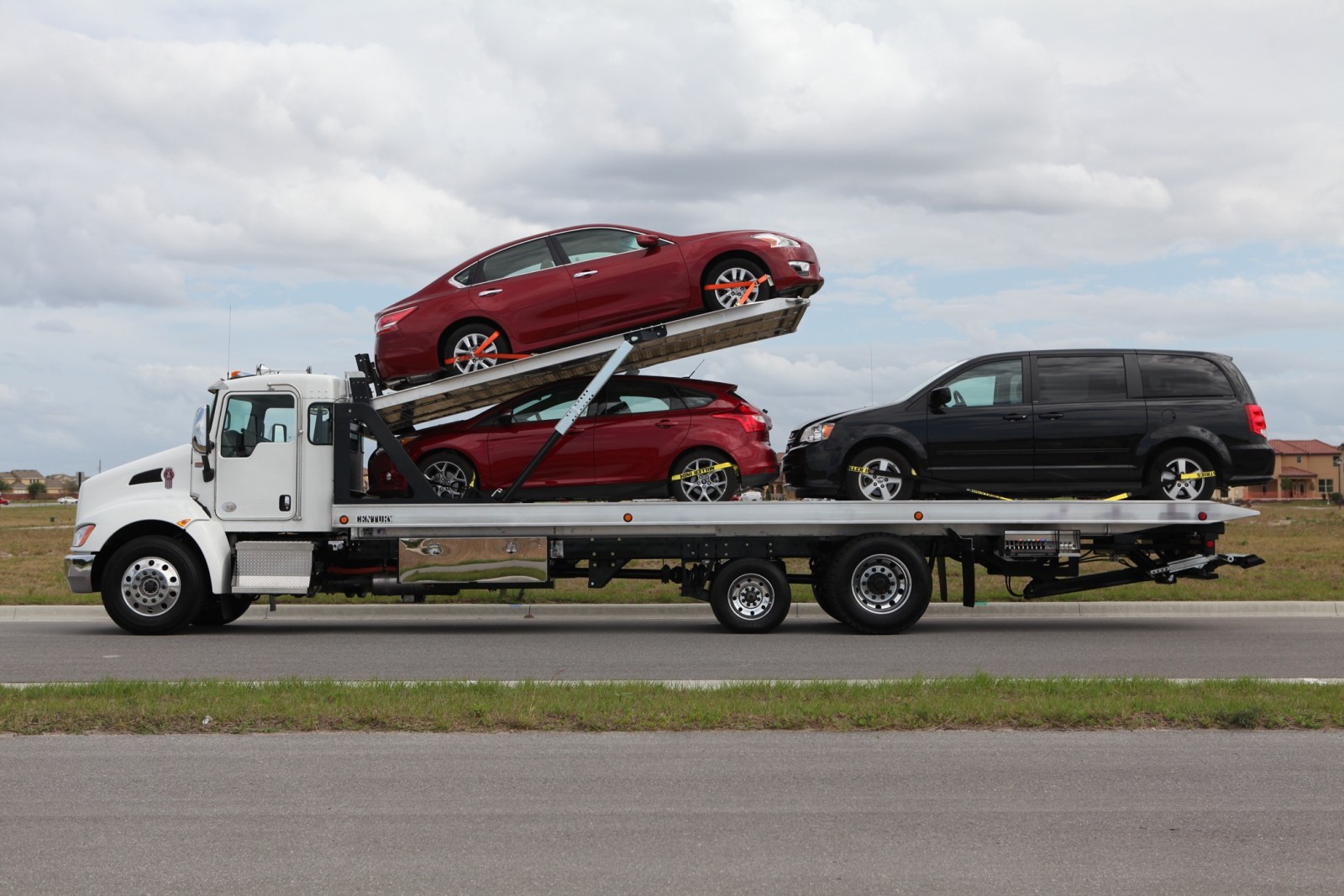

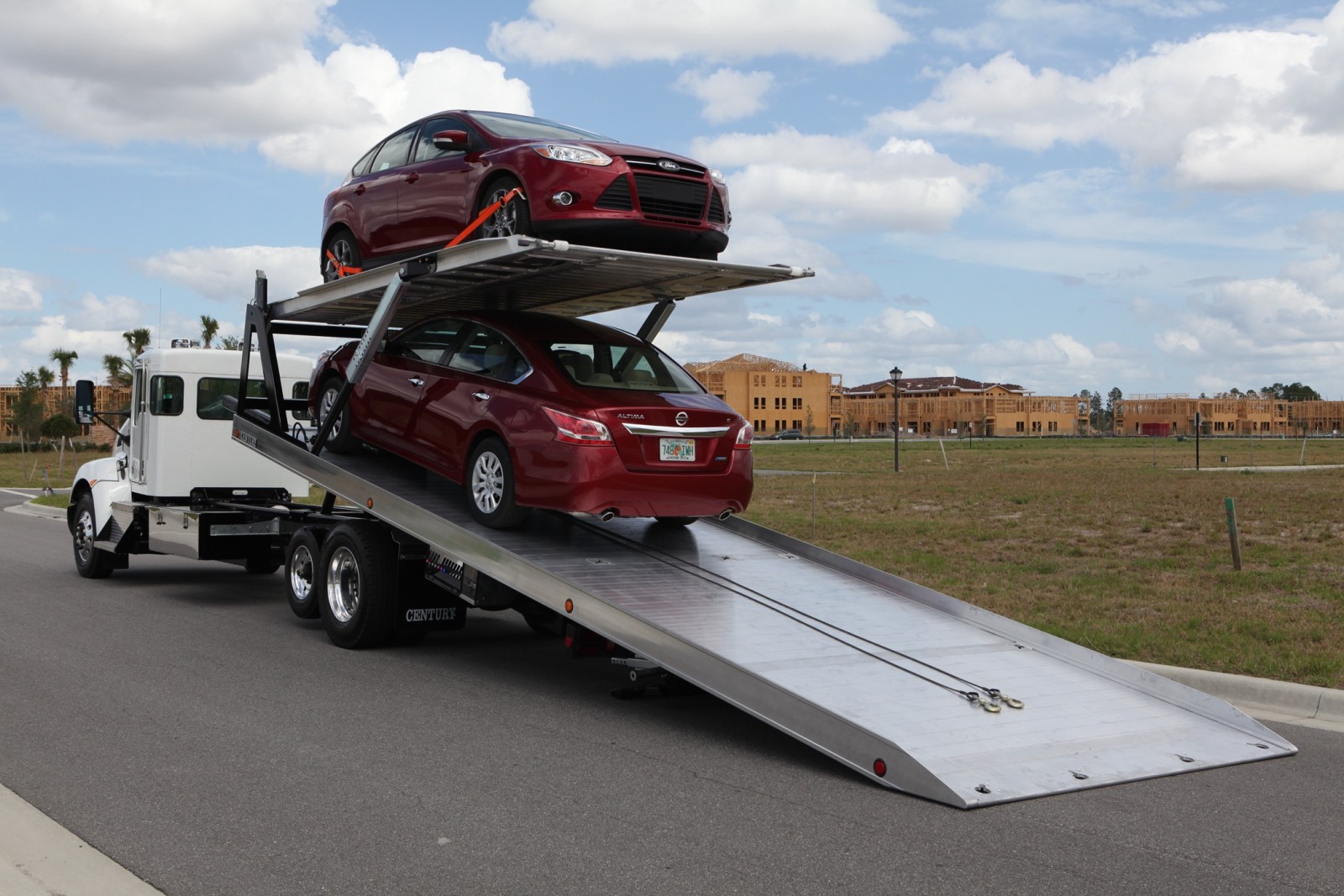

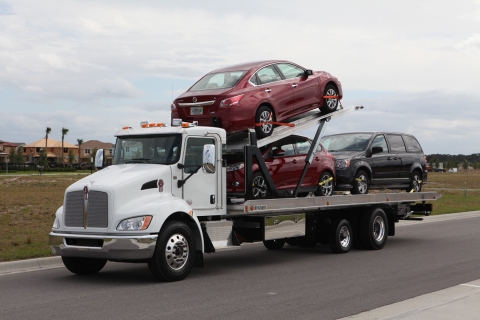

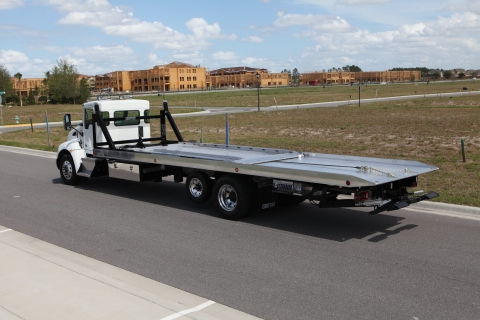

16 Series Multi-Deck LCG® Gallery

See all 6 photos

The combination of proven technology and reliabitliy of a 16 Series Aluminum LCG® (Low Center of Gravity) Carrier with an auxiliary deck system. The Multi-Deck Carrier is available in deck lengths from 24’ – 26’ feet for hauling up to 3 vehicles as well as 30’ decks for transporting up to 4 vehicles.

Features

Standard

  • Aluminum Lower Deck:
  • High Tensile Double Box Extruded Smooth Floor System on Tilting & Lifting Functions
  • Heavy Duty Extruded Sill w/Integral Full Length Graphite-Impregnated Wear Strips Top & Bottom For Wire Harness Connection
  • Front Left & Right Chain Trays (3-Car)
  • Extruded Blade Sides
  • Rear Sill Reinforcements
  • 4 Rear & 2 Front Chain Locks (3-Car)
  • 12 Chain Locks (4-Car)
  • 102” Wide Body
  • 2 - 8,000 lb Low Mount Winches (4-Car)
  • 8,000 lb Low Mount Winch (3-Car)
  • Federal Standard 108 Lighting
  • Tow Light Socket
  • Water Resistant Junction Box
  • Pilot Operated Holding Valves
  • Mud Flaps
  • Back-Up Alarm
  • 15 1/2’ Aluminum Upper Deck
  • Cable Tensioner
  • Releasable L-Arm Wheel Retainers
  • Winch Air Free Spool
  • Mechanical Anti-Tilt
  • Four Safety Chains
  • Inboard Tilt Cylinders
  • LED Lights
  • Hydraulic Wheel Lift
  • Illuminated Dual Controls
  • 4-Side Body Marker Lights (per side)
  • Body Lock w/Nylatron Roller Bearings

Optional

  • Additional Chain Locks
  • Radio Remote Control
  • PTO
  • Area Lighting
  • Factory Installation
  • Magnetic Tow Lights
  • AutoGrip™ II Wheel Lift
  • J-Hook Chains & Tie Down Straps
  • Galvanized Subframe
  • V-Chain
  • Aluminum Tool Box or Steel Boxes with Stainless Steel Door
  • Trailer Ball Plate Trailer Hitch for AutoGrip™
  • Dual Air Free Spool

Specifications

Main Deck

Body Width 101” Inner Deck – 102” Outer Deck
Deck Lengths 24', 25', 26', 30'
Body Extension 120”
Control Valve Sectional, 20 GPM, 2400 PSI
Oil Reservoir 24 Gallons
Oil Filter 250 PSI, 25 Microns
Pump 18 GPM
Body Rating 16,000 lb Evenly Distributed
Wheel Lift Rating 4,000 lb Extended

Upper Deck

Body Width 87”
Body Rating 4,000 lb
Platform Length 15.5’

Chassis Recommendations

Minimum GVWR 33,000 lb
Wheel & Tire Size 275/70R 22.5
Frame Height 36” – 38”
Minimum Frame Length Behind Center of Rear Axle 36”
Minimum Frame RBM, 24’ (3 Car) 166” C.A. 1,200,000 in-lb
Minimum Frame RBM, 25’ (3 Car) 170” C.A. 1,600,000 in-lb
Minimum Frame RBM, 26’ (3 Car) 182” C.A. 1,600,000 in-lb
Minimum Frame RBM, 30’ (4 Car) 224” C.A. / 206” C.B. 2,060,000 in-lb

Aluminum wheels are required to maintain minimum spacing of 49” between inside rear tires.

Fuel Tanks must be under cab and not to extend behind the cab. Chassis components directly behind the cab must be 2” below the top of the truck frame.

The preferred location for the battery box is under the passenger seat or under the cab. Battery boxes in other locations may require relocation.
