- Available brand
Century Express / Vulcan 807
- Boom Capacity
- 16,000 lbs.
- Winch Rating
- 8,000 lbs.
- Tow Rating
- 7,500 lbs.

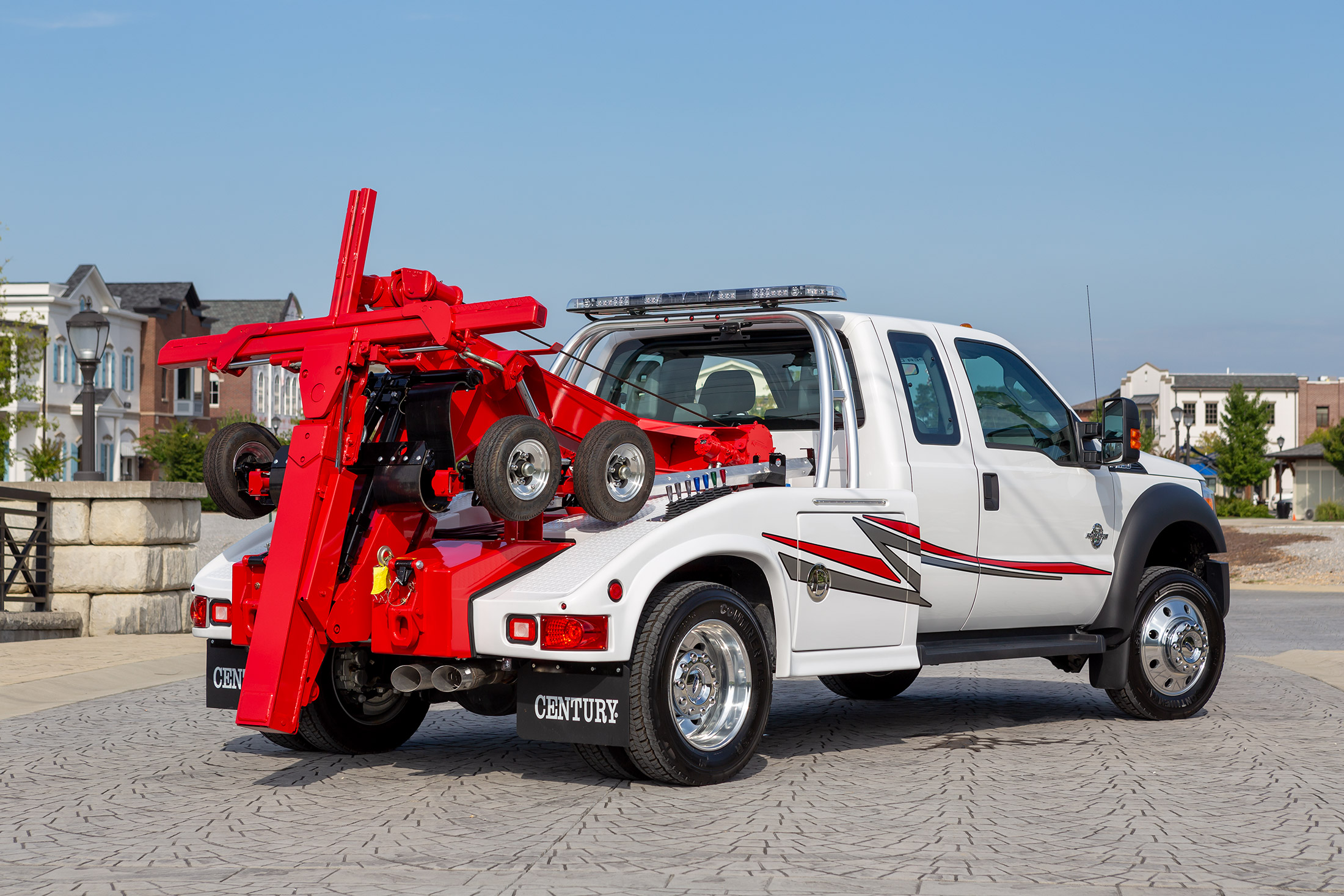

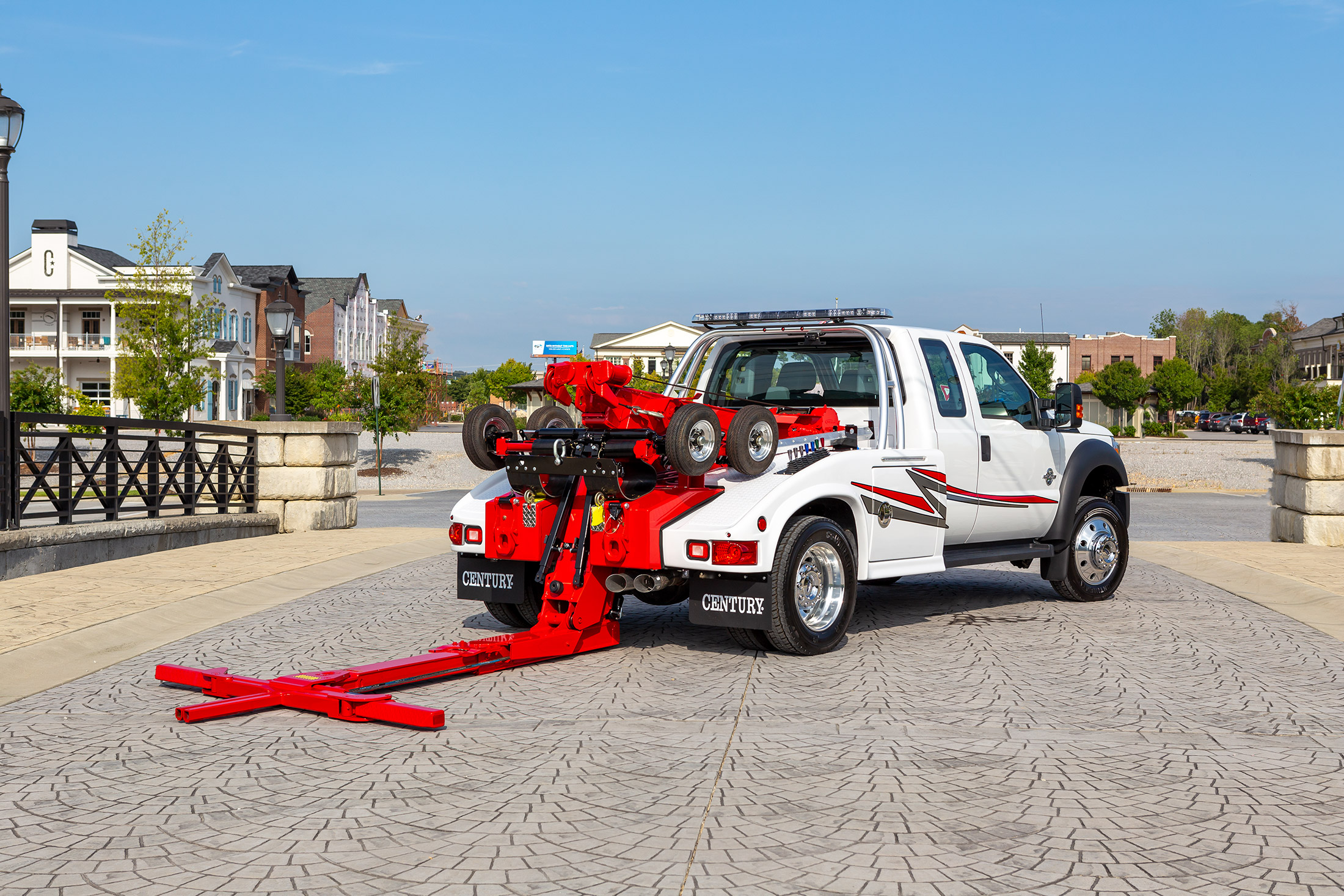

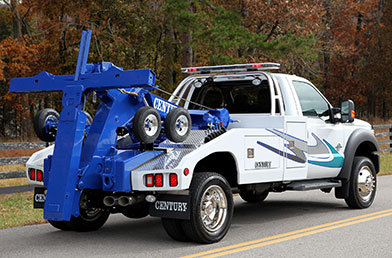

Century Express Series Photos
The Century Express and Vulcan 807 are your answer to high volume towing the easy way. With the auto-loading, low profile crossbar design, you can easily pick up low clearance automobiles without getting out of your truck. The sloped tail board design gives you superior visibility when hooking up. Designed for the professional tower who prefers the convenience of a hydraulic autoload system without sacrificing recovery capabilities.. Contact your local Miller Industries Distributor to see how the Century Express and Vulcan 807 surpasses the competition.
Features
Standard
- 60" C.A. SteelModular Body
- Adjustable Modular Body, 88" or 94"
- Integrated Boom & Wheel Lift System
- Hydraulic Auto-load Crossbar
- In-Cab Remote Control Pendant on Cord with 8 Functions
- Dual Manual Controls
- 1 Pair of Safety Straps
- Safety Chains in Rear Pockets
- Tool Compartment, Left & Right Hand Side
- Power Boom Elevation with Holding Valve
- 8,000 lb Variable Speed Hydraulic Winch (Dual Winches on the 312)
- 3/8” x 100’ Cable Assembly
- 360° Directional Boom End Swivel
- Winch Cable Tensioner & Free Spool Handles
- Federal Standard #108 Lighting
- Wiring Harness with Junction Box
- Mud Flaps
- Tailboard Mounted D-Rings
- Back-Up Alarm
- Power Fold for Stinger Storage
- Self Centering Crossbar with 3” Pivot Pin
- Roller Guided Hose Tracking System
Optional
- Clutch Pump
- Aluminum or Composite Modular Body
- Tow Sling*
- Motorcycle Attachment
- 24” Tunnel Toolbox for 84” C.A.
- Steel Light Pylon
- Aluminum Tubular Light Pylon
- Go-Jak Mounting Brackets
- Dolly Bunks
- Trailer Ball Adapter
- Emergency Lighting
- Work Lights
- Front Push Bumper
Specifications
Boom — 301
At Boom Swivel | 16,000 lbs. |
---|---|
Maximum Boom Elevation | 33° |
Boom — 311/312/807
Lift Height at Maximum Elevation | Retracted | 78” |
---|---|---|
Lift Height at Maximum Elevation | Extended | 111” |
Reach Past Tailgate, Minimum Elevation | Extended | 50” |
Reach Past Tailgate, Maximum Elevation | Extended | 22” |
Boom Rating at Boom Swivel | Retracted | 16,000 lbs. |
Boom Rating at Boom Swivel | Extended | 4,000 lbs. |
Wheel-Lift
Retracted Distance from Tailgate at Normal Tow Position | 52” |
---|---|
Extended Distance from Tailgate at Normal Tow Position | 85 1/2” |
Maximum Hydraulic Extension | 33 3/4” |
Lift Rating | 4,000 lbs. |
Tow Rating | 7,500 lbs. |
Winch Rating & Cable
Rating (first layer of drum, each winch) | 8,000 lbs. |
---|---|
Diameter and Length (each winch) | 3/8” x 100’ |
Type | 6 x 19 Hemp Center, IPS |
Chassis Recommendation
GVWR | 15,000 – 19,000 lbs. |
---|---|
Minimum Cab to Axle (Clear) | 60” |
Maximum Cab to Axle (Clear) | 84” |
