Century 2465 / Vulcan V-24

Boom Capacity
24,000 lbs.
Winch Rating
12,000 lbs.
Tow Rating
20,000 lbs.

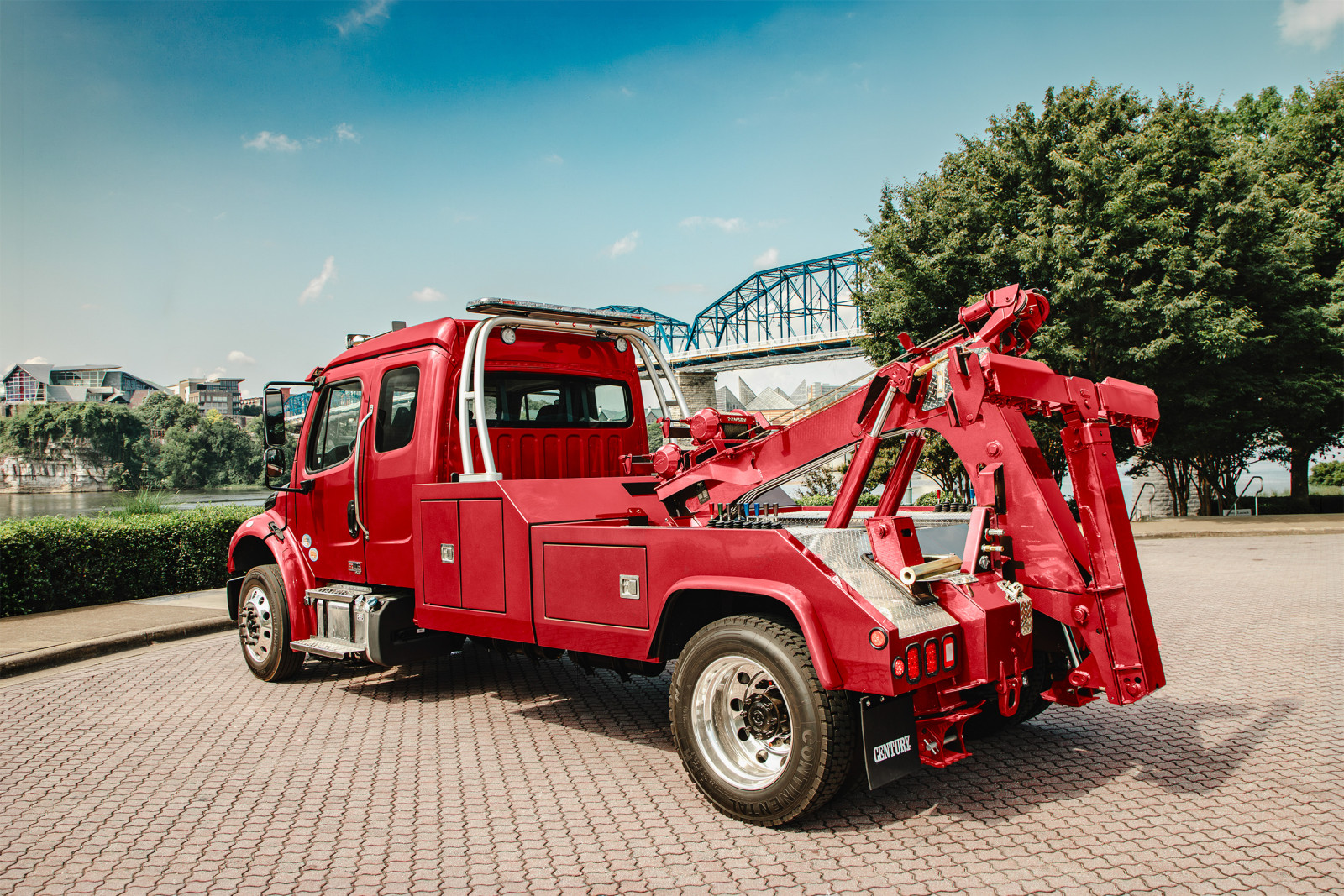

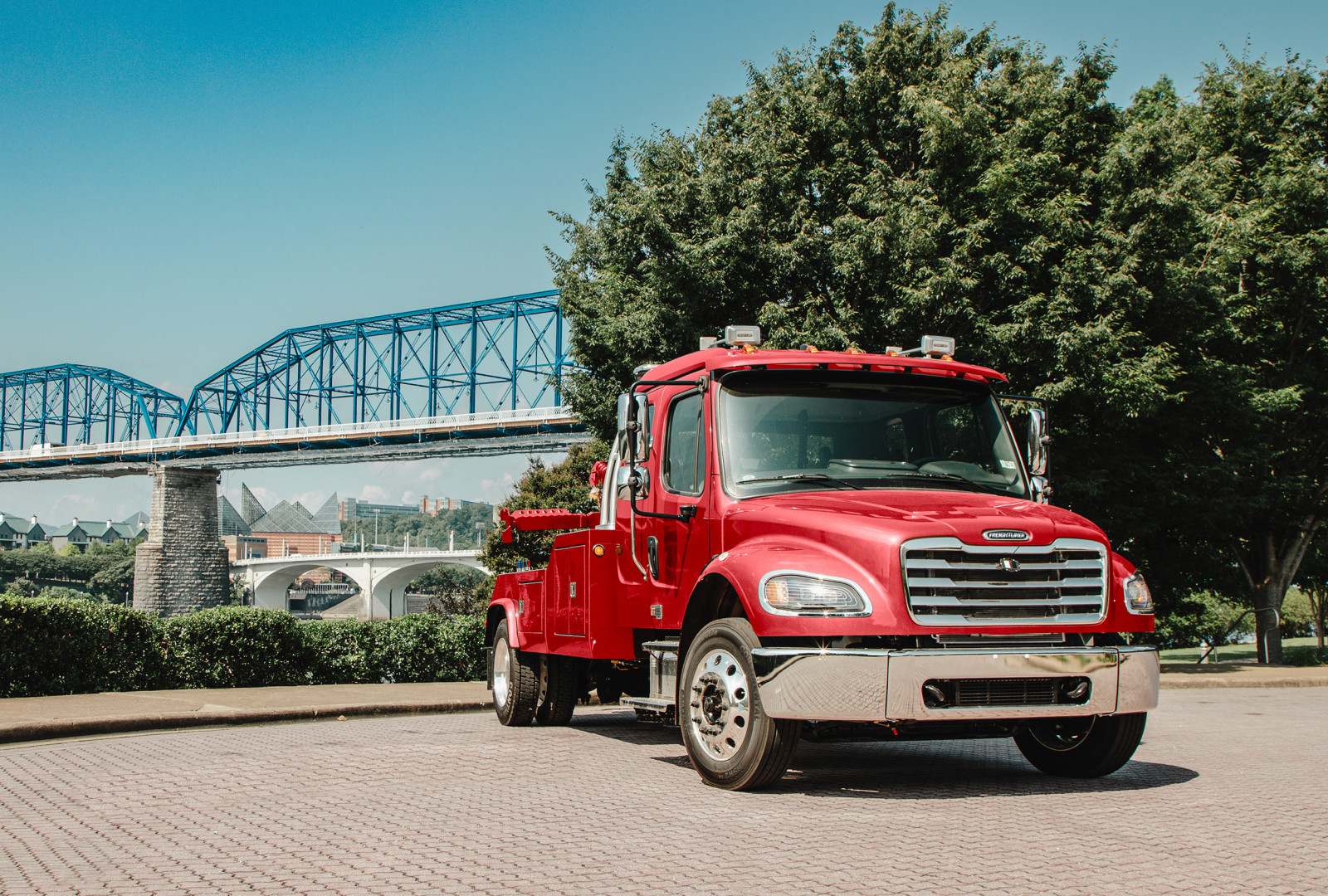

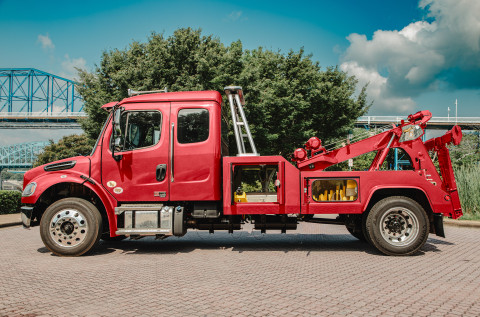

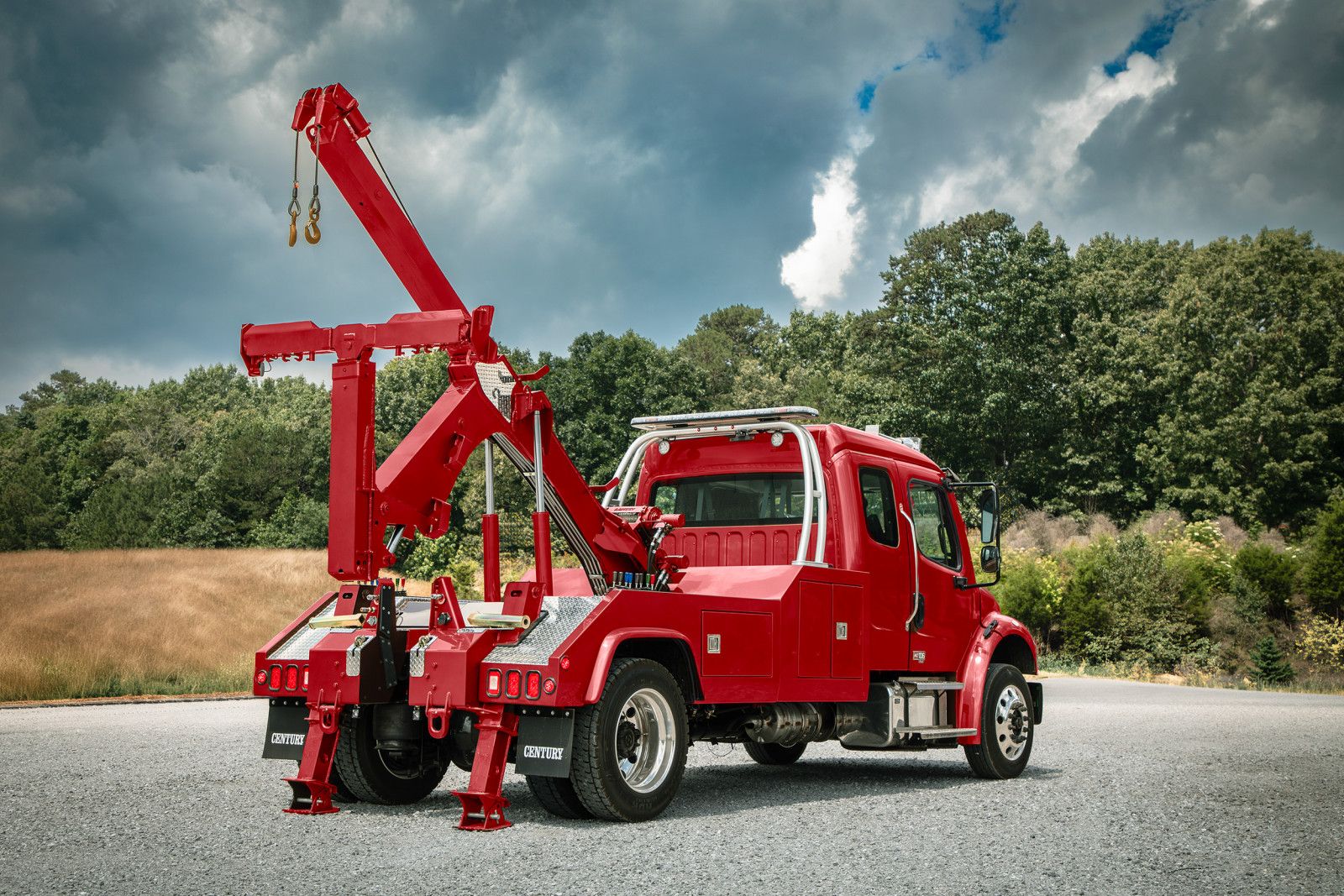

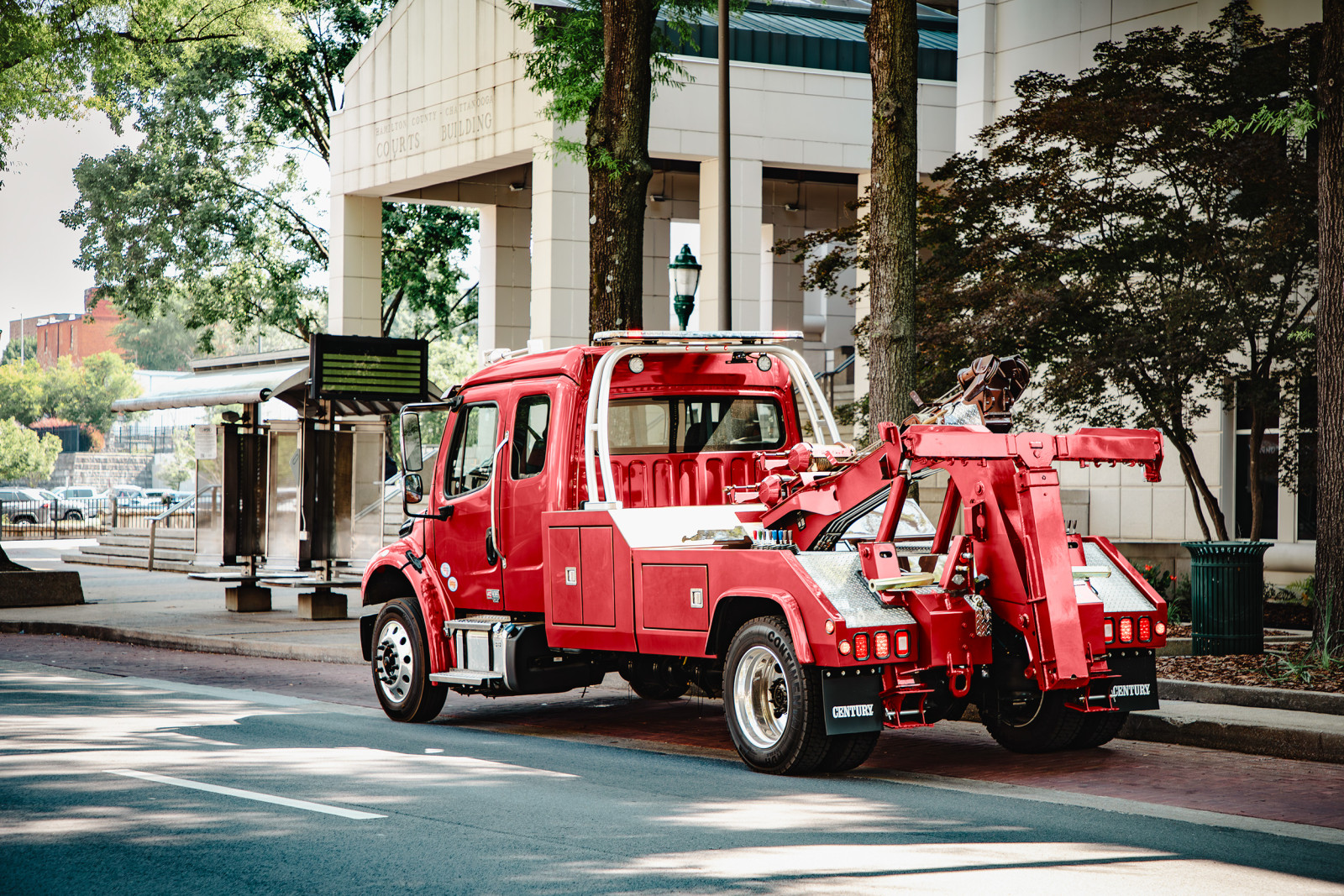

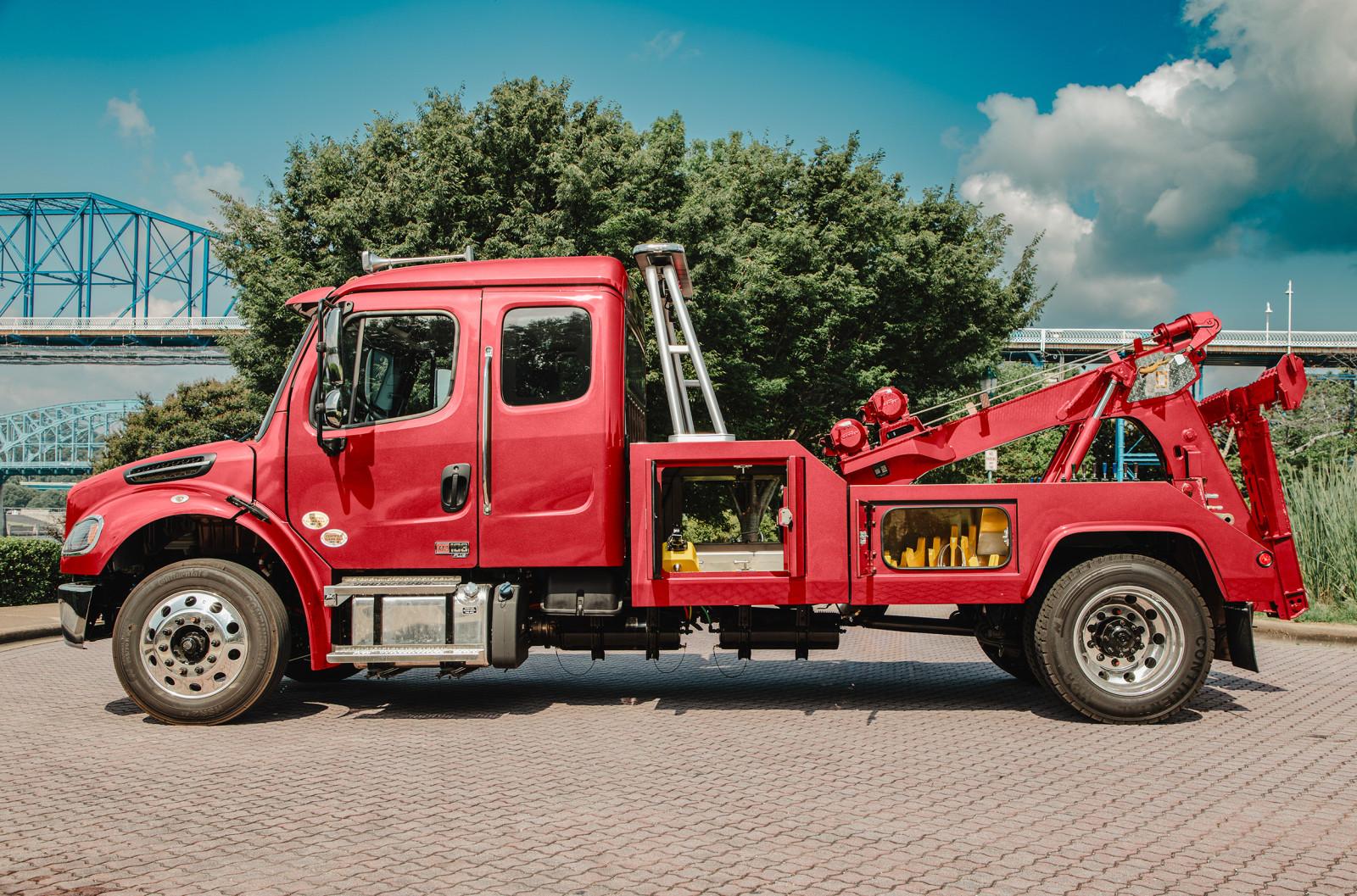

Century 2465 / Vulcan V-24 Gallery

See all 10 photos

The 2465 / V-24 integrated towing & recovery unit has been designed to be an ideal match for the popular low-pro medium duty chassis. The 2465 is equipped with twin 12,000 lb planetary winches and a recovery boom rated at 12 tons retracted and 5 tons extended.

The 2465 / V-24 is available in a 84” or 108” CA aluminum modular body that includes spacious tool compartments with a front tunnel box. The fabricated underlift is rated at 7,000 lb lift capacity at its fully extended reach using lifting forks. This makes it ideal for towing a wide variety of light and medium duty trucks, as well as automobiles.

Features

Standard

  • 60” Aluminum Modular Body with 1 Compartment Per Side
  • Safety Chains, 5/16 Grade 70
  • 24” or 48” Aluminum Tunnel Box
  • Safety Chain Storage Pockets
  • Tandem Pump with Split Control Valves
  • Hydraulic Rear Jacks with Flipper Feet
  • Dual Control Stations
  • 6,000 lb Vulcan Wheel Retainers
  • Planetary Winches
  • Wheel Retainer Storage Pockets
  • Winch Cable Tensioners
  • Low Pull "D" Rings
  • Winch Free Spool Handles
  • Federal Standard 108 Lighting
  • 1 Set of 3” Lift Forks
  • Mud Flaps
  • 1 Set of Fork Receivers

Optional

  • PTO
  • Work Lights & Additional Lighting
  • Lanyard Remote
  • Light Pylon
  • Additional Lifting Attachments
  • Combination 5th Wheel/Pintle Hook
  • Switch Panel
  • Wide Load Light Bar
  • Aluminum Dress-Up Kit
  • Air & Electrical Hookups

Specifications

Boom

Retracted 24,000 lbs.
Extended 10,000 lbs.
Maximum Angle 40°
Maximum Hook Height 147”
Maximum Reach past Tailboard Minimum Elevation 72”

Underlift

Fully Retracted (with Forks) 9,000 lbs.
Fully Extended (with Forks) 7,000 lbs.
Extended or Retracted with L-Arms 6,000 lbs.
Underlift Reach to Center of Fork Holder on the Ground
Retracted 42”
Extended 76”
Positive Tilt 28°
Negative Tilt 12°
Tow Rating 20,000 lbs.

Winch Rating & Cable

Rating (first layer of drum) each Winch 12,000 lbs.
Diameter and Length (Each Winch) 7/16” x 150' IWRC

Chassis Recommendation

Suggested GVWR 21,000 lbs. – 31,000 lbs.
Cab to Axle (Clear) 84” or 108”
Maximum Frame Height 37”
Maximum Tire Size 255/70R22.5
