600R

16 Ton Rotator

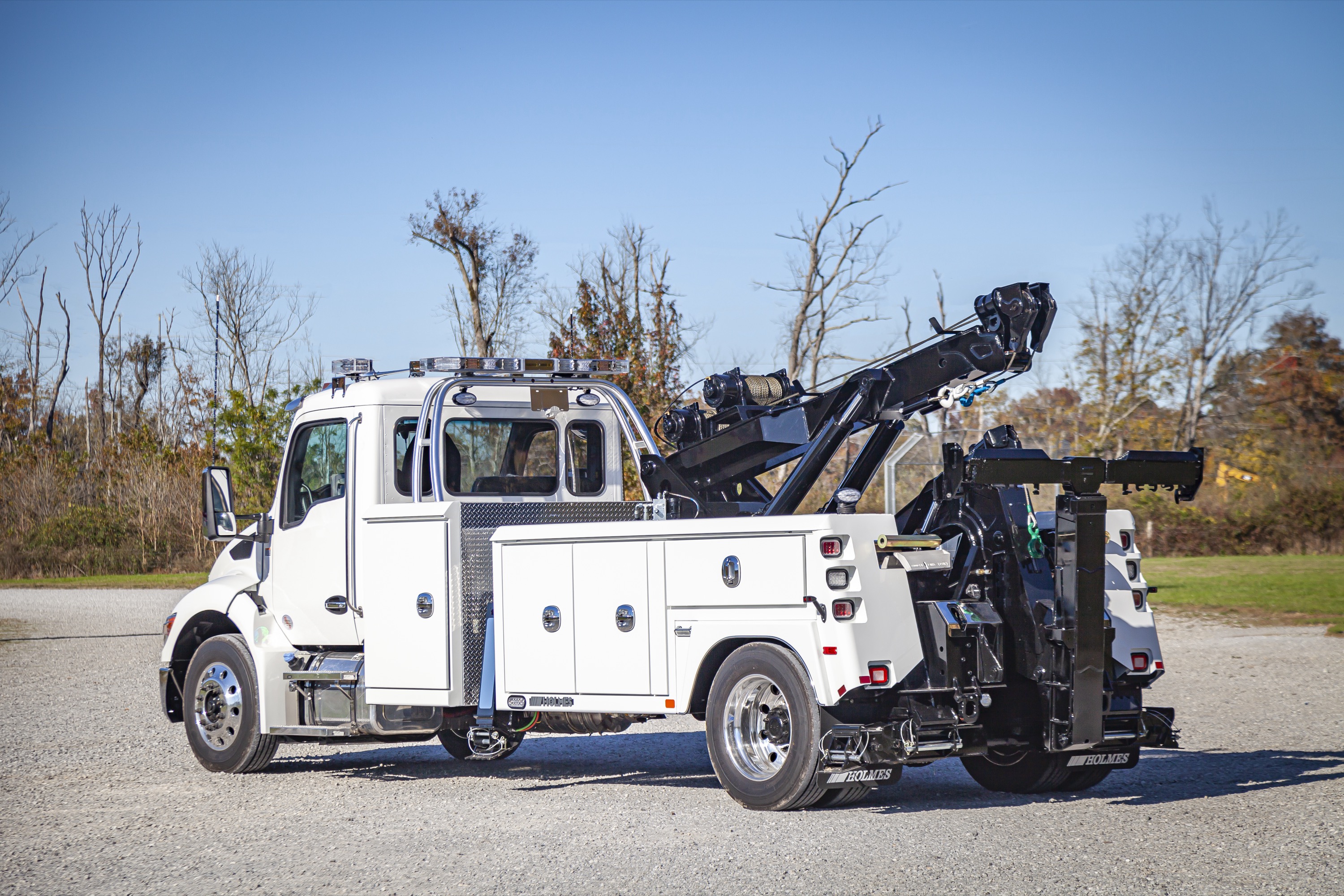

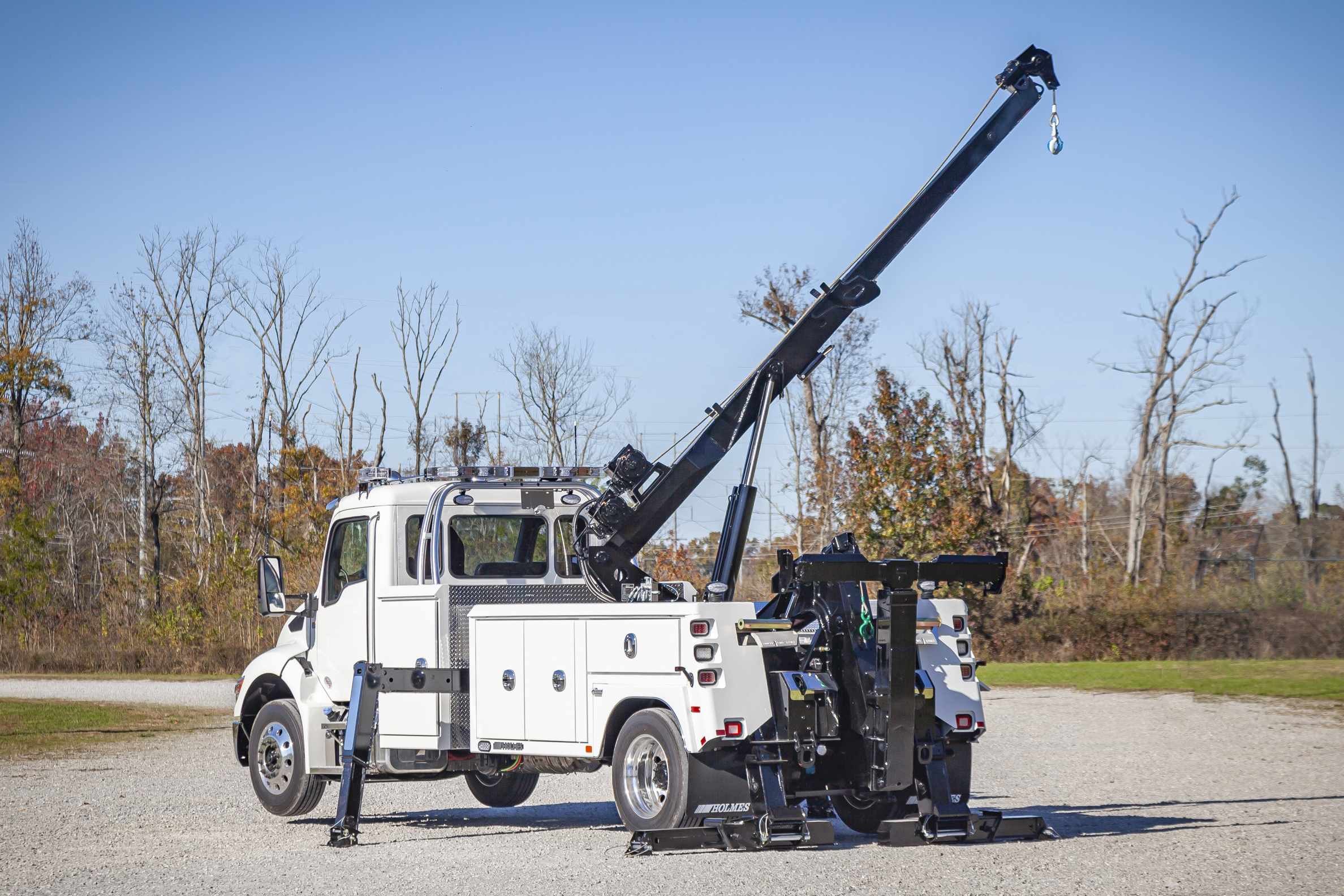

Holmes opens up a whole new dimension in medium-duty towing and recovery with the Holmes 600R. A recovery boom with 32,000 lbs. of retracted capacity and 12,000 lbs. of extended capacity that rotates 213° makes this the most versatile unit yet from the oldest and most trusted name in the industry. The "knee-boom" style underlift, with 81” of reach, easily handles a wide range of vehicles from autos through trucks. Contact your local Holmes distributor to learn more about how the Holmes 600R can increase your towing and recovery capabilities.

Features

Standard

  • Dual 15,000 lb.-rated Planetary Gear Recovery Winches
  • 120" Aluminum Modular Body w/Rubber Mounting Isolators
  • Lift Fork Storage & Chain Rack, Passenger & Drive Side
  • 2 Wireless Remotes- (one for the underlift functions, one for the recovery boom functions)
  • Manual Control Station on Passenger Side
  • Front Hydraulic Extendable Top-Beam Outriggers with Pivot Pad
  • Rear Hydraulic Outriggers with Manual Extention and Pivot Pad
  • Mud Flaps
  • 3 Sets of Towing Forks
  • Rubber Fenderettes
  • Safety Chains
  • Door Closures
  • Federal Standard 108 Lighting
  • LED Body Lighting
  • Dual Hydraulic Pump
  • Removable Wheel Grids
  • 4,000 lb. Light-Weight Aluminum Scoops
  • 6,000 lb. "L" Arms with Pivoting Receivers
  • "D" Rings
  • Toll Compartment Lighting
  • Spring Loaded Cable Tiebacks

Recovery Boom

  • Rotation 213°
  • Capacity Retracted (at 30°) 32,000 lbs.
  • Capacity Extended (at 30°) 12,000 lbs.
  • Maximum Hook Height 220"
  • Maximum Boom Angle 49.5°
  • Dual 15,000 lb.-rated Planetary Gear Recovery Winches
  • Reach Past Tailboard At 30° & Full Extension 56.5"
  • 360° Rotating Sheave Heads
  • Hydraulic Power Elevation
  • Hydraulic Power Extension
  • Cable Tie Backs

Underlift

  • KneeBoom Style (12,000 lbs. Retracted / 9,000 lbs. Extended)
  • Hydraulic Fold
  • 2-Stage Design
  • Low Profile Fabricated Cross Bar
  • Chain Adjuster Weldments
  • 6,000 lb Steel L Arms Wheel Retainers
  • 4,000 lb Light-Weight Aluminum Wheel Retainers- (Scoops)
  • Removable Wheel Grids
  • Four Sets of Cast Towing Forks: Short Axle Fork, 3” Short, 3” Medium, 3” Tall

Optional

  • 24” or 36” Aluminum Saddle Box
  • 8,000 lb. Drag Winch
  • Light Bar
  • Work Lights
  • LED Smart Lights Kit
  • Light Pylon
  • In-Cab Controls
  • Wide Load Light Bar
  • Additional Lifting Attachments
  • Air & Electrical Hookups
  • Installation
  • Chain Kits
  • Underlift Tailboard Controls
Units

Specifications

Boom

Boom Rotation 213°
Boom Structural Rating (S.A.E.) Retracted 30° 32,000 lb
Boom Structural Rating (S.A.E.) Extended 30° 12,000 lb
Maximum Angle 49.5°
Maximum Hook Height 220”
Reaching Past Tailboard at 30° & Full Extension 56.5"

Winch Rating & Cable

Winch Capacity 15,000 lbs.
Winch Type Dual Planetary Winch
Cable Specifications 1/2” x 150’
Cable Type 6 X 37 I.W.R.C.

Underlift

Extended (with Forks) 9,000 lbs.
Retracted (with Forks) 12,000 lbs.
Extended or Retracted with "L" Arms 4,000 lbs. (Alum L Arms) / 6,000 lbs. (Steel L Arms)
Tilt Arc -8° / + 20°
Tow Rating 32,000 lbs.
Reach to Center Fork Holder (Extended) 81"
Reach to Center Fork Holder (Retracted) 47"

Chassis Recommendation

GVWR 27,000 lbs. – 31,000 lbs.
Maximum Frame Height 38”
Maximum Tire Size 275/70R 22.5
Clear C.A. 120”

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
