Yard Ramp

No Loading Dock ... No Problem!  Yard Ramp Will Get The Job Done.

  • 50,000 lb. Capacity - Steel Tubing Sub-frame for Max Durability
  • Smooth Loading - 4 Adjustable Approach Flaps
  • Versatile Height - Adjustable Stabilizers (33 in. to 51 in.)

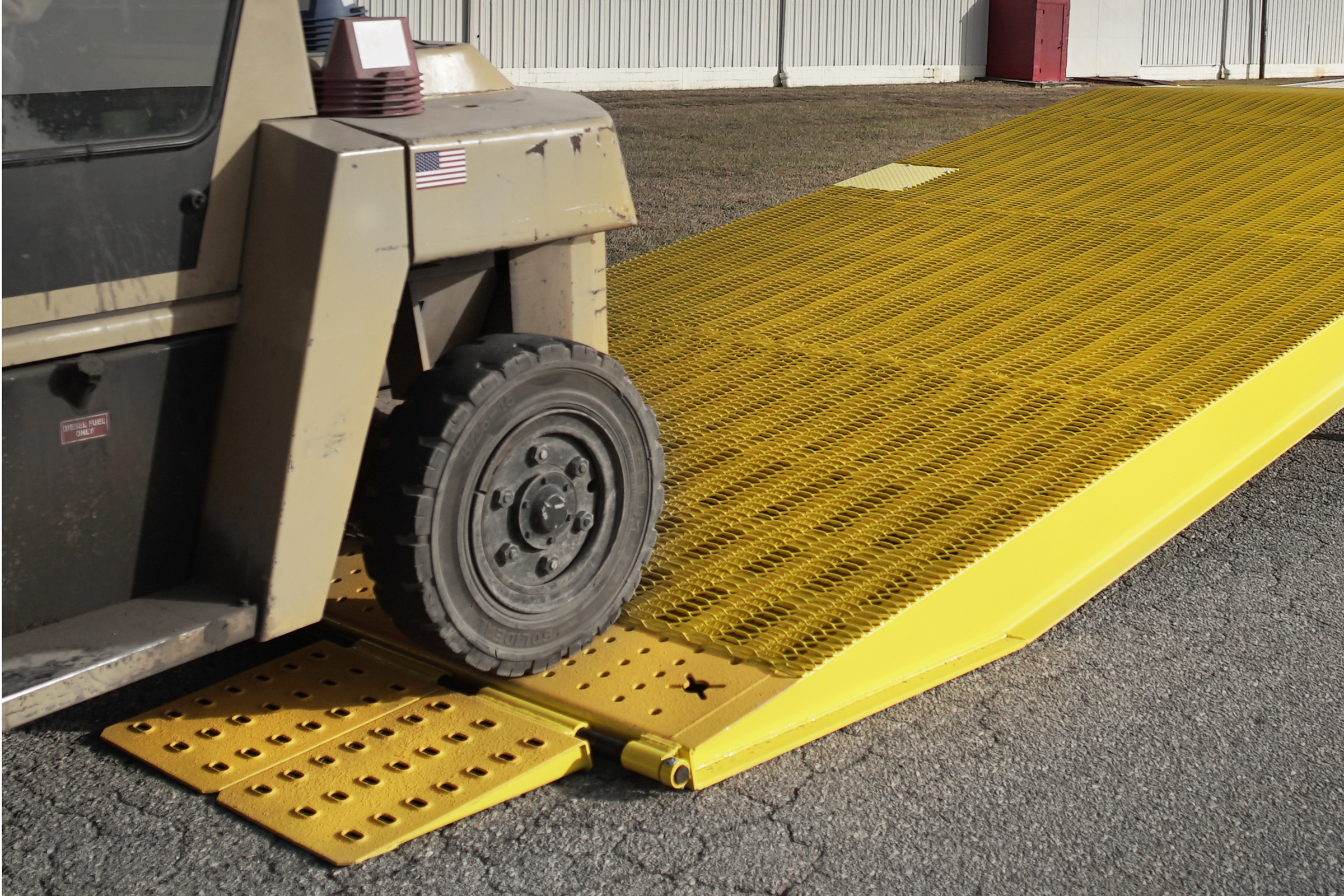

  • Max Slip Resistance - Heavy Gauge Expanded Metal Ramp Deck

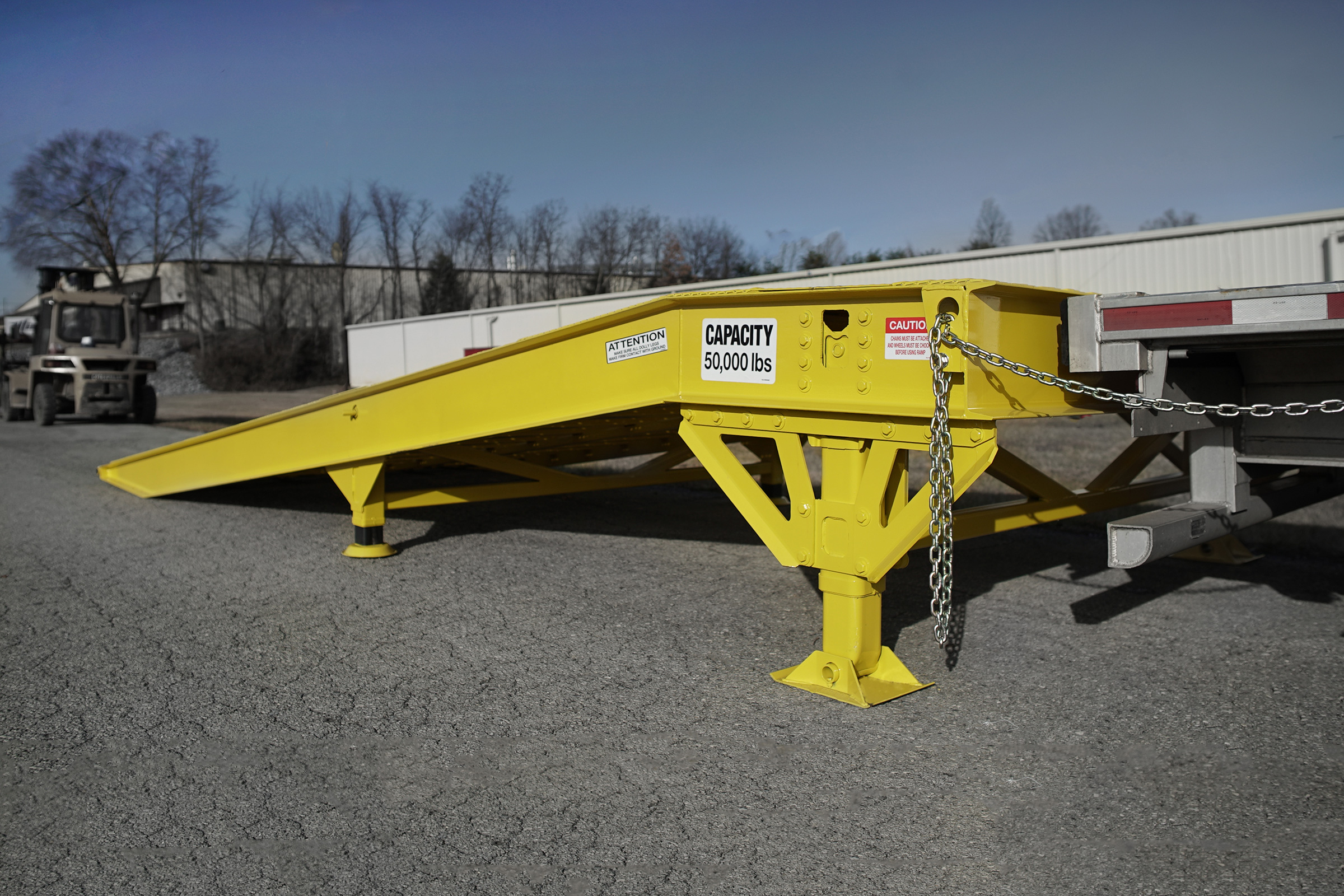

  • Peace of Mind - Trailer Securement Chains and Chain Pockets / Safety Yellow

Features

Top of Page

Standard

  • (4) Adjustable 24" Steel Approach Flaps
  • (2) Sets of Adjustable 50,000 lb. Stabilizers (Adjustable 33 in. - 51 in.)
  • Hi/Low Gears for Hand Crank Stabilizers
  • Heavy Gauge Expanded Metal Over Steel Tubing
  • 25' Ramp Length
  • (2) 10’ Chains for Securement to Trailer
  • Right & Left Side Securement Chain Pockets
  • Painted Safety Yellow

Optional

  • Tungsten Plank Wood Decking Over Steel Tubing Construction
  • Roller Kit for Yard Transport
Units
US
Metric

Specifications

Yard Ramp

Load Rating* 50,000 lbs.
Length 25'
Width 120"
Height (Adjustable) 33" to 51"
Total Weight** 7,800 lbs.
Steel Crossmembers 6" Wide Flange I-Beam on 18" Centers

*Platform load rating is within a 10' area, and is based on equally distributed load.
**Total weight is approximate, and varies based on deck construction

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
