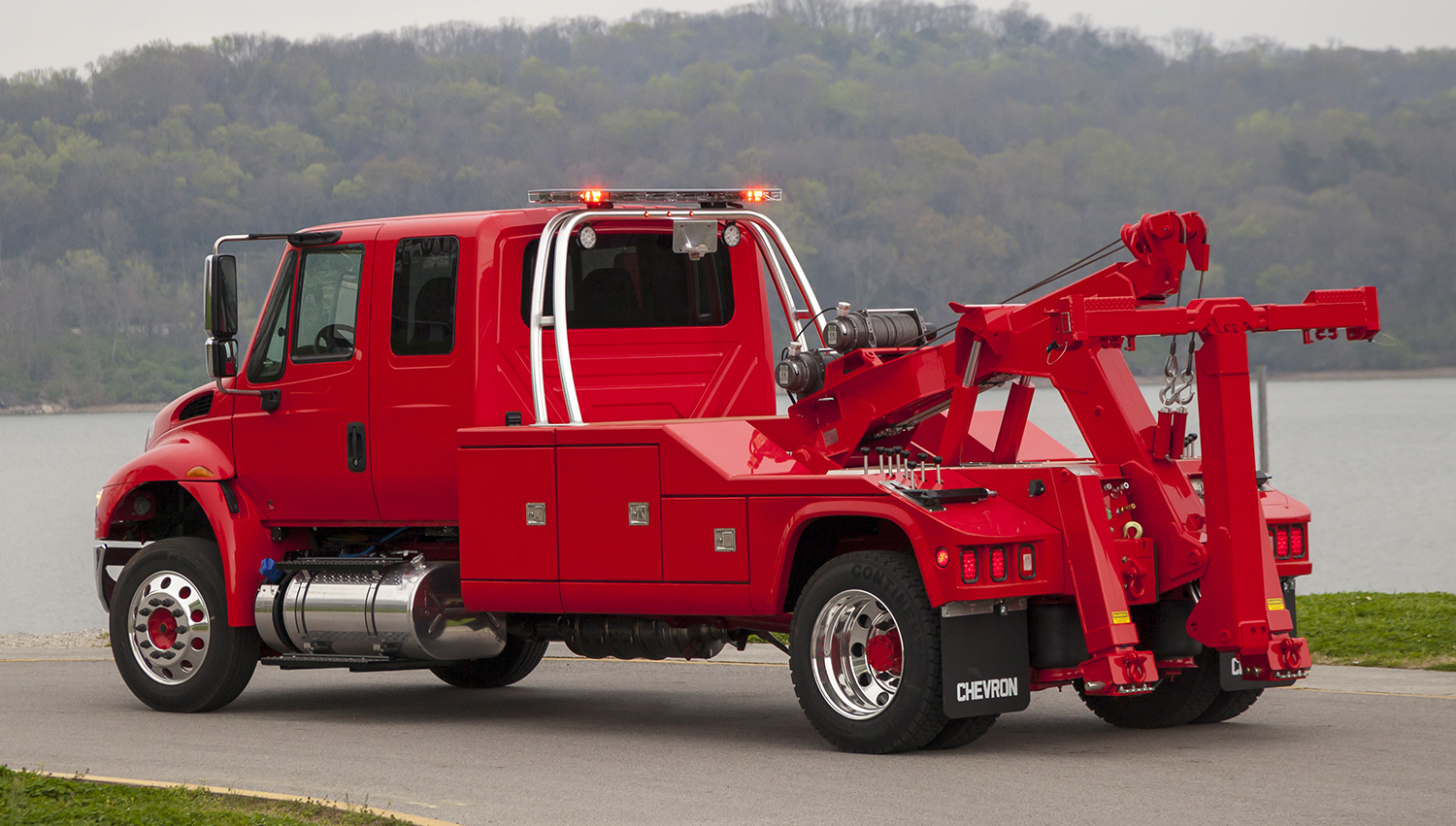

Chevron has just introduced their new Model 512 integrated towing and recovery unit. The 512 features a 12 ton retracted recovery boom with dual in-line planetary winches complete with air free spool and 150’ of 7/16” wire rope.
The recovery boom at full extension reaches 71” past the tailboard when horizontal and can be elevated up to 41°. The under lift provides up to 78 1/2” of reach with a lift capacity of 7,000 lb extended and 9,000 lb retracted using the lift forks. The tailboard of the 512 includes rear “D” rings, built in safety chain pockets, recessed area for air and auxiliary light plug ins along with optional multi-position hydraulic rear spades. The 108” CA aluminum modular body provides spacious storage for your tools and attachments including built in storage racks for your lift forks. The bolt on rear quarter panels of the 512 provides sleek automotive style and is constructed of high impact composite material that can be easily replaced in case of damage without replacing the entire side. Other features include a large tunnel box; LED body lighting and gas assist shocks on the compartment doors.
Features
Standard
Aluminum modular body sides with two tool compartments each side
28 in. tunnel through box with tool compartment lights
Tool compartment door closures on all doors
12,000 lb. Planetary winches
108 CA
7/16” x 150 ft. cable
Air free spool winches
Cable tensioners
3 inch forks
4 inch forks
Spring shackle adapters
Low profile offset fork holders
Underlift crossbar extensions
L.E.D. lights
L-arm storage pockets
6000 lb. L-arms
Wheel straps and ratchets
Safety chain pockets
Safety chains
FMVSS 108 lighting
Junction box with wire harness
Pilot operated holding valves
Lubrication fittings on all pivot points
Dual rear controls
Rear shackles
Tow light plug
Backup alarm
Mudflaps
Optional
Hydraulic rear stabilizers
Medium duty underlift chains
PTO
Trailer ball adapter
Light weight 4,000 lb. L-arms
Radio Remote Control
Glad Hand and seven pin connector
Fifth wheel attachment
Crossbar end hooks
Bar light
Work lights
Switch panel
Magnetic tow lights
Electric wire remote control for underlift
Pintle ball hitch adapter
Light pylon
Air and electrical hookups
Units
Specifications
Boom
Boom Rating
Retracted
24,000 lbs.
Boom Rating
Extended
10,000 lbs.
Boom Elevation
41 degrees
Reach (Past Tailboard)
71 in.
Wheel-Lift
Tow Capacity
20,000 lbs.
Retracted
9,000 lbs.
Extended
7,000 lbs.
Reach (Tailboard to Center of Fork)
78.5 in.
Negative Tilt Range
-10°
Chassis Recommendations
GVWR
25,950 - 31,000 lbs.
Cab to Axle (Clear)
108”
Tire Size
255/70R22.5
Minimum Frame Height
35”
Maximum Frame Height
38”
Minimum Frame RBM
800,000 in/lbs. (each rail)
Body Specifications
Body Width
96 in.
Winch Rating & Cable
Winch Type
Planetary
Rating (first layer of drum) each winch
12,000 lbs.
Diameter and Length (each winch)
7/16" x 150'
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
