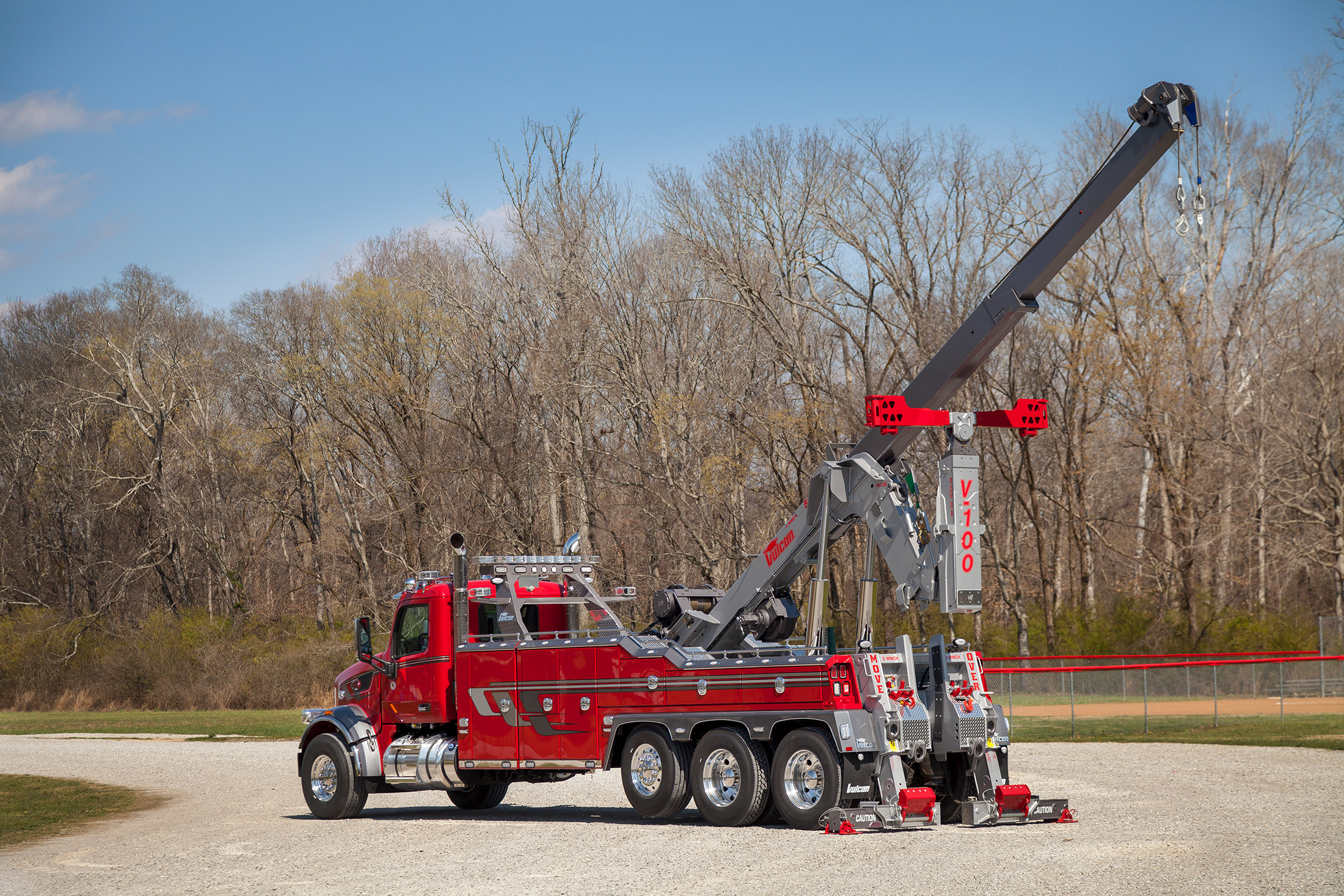

Vulcan V-100
Innovation in Heavy-Duty Integrated Towing and Recovery Equipment
Almost two decades ago, Vulcan became a pioneer in the heavy-duty integrated towing and recovery market with the introduction of the Vulcan 940 and then continued its advancement in equipment technology with the Vulcan 3025. Now available with an optional 3rd winch, the V-100 now has even greater recovery capabilities.
The V-100 is just one more example of Vulcan's continued pursuit in providing the most innovative equipment to meet the demands of professional heavy-duty operators.Toolbox compartments with keyless entry, 2-speed winches, the Euro-lift stinger with a 144” of reach and a 3-stage recovery boom providing over 25 feet of boom elevation are just a few of the many standard and optional features that have continued Vulcan's legacy as the innovator .... Not the imitator.
Features
Standard
- Dual Control Stations with Direct Link Activated Levers
- Pressure Gauges
- Hour Meter
- Hydraulic Pump
- Independent Hydraulic Rear Spades
- Pavement Pads (n/a with Flipper Feet)
- Tailboard D-Rings
- Safety Chain in Rear Pockets
- Tailboard Fork & Tie-Down Storage
- Tailboard Recovery Anchors
- Air & Electric Hook Up
Boom
- Power Elevation
- Power Extension
- 360° Sheave Heads
- Cable Tie Backs
- Spherical Bearings in Main Boom
- Dual 2-Speed Planetary Winches
- Cable Tensioners
- Winch Air Free Spool
Body
- Aluminum Modular Body w/Rubber Mounting Isolators
- LED Body Lighting
- LED Tool Compartment Lighting
- Gas Door Shocks
- Chrome Double Action Latches with Keyless Lock and Unlock
- Adjustable Shelves
- Lift Fork Storage
- Chain Storage
- Aluminum Tread-Plate Walkway
- Mud Flaps
Underlift
- Patented Power Tilt
- Hydraulic Fold
- 3-Stage Design
- 12 FXN Wireless Remote Control with Charging/Docking Station
- Low Profile 70° Pivoting Heavy Duty Fabricated Cross Bar
- Low Profile Fork Holders
- 9 Sets of Cast Steel Forks: Short Axle Fork, 3” Short, 3” Medium, 3” Tall, 4 1/2” Short, 4 1/2” Medium, 4 1/2” Tall, 6” Short Offset, Round Axle Fork
- Pivoting Spring Lift Adaptors
- Chain Hook End Caps
- King Pin Tow Plate
Optional
- Air Shift PTO
- PolyBilt Body
- MMO Power Distribution
- Light Pylon
- Euro Stinger - 144” (V70/V-100 only)
- Multi-Position Flipper Feet
- Rear Outrigger
- Heavy Duty Tire Lift
- Tire Lift Storage Brackets
- Fork Risers
- Pintle Hook Attachment
- 5th Wheel Plate (Requires Pintle Hook Attachment)
- King Pin Attachment (Requires Pintle Hook Attachment)
- Trailer Ball Adapter (Requires Pintle Hook Attachment)
- Additional Lift Forks
- Underlift Light Kit (LED)
- Additional Lighting
- Side Work Lights
- Chain Package
- Endless Loop Sling Package
- Screw Pin Shackle Kit
- Spreader Bars
- Tailboard Underlift Controls
- 3 or 4 Drawer Toolbox
- Water Tank Kit
- Snatch Blocks
- Wide Load Light Bar
- Dual Camera & Monitor
- Convenience Groups
- Aluminum Dress Up Kits
- Installation
- 22,000 lb Under Boom Auxilary Winch
Specifications
Boom—3 Stage
| Boom Structural Rating (S.A.E.) | Retracted 35˚ | 100,000 lbs. |
| Boom Structural Rating (S.A.E.) | Extended 35˚ | 18,000 lbs. |
| Maximum Angle | 35˚ | |
| Maximum Hook Height | 304” | |
| Hydraulic Boom Extension | 216” |
Underlift
| Feature | V-100 Standard | V-100 Euro-Stinger |
| Capacity Fully Extended to C.L. of Forks | 18,000 lbs. @ 116” | 18,000 lbs. @ 144” |
| Capacity Fully Retracted to C.L. of Forks | 55,000 lbs. @ 60” | 55,000 lbs. @ 67” |
| Underlift Tilt | 18° | 18° |
| Tow Rating | 80,000 lbs. | 80,000 lbs. |
Winch
| Main Winch | Auxiliary 3rd Winch | |
| Winch Capacity | 50,000 lbs. | 22,000 lbs. |
| Winch Type | Dual Planetary Winch | Planetary Winch |
| Cable Specifications | 3/4” x 250’ | 5/8" x 150' |
| Cable Type | 6X37 I.W.R.C. | I.W.R.C. |
Body
| Feature | V-100 Tandem Axle | V-100 Tri Axle |
| Common Body Configuration | 160” C.B. | 180” C.B. |
| Additional Body Configurations | 180” / 200” / 220” C.B | 200” / 220” C.B. |
Chassis Recommendation
| Front Axle | 14,600 lbs. | |
| Rear Axle | 40,000 lbs. | |
| Clear C.A. to C.B. | 156” – 220” C.B. | |
| After Frame from Center of Rear Axle | 36” | |
| RBM | 3,000,000 in/lbs. |
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
