Century 1150
50 Ton Heavy Duty Rotator Wrecker
With the call for quick clearance on congested roadways and to handle a variety of difficult recovery and lifting jobs, Century is the number one choice worldwide. As the only manufacture of recovery equipment that designs specifically for towers needs and safety, we are proud to offer the 1150, a 50 ton rotator ideal for heavy recovery with a weight saving design for your daily towing.
Like the Century 1075, the 1150 features 360° of continuous boom rotation, a 3-stage recovery boom, optional deck and turret mounted winches and field tested and proven SDU-4 underlift.

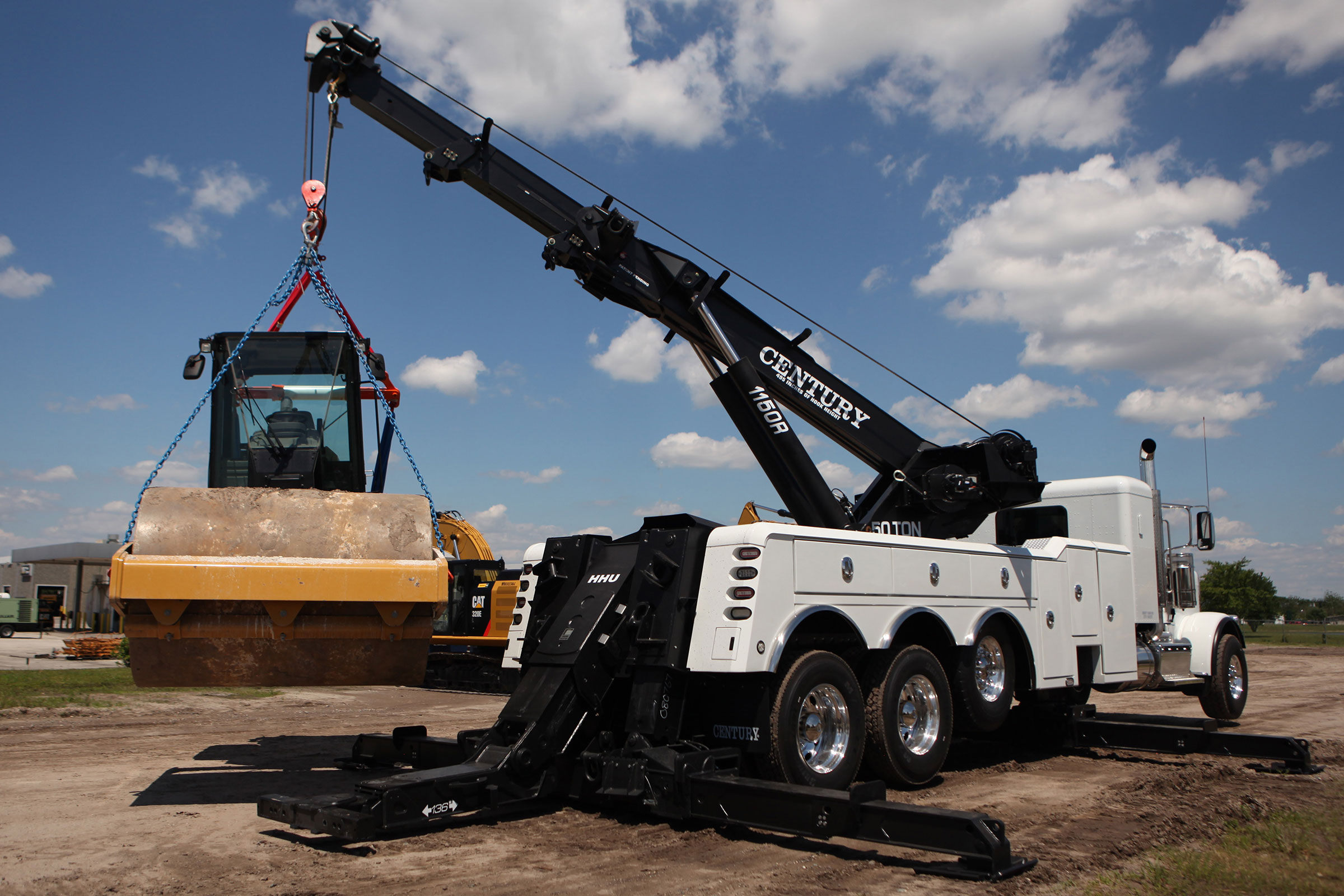

The 1150 technology is also available in the Century 1150R that features a unique patented roller system that allows the boom to travel up to 60”. The low maintenance roller system has the ability to start and stop under heavy loads, even while rotating.
The 1150R also features our patented Raptor™ Wireless Proportional Controls* which includes wrecker controls extendible away from the vehicle to enhance operator sightlines during use, and an information screen with load sensing functions.
* USPN 9440577, D751,963 S and D752,492 S
Features
Body—All 1150 Models
- 180” Aluminum Modular Body
- Compartments Over the Wheel Wall
- Double Panel Doors
- Door Checks
- Double Action Latches with Keys & Power Door Locks
- LED Federal #108 Lighting
- LED Toolbox Lighting
- Rubber Fenderettes
- Mud Flaps
- Chain Rack
- Fork Holders & Attachment Storage
- Rubber Body Isolators
- Rigid Torsional Resistant
- Mounting Frame (1150R)
- Tailboard Mounted D-Rings
- Two Rear Outrigger Spade Attachments with D-Rings
- Rear Air & Electrical Hook-Ups
- Power Elevation
- 360° Continuous Boom Rotation
- Proportional 2 Stage Power Boom Extension with Counter Balance Valve
- Hydraulic Reservoir with an Oil Level Sight Gauge, Tank Drain, & Access Panel
- Nylatron Boom Slide Pads
- Holding Valves for Boom Elevation & Extension
- Dual 2-Speed Winches
- Cable Tensioners
- Winch Air Free Spool
- House Lock Window (Driver Side)
- Boom Angle Indicator
- Hydraulic 3-Stage Front Outriggers
- Hydraulic Rear Outriggers with Removable Pads
- Air Activated House Lock, Secures Boom for Transport in Rear or Forward Position
- House Lock Indicator
- Hydraulic Pump
- 360° Sheave Head
- Dual Control Stations
- Hydraulic Pressure Gauges (Driver Side)
- 2 D-Rings Mounted on 1st, 2nd, and 3rd Stage
- Safety Chain Rollers
- Pylon
- Large Outrigger Pad
- Quick Connect Air
1150/1150R/1150RXP
1150
- Dual 50,000 Planetary Winches
- 360° Continuous Boom Rotation
- Optional Knee Boom Underlift (4-stage rear legs, 4-state outrigger)
- Optional Dual H-Beam Outriggers (HHU Underlift)
1150R
- 60" of Front to Rear Turret Travel
- Raptor™ Remote Package Standard
- Tailboard Underlift Controls
- Optional Dual H-Beam Outriggers (HHU Underlift)

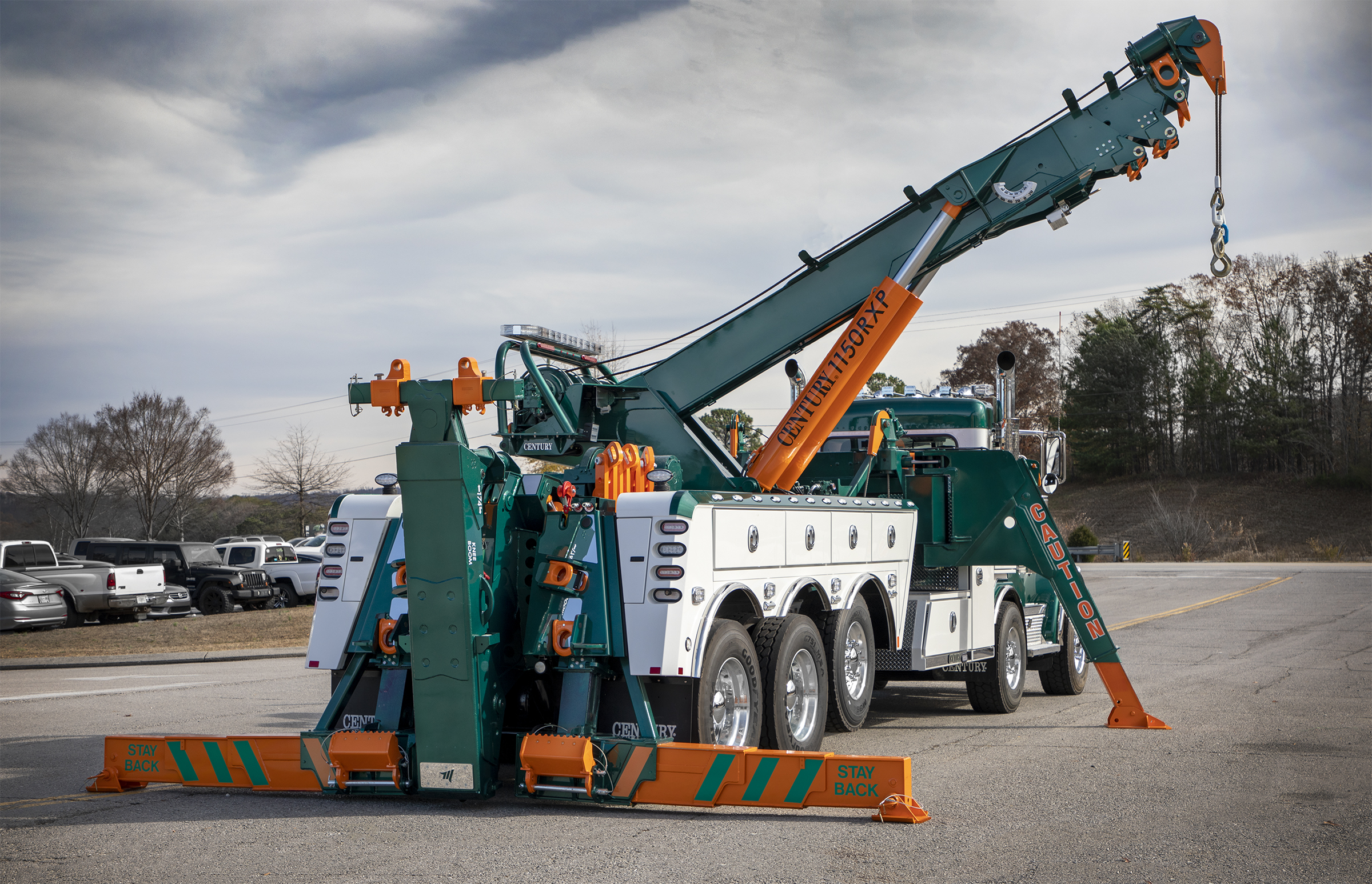

1150 RXP
- (2) 35,000 lb 2-Speed Planetary Winches
- Air Free Spool
- Air Tensioner
- Directional Sheave Head
- Recovery D-Ring
- Optional Knee-Boom Underlift (4-Stage Rear Legs)
Auxiliary Winch Options
- Dual 22,000 lb. Turret Mtd. Winches (1150/1150R)
- Single 35,000 lb. Drag Winch (1150, 1150 RXP)
- Single 50,000 lb. Drag Winch (1150, 1150RXP, & 1150R when equipped with 4-stage rear outriggers)
- Dual 35,000 lb. Drag Winches (1150)
Knee-Boom Option
- 55,000 lb. Retracted Lifting Capacity
- 83 1/2" Retracted Length
- 173 3/4" Extended Length
- Underlift Tilt: +16°/ -23°
- "Not Available" on 1150R
- "Not Available" on Dual-H Beam
Underlift
- SDU-4 Low Rider
- Power Elevation
- Power Extension
- Power Tilt
- Hydraulic Fold
- 3-Stage Design
- 2 Piece Pivot Pin
- Upper/Lower Thrust Washer
- Low Profile Heavy-Duty Crossbar
- 70° Pivoting Crossbar
- Rotator D-Ring Package
- Low Profile Fork Holders
- 9 Pairs of Cast Steel Forks
- 1 Pair of Spring Lift Adapters
- Safety Chains in Tailboard
- Rear 4 Stage Outriggers - 220” stance
- Front Mounted 3 Stage H-Beam Outriggers - 262” stance (Not Available RXP)
Optional
- SDU-4 Coach Low Rider
- Front Outrigger Side Pull Attachment
- Chain Package
- Endless Loop Sling Package
- Alloy Foundry Hooks
- Alloy Shackles
- Alloy Snatch Blocks
- Spreader Bar
- Dual Rear Cameras & Monitor
- Air Shift PTO
- 24”, 30”, 36” 48” Saddle Tunnel Box
- Convenience Group (Rails)
- Pintle Hook Attachment
- 5th Wheel Plate (Req. Pintle Hook Attachment)
- Trailer Ball Adapter (Req. Pintle Hook Attachment)
- Heavy-Duty Tire Lift
- XHD Tire Lift (25k Capacity)
- Offset Fork Holder Extensions
- Fork Riser Brackets
- Chain Hook Slide Adapter
- Additional Lift Forks
- Chain Rack Carousel
- Stainless Steel Fenderettes
- Dual H-Beam Outriggers - 262” stance (1150, 1150R)
- Aluminum Dress-Up Kits
- Winch Bucket Mounted Aluminum Tubular Pylon
- Manual Override Control for PTO
- 3 or 7 Drawer Toolbox w/ Tote Case
- Water Tank Kit
- Whelen LED Light Bars
- Flasher Kit
- Boom Scene Lights
- LED Work & Hook-Up Lighting
- Wide Load Light Bar
- LED Side Lights
- LED Body Strip Lights
- Additional Lighting Options
- Installation
Optional Controls —1150 & 1150RXP
- MMGO (Load Sensing)
- Backlit Controls
- Radio Proportional Controls with Single Mounted Controls (includes backlit controls)
- Raptor™ Package (Standard on 1150R)
- Right Hand Manual Controls
- Tailboard Underlift Controls (Standard on 1150R)
Raptor™ Package
The patented Raptor™ Control Package* is standard on the Century 1150R and optional on other rotator models. The operator can easily maneuver through operations at the unit control station, which can be extended away from the vehicle to enhance operator sightlines during use, or on the wireless remote. Joystick controllers operate boom and winch functions and a display screen offers a variety of information including load sensing, free spool and 2-speed operations.
* USPN 9440577, D751,963 S and D752,492 S
Specifications
Boom
| Capacity (Retracted) | 100,000 lbs. | |
| Capacity (Extended) | 25,000 lbs. | |
| Extension | 248” | |
| Rotation | 360° | |
| Maximum Angle | 66° | |
| Maximum Height | 495” |
Winch Rating & Cable
| Winch Type | Planetary (2-speed) | |
| Winch Capacity (1st layer of drum) | 50,000 lbs. | |
| Wire Rope | 3/4” x 250’ IWRC | |
| Winch Free Spool | Air Operated | |
| Cable Tensioners | Air |
Optional Drag & Auxiliary Ratings
| Component | 50K | Dual 35K | Dual 22K Turret |
|---|---|---|---|
| Winch Capacity | 50,000 lbs. Drag | Dual 35,000 lbs. | Turret-Mounted Dual 22,000 lbs. |
| Winch Type | Planetary 2-Speed | Planetary 2-Speed | Planetary Single Speed |
| Cable, 6 x 37 IWRC | 3/4” x 200’ | 5/8” x 200’ | 5/8” x 200’ |
| Air Cable Tensioner | Air | Air | Air |
Underlift Specifications
| Capacity Fully Extended |
Capacity Fully Retracted |
Underlift Tilt |
|
|---|---|---|---|
| Low Rider | 17,000 lbs. @ 143 1/2" | 55,000 lbs. @ 54" | 10°+10°- |
| SDU-4 Coach Low Rider |
18,000 lbs. @ 165 1/2" | 55,000 lbs. @ 66" | 10°+10°- |
| Knee Boom (Std) | 18,000 lbs. @ 157" | 55,000 lbs. @ 67" | 16°+23°- |
| Knee Boom (Coach) | 18,000 lbs. @ 173 3/4" | 55,000 lbs. @ 83" 1/2" | 16°+23°- |
| HHU | 15,000 lbs. @ 130" | 45,000 lbs. @ 51" | 20°+ |
* Tire lift increases reach 12" to 16" to C.L. of tire lift arm.
Recommended Minimum* Chassis Specifications
| 1150 | 1150R | 1150RXP | |
|---|---|---|---|
| Front Axle | 20,000 lbs. | 20,000 lbs. | 20,000 lbs. |
| Rear Axle | 46,000 lbs. | 52,000 lbs. | 46,000 lbs. |
| Clear C.A./C.B. | 180” | 180” | 204” |
| After Frame from Center of Rear Axle | 40” | 40” | 40” |
| RBM | 4,000,000 in/lbs. | 4,000,000 in/lbs. | 4,000,000 in/lbs. |
* All recommendations are minimums, heavier specifications may be required depending on chassis and equipment weight. Always consult your local distributor or the factory for additional information.
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
