Special Transport SP Series SP Series SP 20,000
SP 20,000 Gallery

Contact Us

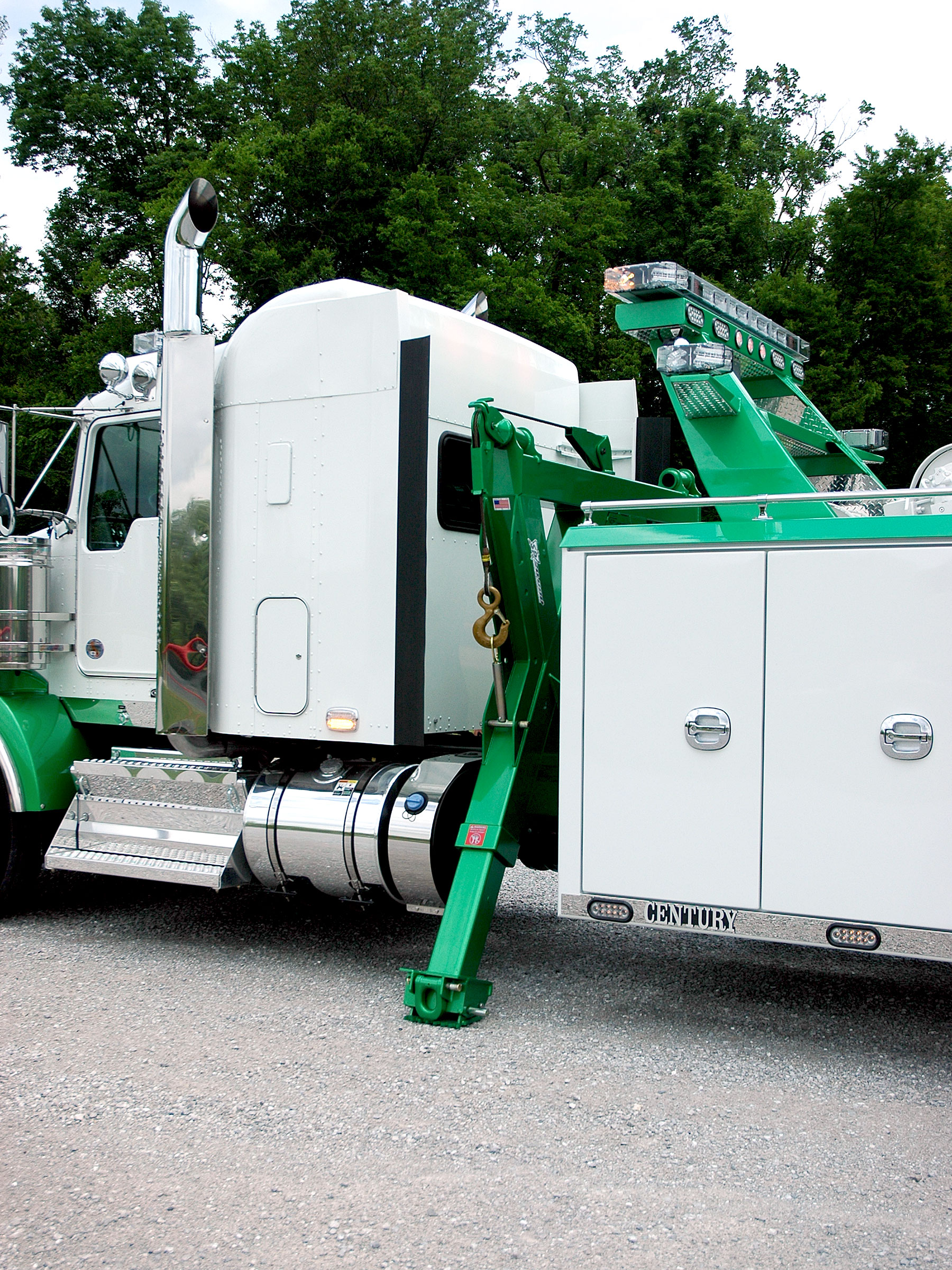

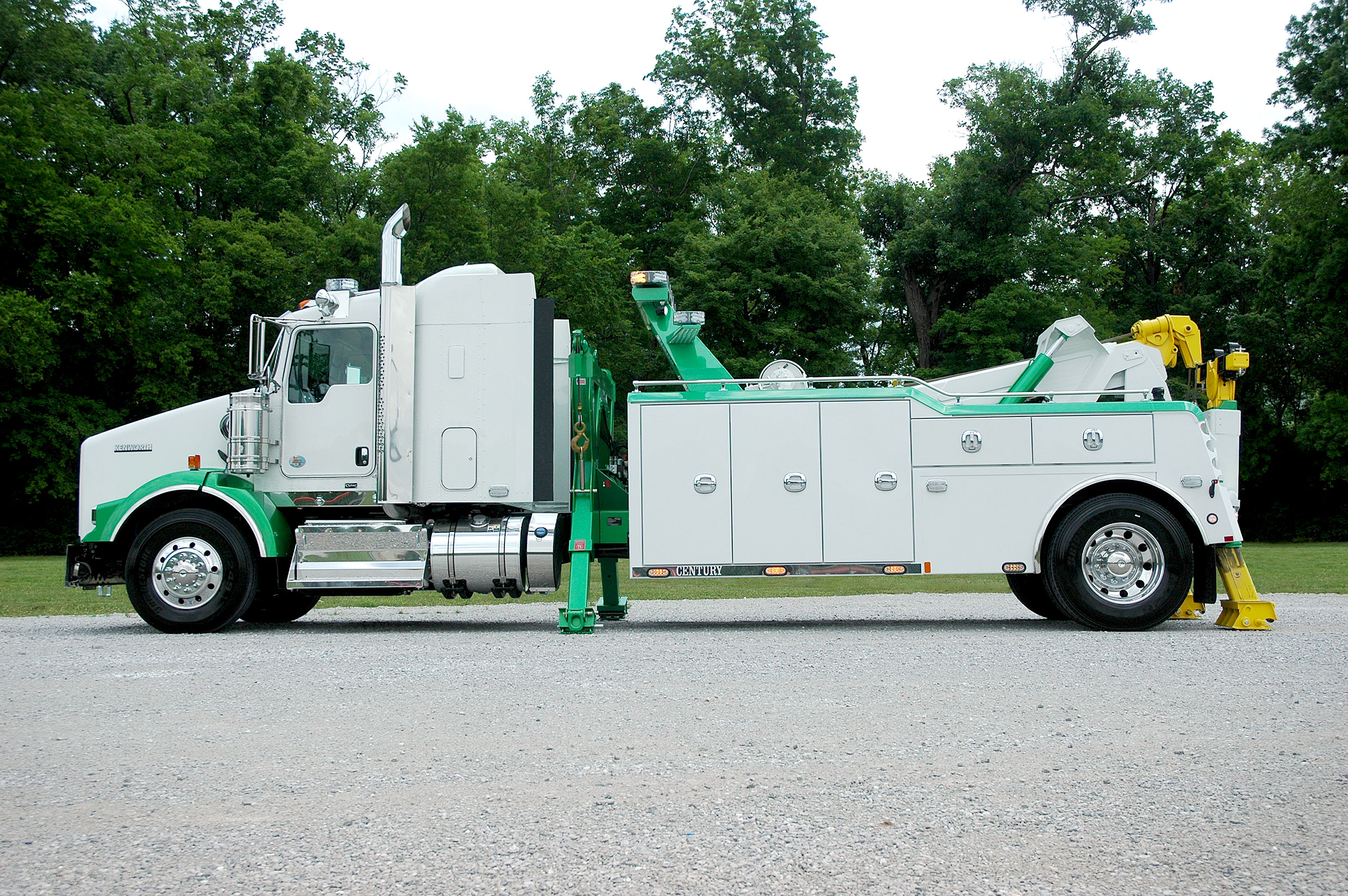

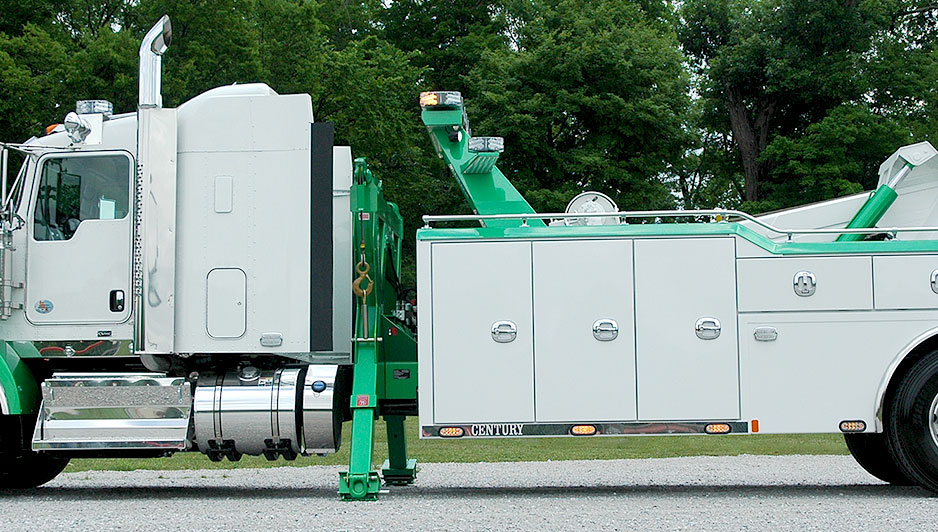

SP 20,000—Car carriers have been increasingly popular over the recent years due to the growing number of all wheel drive vehicles, their versatility to haul varied loads, and the ability to transport multiple vehicles.

The SP 12,000 can be installed on a medium-duty tow truck and industrial carriers or a heavy duty unit the SP 20,000 is available with 20,000 lb capacity. Add recovery capabilities and versatility to your next unit with a SP Sidepuller.



  • 20,000 lbs. Planetary Winch
  • Center Pivoting Boom Head
  • Winch Tensioner & Air Free-Spool
  • Removable Outer Boom Head
  • Hydraulic Stiff Legs
  • Wire Rope 9/16” x 150’
  • Flipper Foot Spades
  • Full Function Wired Remote with 20’ Cord
  • Eight Tie-Back Points
  • Primer Finish
  • Two Removable D-Rings


  • Lightbar Mount


SP 20,000 Ratings

Boom 20,000 lbs.
Winch 20,000 lbs.
Stiff Leg 20,000 lbs.
Weight 1,355 lbs.

Chassis Recommendations

Minimum GVRW 30,000 lbs.
Additional C.A. Required 27”
Frame Height 40” – 46”

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
