Vulcan 975
Vulcan 975

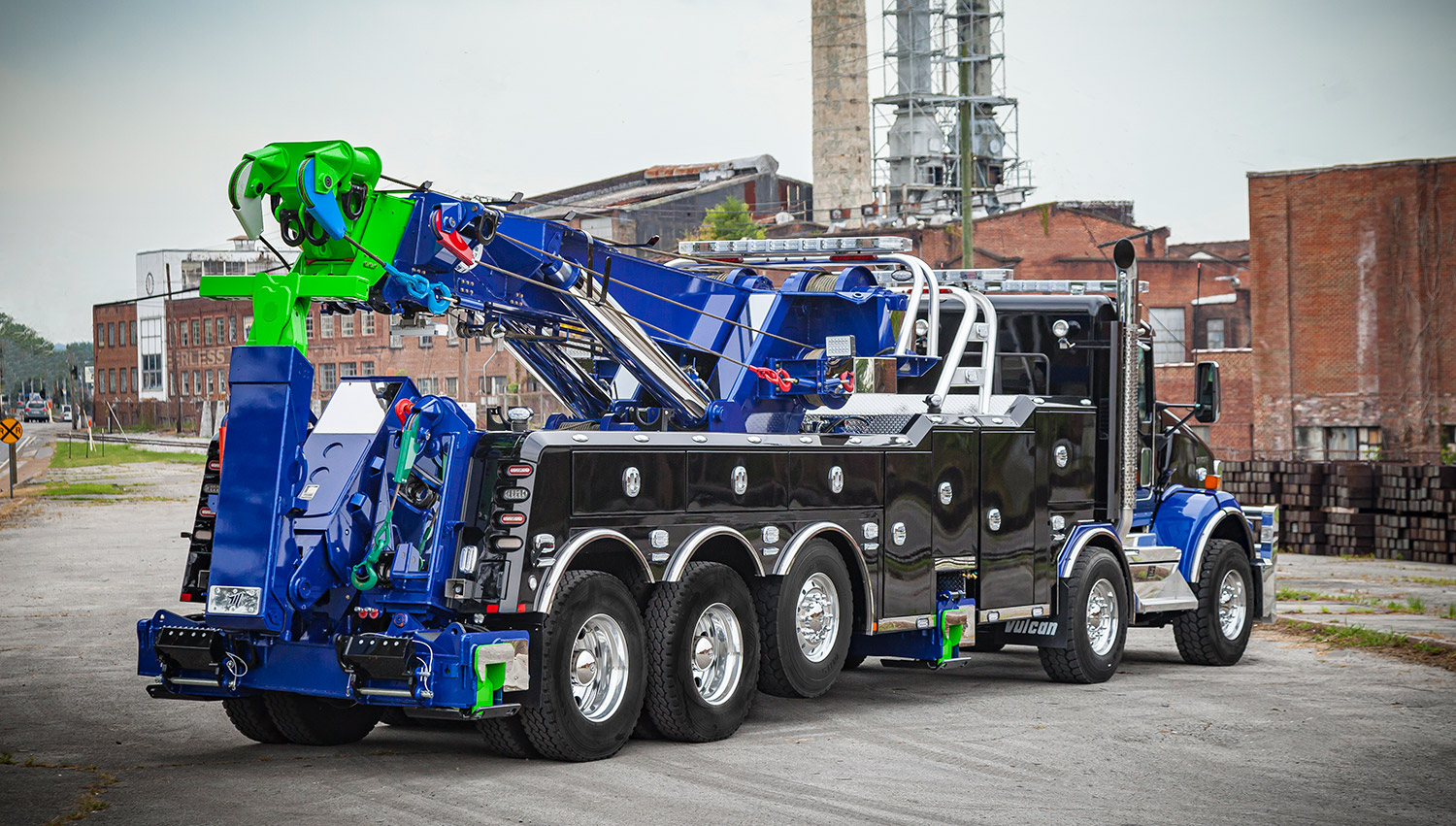

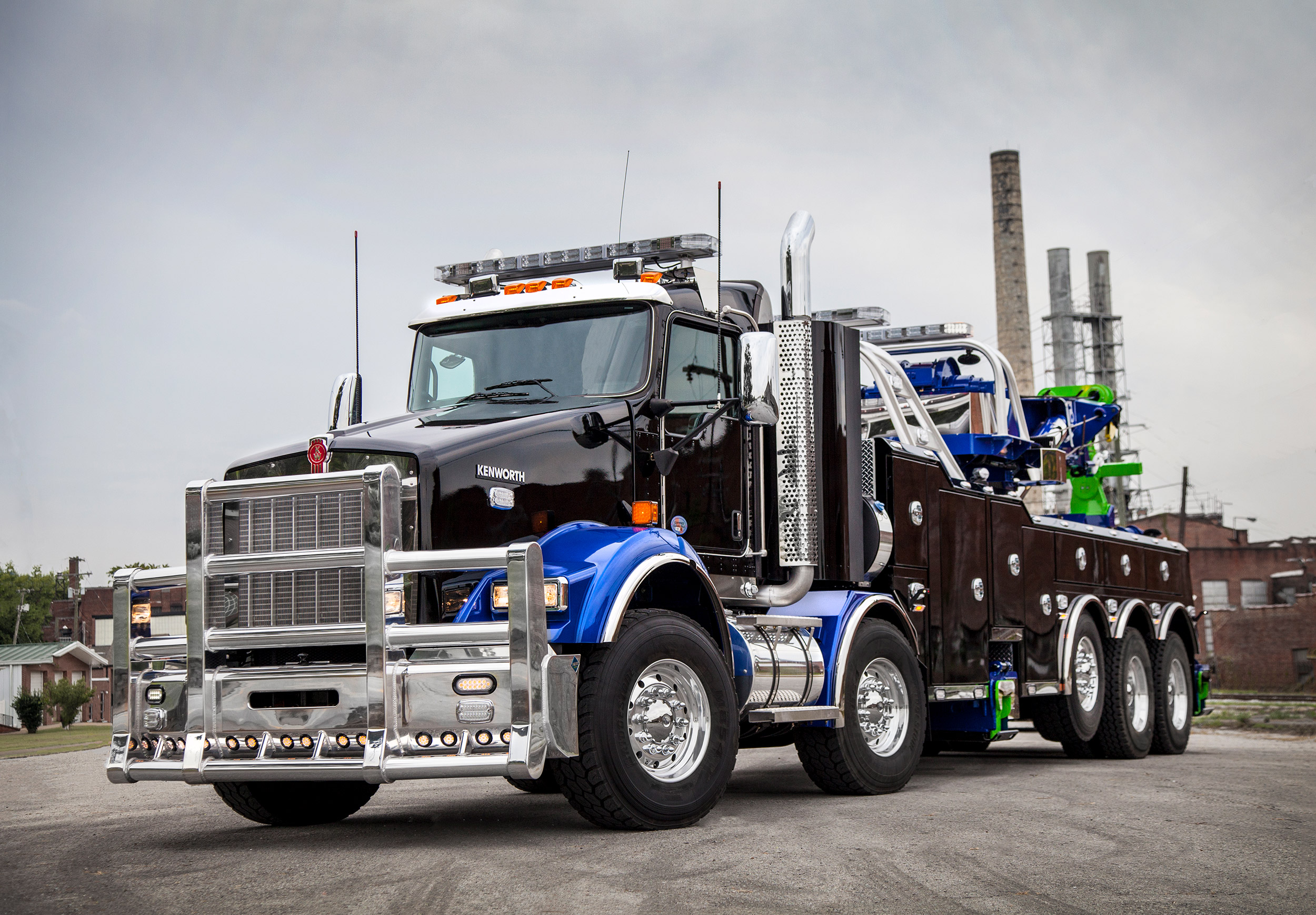

75 Ton Heavy Duty Rotator Wrecker
Brutally Tough. That's the best way to descibe Vulcan heavy-duty towing and recovery equipment. For generations, Vulcan has been known for superior quality and design. Vulcan understands the importance of providing towers with the ultimate piece of equipment for both towing and recovery applications alike.
The Vulcan 975 durable, field-proven underlift operates independent of the recovery boom. And for your more demanding recoveries, the ruggedly powerful three-stage recovery boom is fabricated from high-tensile steel to save weight without sacrificing strength. Finally, Vulcan offers a variety of outrigger systems for stabilizing your rotator during the really heavy lifts.
Combine this strength and versatility with high-end features such as lightweight aluminum tool compartments that maximize storage for your additional towing and recovery equipment, and you can see why the Vulcan 975 will be the perfect addition to your heavy duty towing and recovery fleet.
Features
Top of PageStandard
- Aluminum Modular Body w/Rubber Mounting Isolators
- Chrome Double Action Latches w/Remote Lock/Unlock
- House Lock Window
- Adjustable Shelves
- LED Body Lighting
- Lift Fork Storage
- LED Tool Compartment Lighting
- Chain Storage
- Gas Door Shocks
- Tailboard Fork & Chain Storage
- Aluminum Tread-Plate Walkway
- Mud Flaps
- Driver Side Manual Controls
- Rear Outriggers
- Pressure Gauges
- 2 Position House Lock
- Hour Meter
- Hydraulic Pump
- Front Outriggers
- Air & Electric Hook Up
- 212” Top Beam Front Outrigger
- 4-Stage Rear Outrigger
- Large Outrigger Pads
- Rotator Pylon
- D-Ring Package
- Quick Connect Air
- Safety Chain Roller
Boom
- 360° Continuous Boom Rotation
- Cable Tie Backs
- Power Elevation
- Dual 2-Speed Planetary Winches
- Power Extension
- Cable Tensioners
- 360° Sheave Heads
- Winch Air Free Spool
- Boom Mounted D-Rings & Cam Locks
Underlift
- SDU-4 Standard Low Rider
- Power Tilt
- Low Profile Fork Holders
- Hydraulic Fold
- Pivoting Spring Lift Adaptors
- 3-Stage Design
- Chain Hook End Caps
- 8 FXN Wireless Remote Control w/Charging/Docking Station
- Low Profile 70° Pivoting Heavy Duty Fabricated Cross Bar
- SDU-4 (Except Dual H-Beams)
- HHU (Rear H-Beam Only)
- 9 Sets of Cast Steel Forks: Short Axle Fork, 3” Short, 3” Medium, 3” Tall, 4 1/2” Short, 4 1/2” Medium, 4 1/2” Tall, 6” Short Offset, Round Axle Fork
Optional
- Patented Raptor® Control* Package
- Front Outriggers: 212” 2-Stage H-Beam, 262” 3-Stage H-Beam
- Underlift Options: SDU/4 Coach Low Rider, HHU Coach Low Rider, Underlift Delete
- Rear H-Beam Outriggers
- Drag Winch: 35K, Dual 35K, 50K, Dual 22K Turret Winches
- MVEC Power Distribution
- Red Backlit Control Station
- Right Hand Manual Controls
- Wireless Proportional
- Rotator D-Ring Package: (4) Additional Tailboard D-Rings, (1) Turret D-Rings, (2) Cable Tie Backs, (2) Wrecker Frame D-Rings
* USPN 9440577, D751,963 S and D752,492 S
Raptor® Control Package
The patented Raptor® Control Package* is optional on the Vulcan 975. The operator can easily maneuver through operations at the unit control station, which can be extended away from the vehicle to enhance operator sightlines during use, or on the wireless remote. Joystick controllers operate boom and winch functions and a display screen offers a variety of information including load sensing, free spool and 2-speed operations.
* USPN 9440577
Specifications
Boom
| Boom Structural Rating (S.A.E.) | Retracted 30° | 75 Ton |
| Boom Structural Rating (S.A.E.) | Extended 30° | 36,000 lbs. |
| Boom Angle | 60° | |
| Maximum Hook Height | 499” | |
| Hydraulic Boom Extension | 264” |
Winch Rating & Cable—1075S & 1075S Dual H-Beam
| Winch Capacity | 60,000 lbs. | |
| Winch Type | Dual Planetary Winches | |
| Cable Specifications | 7/8” x 250’ | |
| Cable Type | 6X37 I.W.R.C. |
Optional Drag & Auxilary Winch Ratings
| Component | 5K | Dual 35K | Dual 22K Turret |
|---|---|---|---|
| Winch Capacity | 50,000 lbs. | Dual 35,000 lbs. | Turret-Mounted Dual 22,000 lbs. |
| Winch Type | Planetary 2-Speed | Planetary 2-Speed | Planetary |
| Cable, 6 x 37 IWRC | 3/4” x 250’ | 5/8” x 200’ | 5/8” x 200’ |
| Air Cable Tensioner | Air | Air | Air |
Underlift
| Component | 1075S | 1075S Dual H-Beam |
|---|---|---|
| Extended | 17,000 lbs. (143.5”) | 15,000 lbs. (130”)* |
| Retracted | 55,000 lbs. (54”) | 45,000 lbs. (51”) |
| Tilt Arc | +20° | +20° |
| Tow Rating | 80,000 lbs. | 80,000 lbs. |
*When ordered with the Coach Low Rider Option, the 1075S Dual H-Beam provides 138” of reach.
Recommended Minimum* Chassis Specifications
| Front Axle | Tandem-steer / Consult Factory. |
| Rear Axle | 52,000 lbs. |
| Clear C.A. / C.B. | 180" |
| After Frame from Center of Rear Axle | 40" |
| RBM | 4,000,000 in/lbs. |
*All recommendation are minimums, heavier specifications may be required depending on chassis and equipment weight. Always consult your local distributor for additional information.
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
