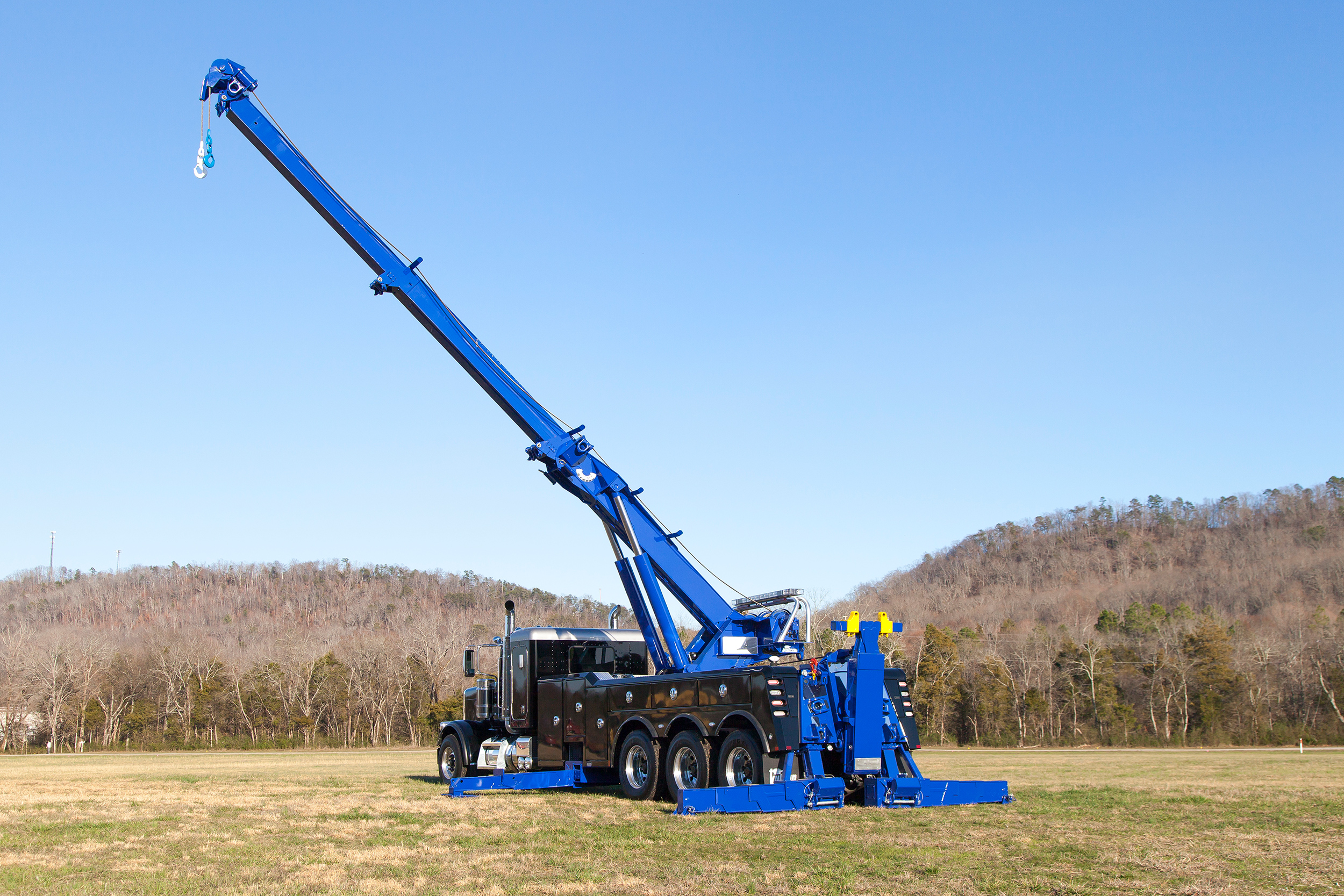

Vulcan 950
50 Ton Heavy Duty Rotator Wrecker
Like the Vulcan 975, the 950 features 360° of continuous boom rotation, a 3-stage recovery boom, optional deck and turret mounted winches and field tested and proven SDU-4 underlift.
The 950 technology is also available in the Vulcan 950R that features a unique patented roller system that allows the boom to travel up to 60”. The low maintenance roller system has the ability to start and stop under heavy loads, even while rotating.
The 950R also features our patented Raptor™ Wireless Proportional Controls* which includes wrecker controls extendible away from the vehicle to enhance operator sightlines during use, and an information screen with load sensing functions.
* USPN 9440577
Features
Body—All 950 Models
- Aluminum Modular
- Body Mud Flaps 180” C.B.
- Chain Rack
- Large Forward Compartments
- Fork Holders
- Compartments Over the Wheel Wall
- Attachment Storage
- Double Panel Doors
- Rubber Isolators
- Door Checks
- Tailboard Mounted D-Rings
- Double Action Latches w/Keys & Power Locks
- Rigid Torsional Resistant Mounting Frame
- LED Federal #108 Lighting
- Two Rear Outrigger Spade Attachments with D-Rings
- LED Toolbox Lighting
- Rear Air & Electrical Hook-Ups
- Rubber Fenderettes
- Power Elevation
- Boom Angle Indicator
- 360° Continuous Boom Rotation
- Hydraulic Front Outriggers
- Proportional 3 Stage Power Boom Extension with Counter Balance Valve
- Hydraulic Rear Outriggers with Removable Pads
- Hydraulic Reservoir with an Oil Level Sight Gauge, Tank Drain & Access Panel
- Air Activated House Lock, Secures Boom for Transport in Rear or Forward Position
- Nylatron Boom Slide Pads
- House Lock Indicator
- Holding Valves for Boom Elevation & Extension
- Hydraulic Pump
- Dual 2-Speed Winches
- 360° Sheave Heads
- Cable Tensioners
- Dual Control Stations
- Winch Air Free Spool
- Hydraulic Pressure Gauges (Driver Side)
- House Lock Window (Driver Side)
- Large Outrigger Pads
- Rotator Pylon
- D-Ring Package
- Quick Connect Air
- Safety Chain Roller
RXP Option
- (2) 35,000 lb 2 Speed Planetary Winches
- Directional Sheave Head (1 per Leg)
- Air Free Spool (1 per Winch)
- Recovery D-Ring (1 per Leg) Air Tensioner (1 per Winch)
Underlift
- Power Elevation
- Low Profile Heavy Duty Crossbar
- Power Extension
- 70° Pivoting Crossbar
- Power Tilt
- Low Profile Fork Holders
- Hydraulic Fold
- 9 Pairs of Cast Steel Forks
- 3-Stage Design
- 1 Pair of Spring Lift Adapters
- 2-Piece Pivot Pin
- Safety Chains in Tailboard
- Upper/Lower Thrust Washer
- Fork Riser Brackets
Optional
- Coach or Street Low Rider Underlift
- Stainless Steel Fenderettes
- Front Outrigger Spade Attachment
- Chain Rack Carousel
- Chain Package
- Stainless Steel Fenderettes
- Endless Loop Sling Package
- Front Mounted 3 Stage H-Beam Outriggers 262” Stance (Std. 950R/Not Available RXP)
- Alloy Foundry Hooks
- Front Mounted 2 Stage H-Beam Outriggers 212” Stance (950)
- Alloy Shackles
- Rear 4 Stage Outriggers - 220” Stance
- Alloy Snatch Blocks
- Dual H-Beam Outriggers - 262” Stance (950, 950R)
- Spreader Bar
- Rotator D-Ring Package
- Dual Rear Cameras & Monitor
- Manual Override Control for PTO
- Air Shift PTO
- 7 Drawer Toolbox
- 24”, 30”, 36”, 48” Saddle Tunnel Box
- Water Tank Kit
- Convenience Group (Rails & Steps)
- Light Bar
- Pintle Hook Attachment
- Flasher Kit
- 5th Wheel Plate (Req. Pintle Hook Attachment)
- Boom Scene Lights
- Trailer Ball Adapter (Req. Pintle Hook Attachment)
- LED Work & Hook-Up Lighting
- Heavy-Duty Tire Lift
- Wide Load Light Bar
- XHD Tire Lift (25k Capacity)
- LED Side Lights
- Offset Fort Holder Extensions
- LED Body Strip Lights
- Additional Lighting
- Chain Hook Slide Adapter
- Installation
- Additional Lift Forks
Optional—950 & 950RXP
- MMGO (Load Sensing)
- Raptor™ Package (Standard on 950R)
- Backlit Controls
- Right Hand Manual Controls
- Radio Proportional Controls with Single Mounted Controls (includes backlit controls)
- Tailboard Underlift Controls
Raptor™ Remote Package
The patented Raptor™ Control Package* is standard on the Vulcan 950R and optional on other rotator models. The operator can easily maneuver through operations at the unit control station, which can be extended away from the vehicle to enhance operator sightlines during use, or on the wireless remote. Joystick controllers operate boom and winch functions and a display screen offers a variety of information including load sensing, free spool and 2-speed operations.
* USPN 9440577
Specifications
Boom
| Capacity | Retracted | 100,000 lbs. |
| Capacity | Extended | 25,000 lbs. |
| Extension | 248” | |
| Rotation | 360° | |
| Maximum Angle | 66° | |
| Maximum Height | 495” |
Winch Rating & Cable
| Winch Capacity | 50,000 lbs. | |
| Winch Type | Planetary (2-speed) | |
| Cable Specifications | 3/4” x 250’ | |
| Cable Type | 6X37 I.W.R.C. | |
| Winch Free Spool | Air Operated | |
| Cable Tensioners | Air |
Underlift
| Feature | SDU-4 | SDU-4 Coach Low Rider |
| Capacity Fully Extended to C.L. of Forks | 17,000 lbs. @ 143.5” | 18,000 lbs. @ 165.5” |
| Capacity Fully Retracted to C.L. of Forks | 55,000 lbs. @ 54” | 55,000 lbs. @ 66” |
| Underlift Tilt | -10° / +10° | -10° / +10° |
Recommended Minimum* Chassis Specifications
| Feature | 950 | 950R | 950RXP |
|---|---|---|---|
| Front Axle | 20,000 lbs. | 20,000 lbs. | 20,000 lbs. |
| Rear Axle | 45,000 lbs. | 52,000 lbs. | 45,000 lbs. |
| Clear C.A./C.B. | 180” | 180” | 204” |
| After Frame from Center of Rear Axle | 40” | 40” | 40” |
| RBM | 4,000,000 in/lbs. | 4,000,000 in/lbs. | 4,000,000 in/lbs. |
* All recommendations are minimums, heavier specifications may be required depending on chassis and equipment weight. Always consult your local distributor or the factory for additional information.
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
