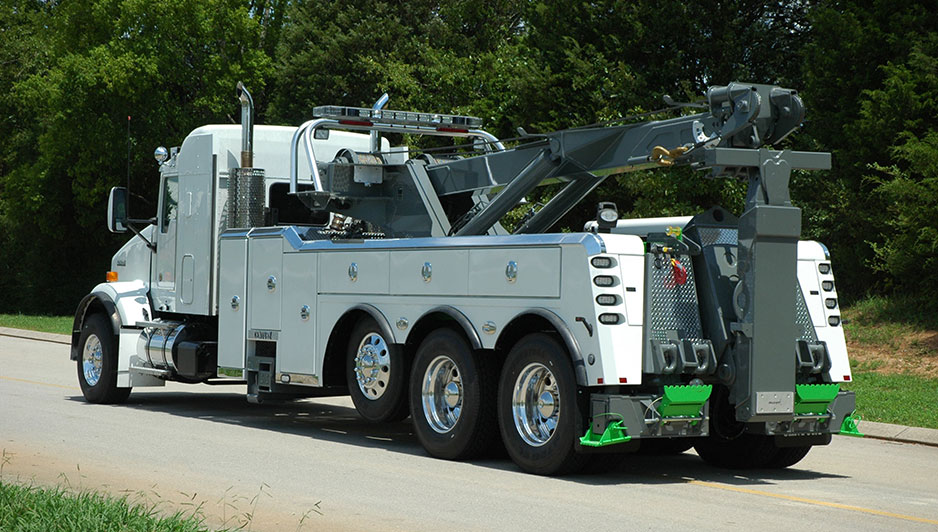

Vulcan 935 & 940
Features
Body—Standard
- 180” C.B. Aluminum Modular Body
- Chain Rack & Fork Holders
- Power Distribution System - MMO (940)
- Rubber Isolators
- Compartments Over the Wheel Wall
- Enclosed Inner Wheel Wells
- Double Action Latches
- Rigid Torsional Resistant Mounting Frame
- Keyless Lock/Unlock Tool Compartments
- LED Toolbox & Lighting
- Flip Down Rear Outrigger Spades
- Large Outrigger Pads (H-Beam Only)
- Rotator Pylon
- Rotator D-Ring Package
- Quick Connect Air
- Safety Chain Roller Guide
Boom—Standard
- 360° Boom Rotation / 190° Each Direction
- Hydraulic Front Outriggers
- Proportioning Power Boom Extension with Counter Balance Valve
- Hydraulic Rear Outriggers (176”-935 / 220” - 940)
- 12 Function Keypad (935)
- Air Activated House Lock
- MMO System (940)
- House Lock Indicator & Window
- Boom Elevation & Extension Holding Valve
- Air Activated House Lock, Secures Boom in Rear or Forward Position for Transport
- Boom Slide Pads
- House Lock Indicator & Window
- Boom Angle Indicator
- Hydraulic Pump
- Dual Control Stations
- 360° Sheave Heads
- Dual 2-Speed Winches
- Hydraulic Pressure Gauge (Driver Side)
- Cable Tensioners & Winch Air Free Spool
- "D" Rings Mounted on Each Stage
Underlift—Standard
- 8 Function Wireless Remote
- Upper/Lower Thrust Washer
- Power Elevation & Extension
- Low Profile Fork Holders
- Power Tilt & Hydraulic Fold
- 9 Pairs of Cast Steel Forks
- 3-Stage Design
- 1 Pair of Spring Lift Adapters
- Fabricated Low Profile 70° Pivoting Crossbar
- 1 Pair of Hook Adapters
- 2 Piece Pivot Pin
Optional
- Patented Raptor™ Control* Package
- 212” Two-Stage Under-frame "H-Beam" Front Outriggers
- SDU-4 Coach Lowrider (63.5” / 165.5”)
- 262” Three-Stage Under-frame "H-Beam" Front Outriggers (940 Only)
- Air Shift PTO
- 212” RXP Front Outriggers (204 TriAxle)
- Manual Override for PTO
- Additional Lift Forks & Attachments
- Outrigger Spade Attachments
- Dual 15K Turret Mounted Winches (940 Only, Exclude RXP Option)
- Tailboard Underlift Controls
- 25K or 35K Belly Drag Winch (935 Only)
- Chain & Strap Packages
- 35K or 50K Belly Drag Winch (940 Only)
- Load Sensing System
- Radio Proportional Illuminated Controls
- Rear Camera & Monitor (Dual)
- MMO Power Distribution System (Standard on 940)
- LED Boom Lights
- Right Hand Manual Controls
- Work & Hook-Up Lighting
- 24”, 30”, 36”, or 48” Tunnel Box
- Stainless & Aluminum Dress Up Kits
- Chain Rack for 36” or 48” Tunnel Box
- Tunnel Box Shelf (Except 24”)
- Tunnel Box Attachment Storage
* USPN 9440577, D751,963 S and D752,492 S
Raptor™ Control Package
The patented Raptor™ Control Package* is optional on the Vulcan 935 and 940. The operator can easily maneuver through operations at the unit control station, which can be extended away from the vehicle to enhance operator sightlines during use, or on the wireless remote. Joystick controllers operate boom and winch functions and a display screen offers a variety of information including load sensing, free spool and 2-speed operations.
* USPN 9440577, D751,963 S and D752,492 S
Specifications
Boom
| Feature | 935—2 Stage | 940—3 Stage |
|---|---|---|
| Boom Retracted | 70,000 lbs. | 80,000 lbs. |
| Boom Extended | 25,000 lbs. | 20,000 lbs. |
| Maximum Hook Height | 354” | 427” |
| Boom Extension | 130” | 216” |
| Maximum Angle | 60° | 60° |
| Boom Rotation from Stowed Position | 190° CW & CCW | 190° CW & CCW |
Winch Rating & Cable
| Feature | 935 | 935 / 940 (35K Winch Option) |
|---|---|---|
| Rating (First Layer, Each Winch) | 25,000 lbs. | 35,000 lbs. |
| Diameter and Length (Each Winch) | 5/8” x 200’ | 3/4” x 200’ |
Underlift
| Fully Retracted | 54” | 55,000 lbs. |
| Fully Extended | 144” | 17,000 lbs. |
| Tilt Arc | -20° / +20° | |
| Tow Rating | 80,000 lbs. |
Body Configurations
| 935 | 156” C.B. Tandem | |
| 935 / 940 | 180” C.B. Tandem | |
| 935 / 940 | 180” C.B. Tri Axle | |
| 940 RXP | 204” Tri Axle |
Chassis Recommendation
| GVWR | 54,000 lbs. | |
| Minimum C.B. | 156” (935) / 180” (940) | |
| Maximum Frame Height | 42” | |
| After Frame from Center of Rear Axle | 40” | |
| 935 RBM | 3,000,000 in/lbs. | |
| 940 RBM | 3,500,000 in/lbs. | |
| RXP RBM | 4,200,000 in/lbs. |
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
