V-24
Medium-Duty Muscle

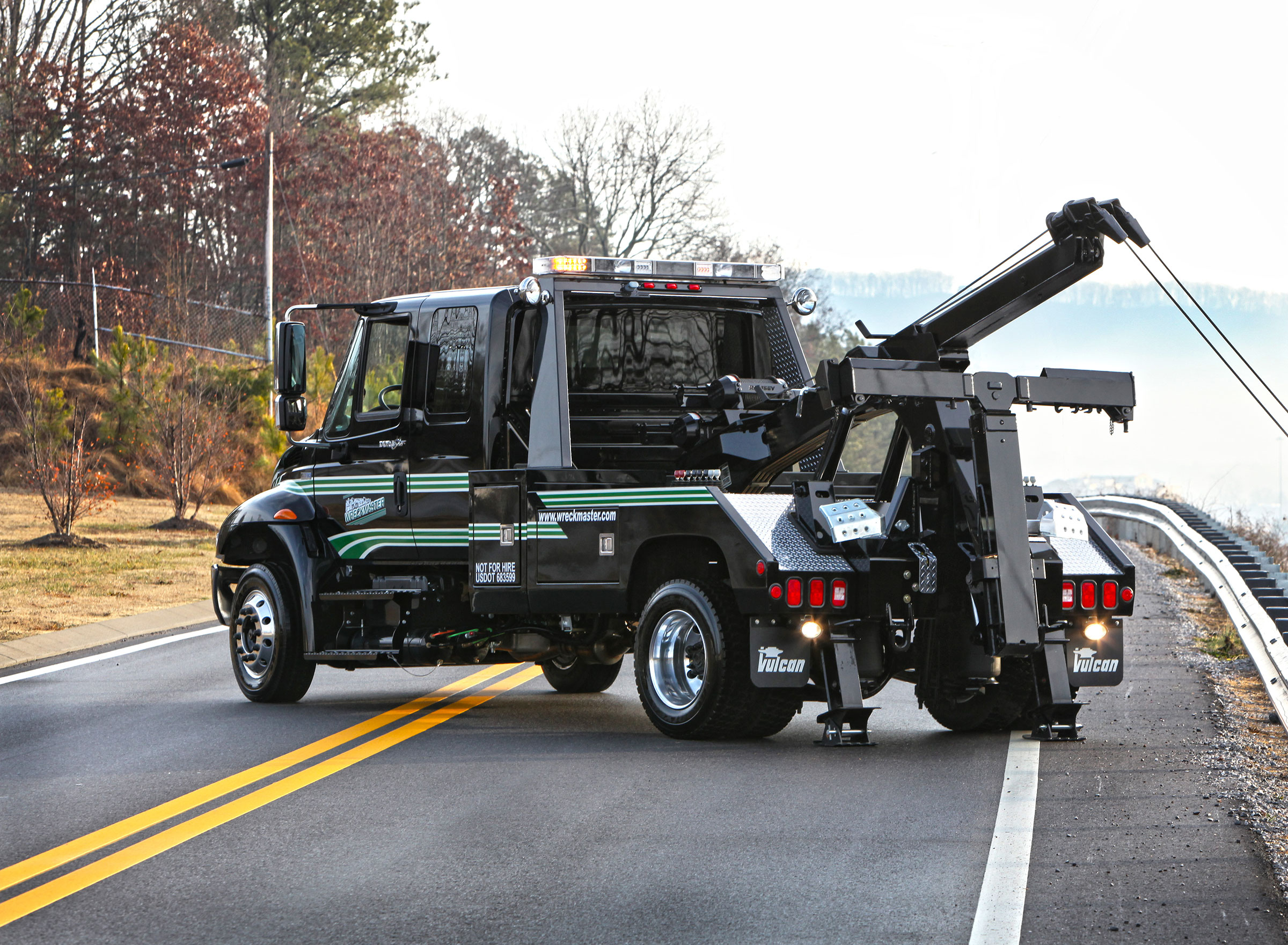

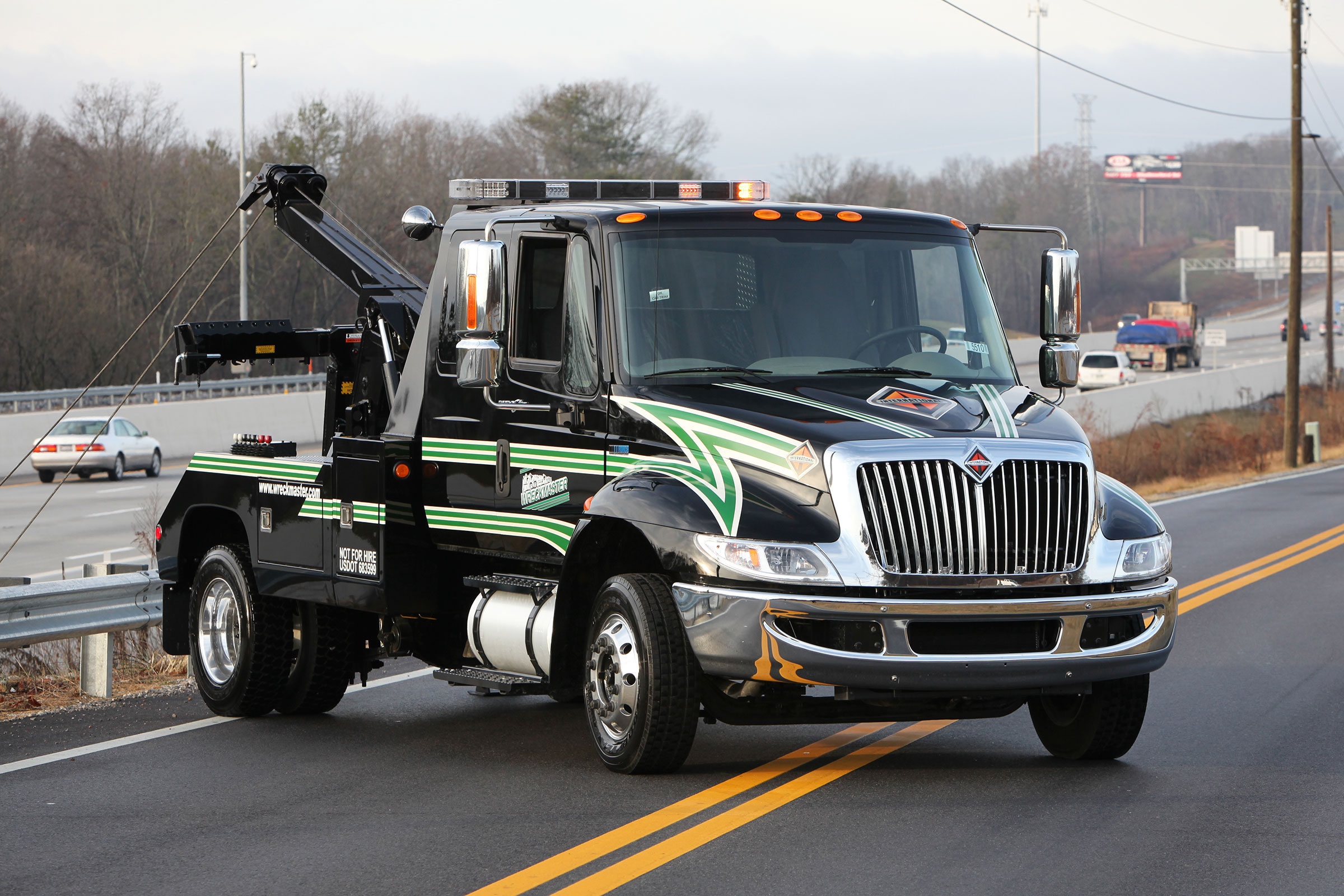

The Vulcan V-24 integrated towing and recovery unit has been designed to be an ideal match for the popular low-pro medium-duty chassis. The V-24 is equipped with twin 12,000 lb planetary winches and a recovery boom rated at 12 tons retracted and 5 tons extended.
The Vulcan V-24 is available in an 84" or 108" CA aluminum modular body that includes spacious tool compartments with a front tunnel box. The fabricated underlift is rated at 7,000 lb lift capacity at its fully extended reach using lifting forks. This makes it ideal for towing a wide variety of light- and medium-duty trucks, as well as automobiles.
Features
Standard
- 60” Aluminum Modular Body with 1 Compartment Per Side
- Safety Chains, 5/16 Grade 70
- 24” or 48” Aluminum Tunnel Box
- Safety Chain Storage Pockets
- Tandem Pump with Split Control Valves
- Hydraulic Rear Jacks with Flipper Feet
- Dual Control Stations
- 6,000 lb Vulcan Wheel Retainers
- Planetary Winches
- Wheel Retainer Storage Pockets
- Winch Cable Tensioners
- Low Pull "D" Rings
- Winch Free Spool Handles
- Federal Standard 108 Lighting
- 1 Set of 3” Lift Forks
- Mud Flaps
- 1 Set of Fork Receivers
Optional
- PTO
- Work Lights & Additional Lighting
- Lanyard Remote
- Light Pylon
- Additional Lifting Attachments
- Combination 5th Wheel/Pintle Hook
- Switch Panel
- Wide Load Light Bar
- Aluminum Dress-Up Kit
- Air & Electrical Hookups
Specifications
Boom
| Retracted | 24,000 lbs. | |
| Extended | 10,000 lbs. | |
| Maximum Angle | 40° | |
| Maximum Hook Height | 147” | |
| Maximum Reach past Tailboard Minimum Elevation | 72” |
Underlift
| Fully Retracted (with Forks) | 9,000 lbs. | |
| Fully Extended (with Forks) | 7,000 lbs. | |
| Extended or Retracted with L-Arms | 6,000 lbs. | |
| Underlift Reach to Center of Fork Holder on the Ground | ||
| Retracted | 42” | |
| Extended | 76” | |
| Positive Tilt | 28° | |
| Negative Tilt | 12° | |
| Tow Rating | 20,000 lbs. |
Winch Rating & Cable
| Rating (first layer of drum) each Winch | 12,000 lbs. | |
| Diameter and Length (each winch | 7/16” x 150' IWRC |
Chassis Recommendation
| SuggestedGVWR | 21,000 lbs.– 31,000 lbs. | |
| Cab to Axle (Clear) | 84” or 108” | |
| Maximum Frame Height | 37” | |
| Maximum Tire Size | 255/70R22.5 |
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
