220 TSV

Make All Your Light Duty Service Calls Profitable

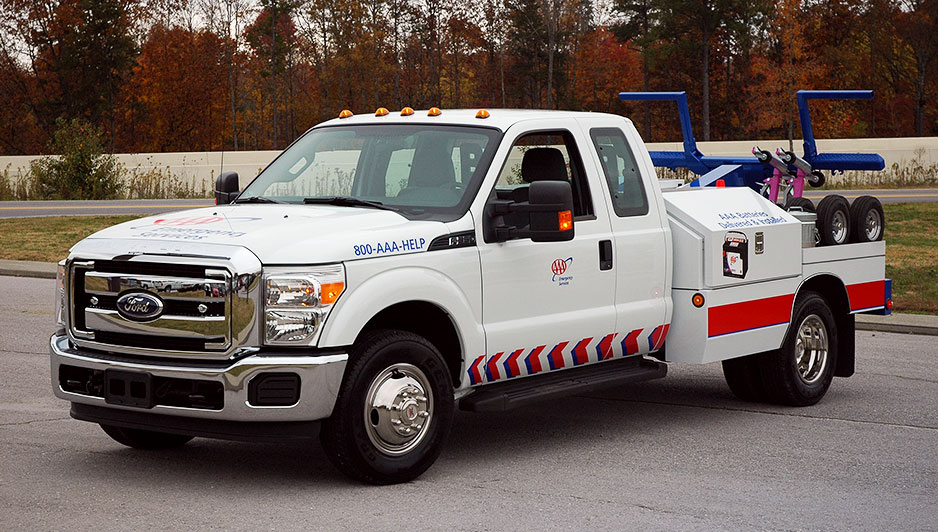

Increase your profits with the New Miller Industries Towing Service Vehicle. Capable of hauling up to 36 Batteries, Electric Air Compressor, Floor Jack, Gas Cans, Dollies, Jumper Cables and much, much more along with providing towing capabilities with the Holmes 220 Snatcher auto load wheel lift system. Also available without the Holmes 220 Tow Unit as a Light Service Vehicle.

Features

Top of Page

Standard

  • Two Aluminum 48”x34”x23” Locking Front Compartments will accommodate approximately 36 Automotive Batteries; Upper Shelf for small tools
  • One Aluminum 48”x34”x20” Rear Module Compartment to store equipment for Jump Starts, Tire Service, Lock-Outs, Repair & Light-Duty Towing
  • 1 Open Modular Tray (48”x 34”x 4”) Designed to Store Self-Loading Dollies, (2) GoJak®, (2) Pails for Floor Dry & Waste, (2) Plastic Fuel Cans, Emergency Cones, Broom, Shovel, Sledge Hammer & Pry-Bar Holder. (Equipment & Mounting Brackets Optional)
  • Rear Bumper w/Junction Box, LED Stop/Tail/Turn-Lights, LED Marker Lights, License Plate Light, LED Rear Flood/Backup Lights, Backup Alarm, Accommodations for 7-Wire RV Plug & 4-Wire Tow Light Socket
  • Poly Liner for the Floor and Lower Portion of the Enclosed Compartments and Open Top Tray
  • Built-In Divider Frame w/1” Intervals with 5 Dividers included in each Enclosed Module
  • Powder-Coated Ford Z1 Oxford White Standard on exterior of Modular Compartments and Tray
  • Modular Fender Skirts
  • Mud-Flap Mounting Brackets
  • Braided Wiring Harness
  • 12 Volt Air Compressor Package, 1/4” x 50’ Hose, Reel & Aluminum Storage Well
  • 4 Corner LED Flashing Lights w/Chrome Bezels
  • Holmes 220 Snatcher w/Hydraulic Auto Loading Wheel Lift
  • Electric/Hydraulic Power Unit
  • 4 Function Remote Control Pendant Cord
  • Wheel Lift Straps
  • Safety Chains in Rear Bumper
  • Group 27 Auxiliary Dry Cell Battery w/Storage Box
  • Electrical Solenoid & Wiring for Circuit Protection
  • Anti-Spray Panels to attach to the underside of the Holmes 220

Additional Equipment Included with Optional Towing Accessory Package

  • Self Loading Dollies w/Aluminum Wheels & Axles
  • Dolly and Axle Mounting Brackets
  • Dolly Safety Straps
  • Model 6,200 GoJak* Dollies 1,550 lb (pair)
  • GoJak* Mounting Brackets
  • TowMate, 15” Wireless, Hardwired Tow Light Kit w/Hardwired Transmitter

Other Available Options

Units
US
Metric

Specifications

Chassis Recommendations—Towing Service Vehicle

Body Width 90” or 95 1/2”
Dual Rear Wheels
60” Cab to Axle
Minimum GVW 13,200 lb
Maximum Frame Height 37 1/2”
A Front Push Bumper or Extended Cab is recommended to Improve Towing Capabilities

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
