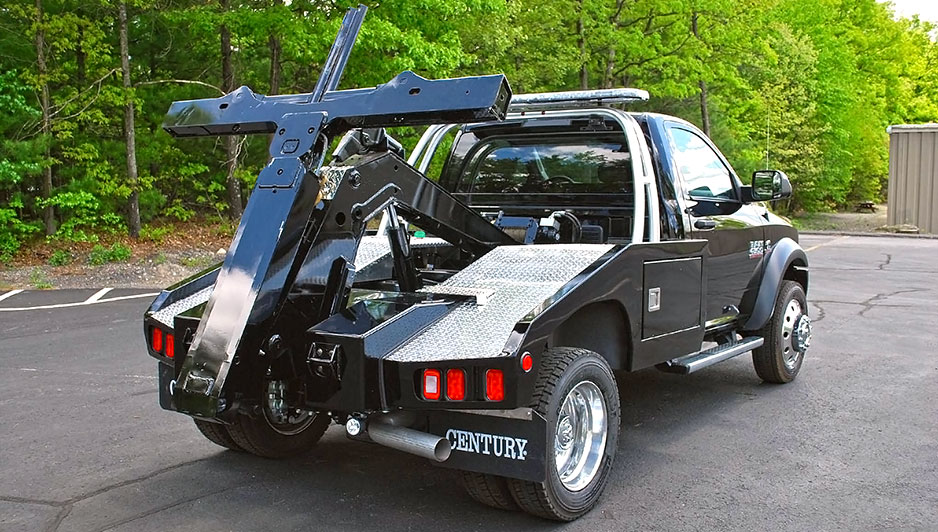

300 Express G2 PT
High Performance Self-Loading Wheel Lift Unit
Features
Standard
- 60” C.A. Steel Modular Body
- Adjustable Body Width, 88” or 94”
- Auto Load Wheel Lift System
- Adjustable limiter switches on elevation & tilt functions
- 180° Pivoting Crossbar
- Self Centering Crossbar
- Tailboard Safety Chain Pockets
- Safety Chains
- Safety Chain Pocket Guards
- Wheel Lift Ratchets & Straps
- Driver & Passenger Side Tool Compartments
- In Cab Wheel Lift & Winch Controls
- 8,000 lb Planetary Winch
- Junction Box and Wiring Harness
- Mud Flaps
- Federal Standard 108 Lighting
- Tire Spacers (Flat Tires)
Optional
- 60” C.A. Aluminum Modular Body
- 60” C.A. Composite Modular Body
- Steel Light Pylon
- Aluminum Tubular Light Pylon
- 24” Tunnel Tool Box
- Motorcycle Attachment
- 5th Wheel Attachment
- Bolt on Tailboad “D” Rings
- Dress Up Packages
- Emergency Lighting
- Dollies
- Clutch Pump or Pump/PTO
- Trailer Hitch Attachment
Specifications
Boom
| Recovery Boom (at boom end swivel) | 8,000 lb | |
| Maximum Lift Angle | 21° | |
| Winch (Planetary) | 8,000 lb | |
| Cable | 3/8” x 100’ |
Underlift
| Lift Capacity Extended | 4,000 lb | |
| Tow Rating | 7,500 lb | |
| Maximum Reach | 73” | |
| Optional Power Tilt | 30° Arc |
Chassis Recommendations
| Minimum Cab to Axle | 60” | |
| Maximum Cab to Axle (With Tunnel Tool Box) | 84” | |
| Suggested GVWR | 14,500 lb |
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
