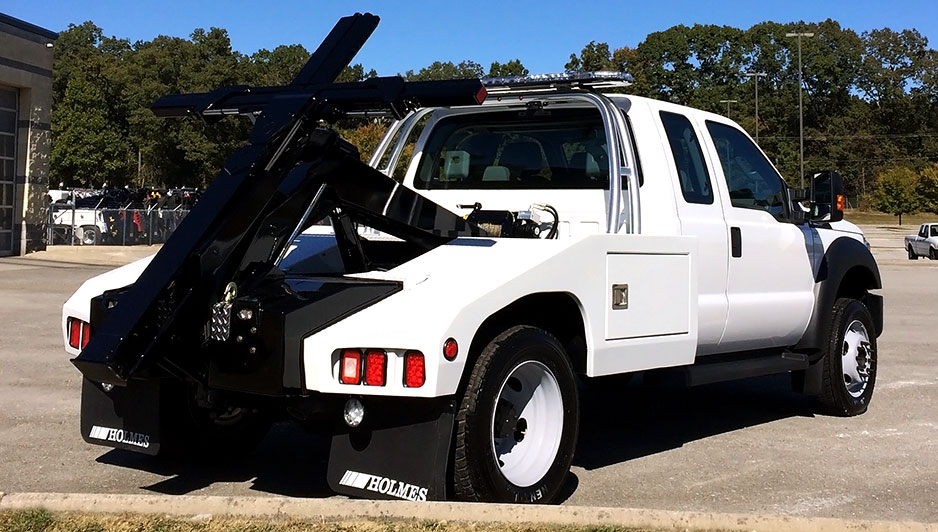

Holmes 440 Gen II
Proven Design & Technology
In 1916, Ernest Holmes pioneered a new industry with his first twin-boom wrecker. Holmes has continued that pioneering tradition for more a 100 years with quality and innovation that towers have come to rely on.
One of the most popular light-duty units ever built was the Holmes 440, which became a 25-year industry standard for economy and dependability. That reputation lives on with the new Holmes 440-G2, a no-nonsense auto loader designed to tackle your towing needs. An 8,000-pound recovery boom, 8,000-pound winch and an auto load system rated at 4,000 pounds with in-cab controls for quick and easy operation make the 440-G2 ideal for light-duty towing. The carbon-steel modular body features two spacious tool compartments for equipment storage. For a quick, reliable and economical answer to your towing needs, check out the Holmes 440-G2.
Features
Standard
- 60” C.A. Steel Modular Body
- Adjustable Body Width, 88” or 94”
- Auto Load Wheel Lift System
- 180° Pivoting Crossbar
- Self Centering Crossbar
- Tailboard Safety Chain Pockets
- Safety Chains
- Safety Chain Pocket Guards
- Wheel Lift Ratchets & Straps
- Driver & Passenger Side Tool Compartments
- In Cab Wheel Lift & Winch Controls
- 8,000 lb Planetary Winch with 100’ of 3/8” Cable
- Junction Box and Wiring Harness
- Mud Flaps
- Federal Standard 108 Lighting
- Tire Spacers (Flat Tires)
Optional
- Aluminum (88”/94” wide) or Composite(94” wide only) Modular Body
- Power Tilt
- Power Tilt with Adjustable limiter switches on
- elevation & tilt functions
- Steel Light Pylon
- Aluminum Tubular Light Pylon
- 24” Steel Tunnel Tool Box
- Trailer Hitch Attachment
- Motorcycle Attachment
- Dress Up Packages
- Emergency Lighting
- Dollies & Mounting Options
- Clutch Pump or Pump/PTO
Specifications
Boom
| Recovery Boom (at boom end swivel) | 8,000 lb | |
| Maximum Lift Angle | 21° | |
| Winch (Planetary) | 8,000 lb | |
| Cable | 3/8” x 100’ |
Underlift
| Lift Capacity | 4,000 lb | |
| Tow Rating | 7,500 lb | |
| Maximum Reach | 73” | |
| Optional Power Tilt | 30° Arc |
Chassis Recommendations
| Minimum Cab to Axle | 60” | |
| Maximum Cab to Axle (With Tunnel Tool Box) | 84” | |
| Suggested GVWR | 14,500 lb |
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
