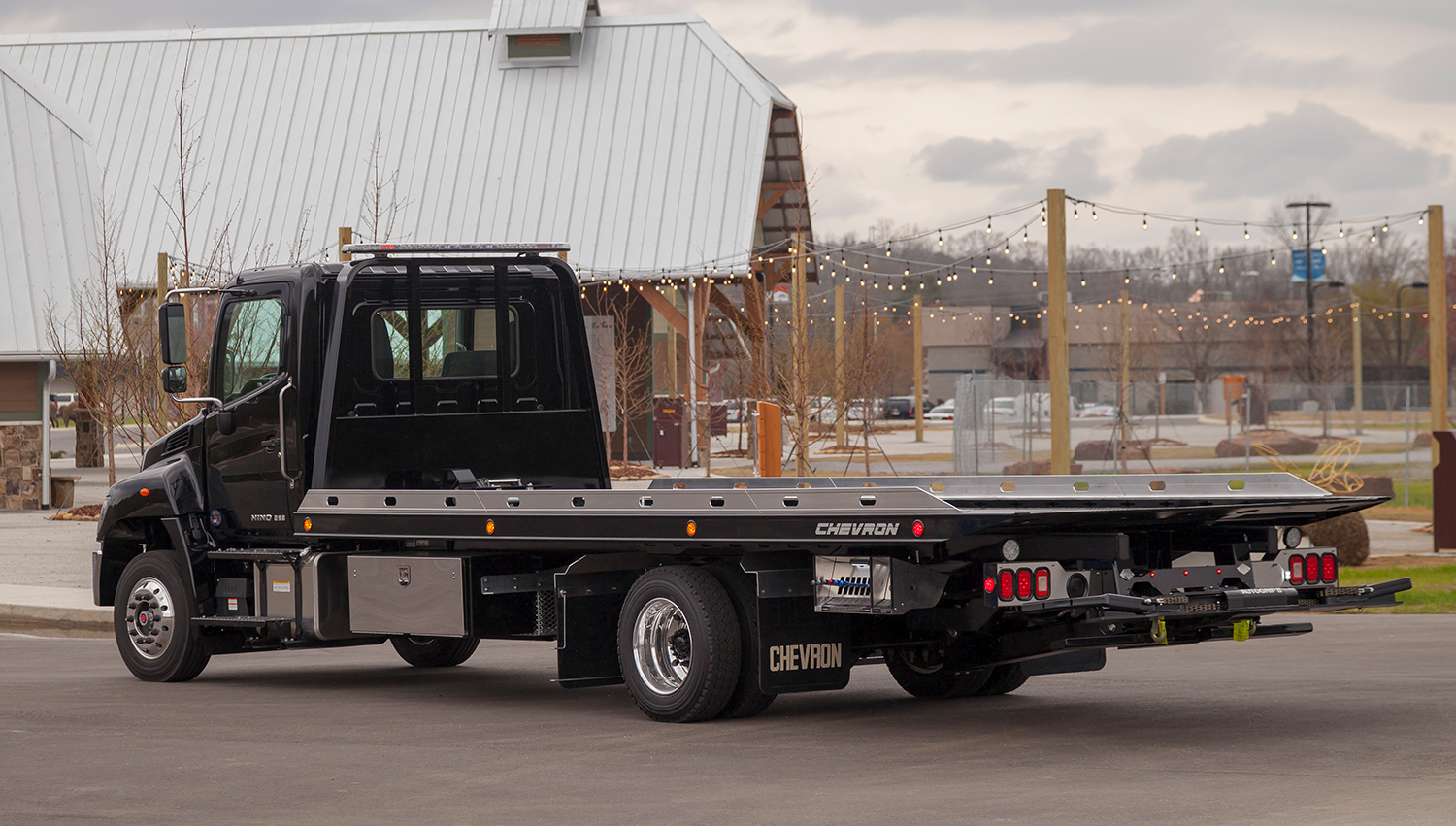

Chevron 12 Series LCG™

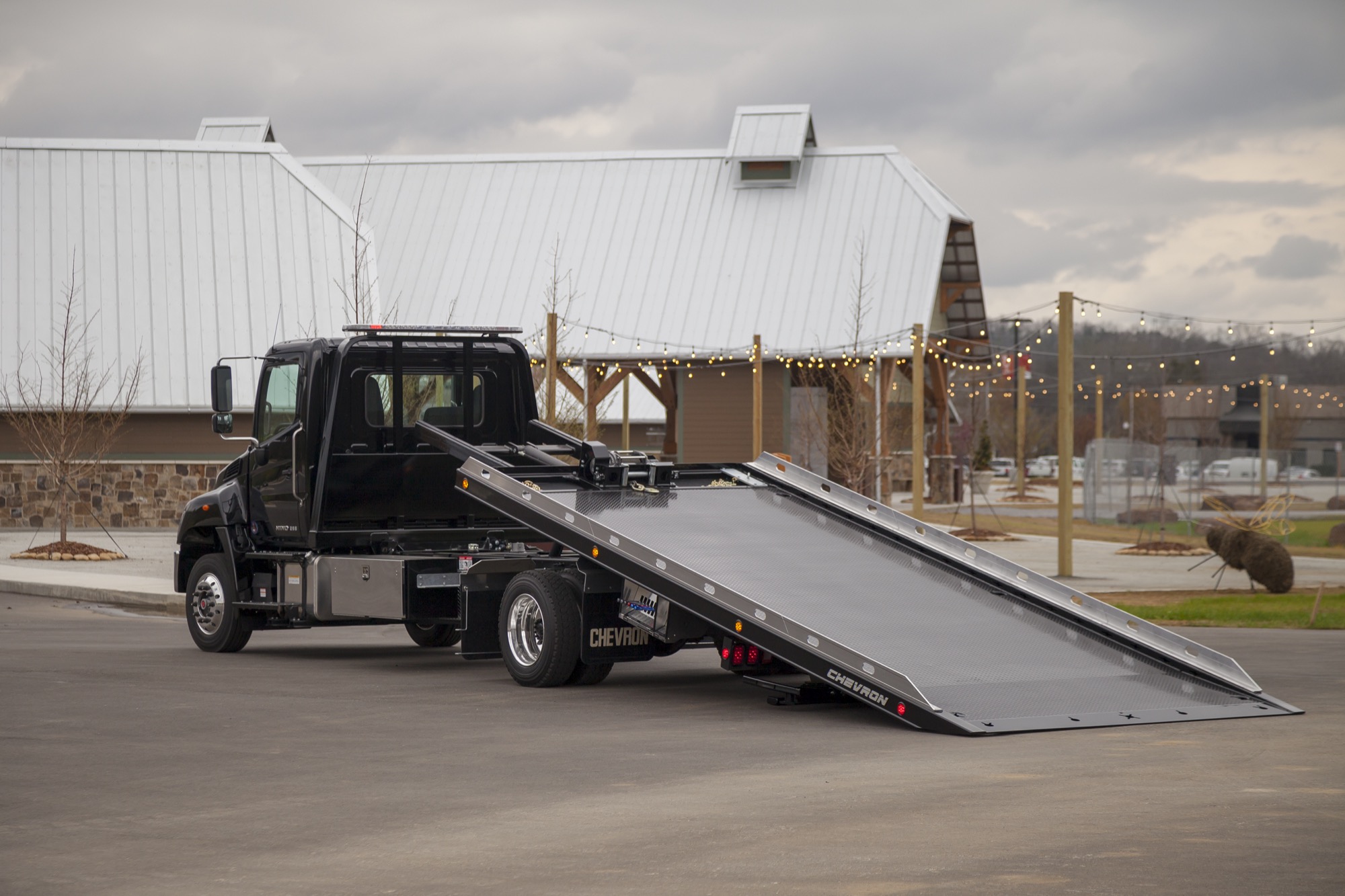

Get the best of both worlds with Chevron's Series 12 LCG carrier (Low Center of Gravity). The LCG. provides a low load angle and high dump angle plus lowers the deck height 5” over conventional carriers.

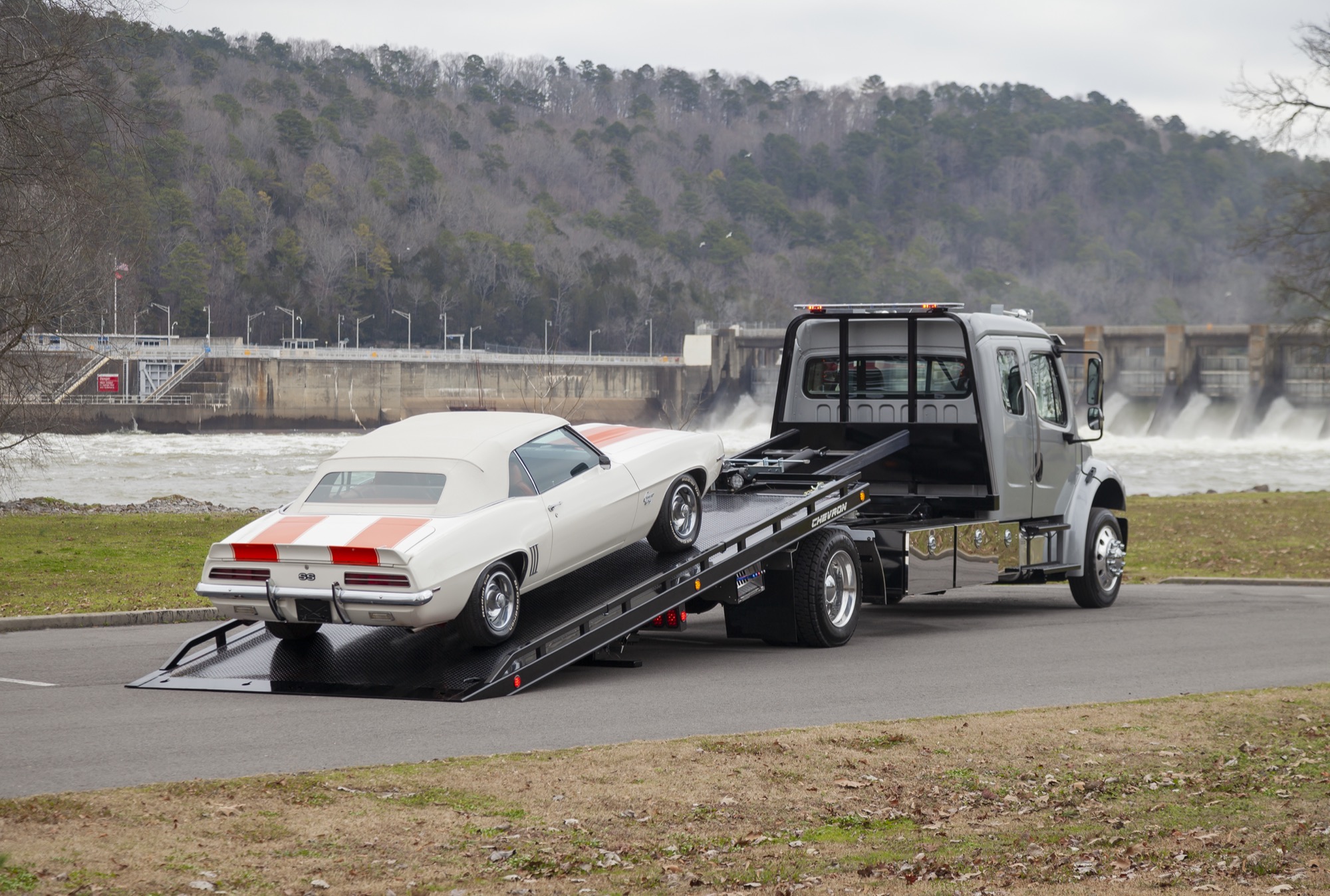

The lower deck height allows for transportation of taller loads such as forklifts, plus loads are at arms length and easier to secure for transport. The Low Center of Gravity increases stability and enhances the handling performance of loads. The LCG provides a super low load angle for low clearance vehicles and exotics. The high dump angle allows for easier removal of damaged or disabled vehicles. Chevron's LCG is engineered and built to exceed all expectations.
Features
Standard
- Platform Available in Aluminum or Steel
- Bed Built 102” Wide
- Floor Level Sides w/ Stake Pockets (Steel)
- Bi-Hollow Tube Rails (Aluminum)
- Right & Left Chain Trays
- 11 Key Slot Package (Steel)
- Painted in Black Acrylic Enamel (Steel)
- Subframe Length 230” IBT
- Slide Pads
- Bed Anti-Tilt Lockout
- Roller Bed Positive Lock-Down
- Left & Right Side Illuminated Controls
- Full Function Wheel Lift System
- Slide-In L-Arms w/ Anti-Theft Storage
- Safety Chains (2 Front, 2 Rear)
- Adjustable Rear Stabilizer
- 6-Spool Capable Control Station
- Two Lift Cylinders
- One Extension Cylinder
- 8,000 lb Hydraulic Winch w/ 50’ Cable
- Manual Shift Winch Clutch Release
- Cable Tensioner
- Cable Roller Guide
- Federal Standard #108 LED Lighting
- Pre-Wired Electrical Junction Box
- Back-Up Lights & Alarm
- Tow Light Socket
- Hydraulic Pump
- Mud Flaps
Optional
- Frame-Mounted Pylon (Requires 6” or 12” Additional CA depending on size of pylon base)
- Bed-Mounted Cab Protector
- Smooth Floor in lieu of Tread Plate (Steel)
- Color on Top of Deck & Side Rails (Steel)
- Solid Tube Side Rails (Steel, N/C))
- Steel Removable Tube Rails
- Aluminum Removable Blade Rails
- Load Rite Gen II® Option
- 9-Spool Control Station Capable
- Optional Planetary Winch
- Air Shift Winch Clutch Release
- Dual Air Shift Winch Clutch Release
- Side-Mount Winch
- Galvanized Subframe
- Wood Floor*
- 6 Key Slot Package (Aluminum)
- Additional Key Slots
- Wireless Winch Remote
- Work Lights (Rear, Pylon, or Winch Mounted)
- Additional Lighting
- 3-Way Pivoting L-Arm System
- Combination Dock Stabilizer / Wheel Lift
- Hydraulic Stabilizer w/ Extendable Pintle
- Various Wheel Retainer Options
- Auto-Grip™ II Wheel Lift
- Steel or Aluminum Tool Compartments
- Various Chain & Strap Assemblies
- PTO
- Switch Panel
- Stabilizer Spades
Specifications
Carrier
| Load Rating | 12,000 lbs. | |
| Deck Height Above Chassis Frame | Steel | 6 3/4” |
| Deck Height Above Chassis Frame | Wood | 7 3/4” |
| Platform Length | 20.5’, 21’, 21.5’, 22’ | |
| Platform Floorplate Thickness | 3/16” | |
| Platform Width | Outside | 102” |
| Platform Width | Inside* | 96 1/2” – 101” |
| Platform Mainbeam | 6” I-Beam | |
| Platform Crossmembers | Steel | 2” x 2” Cor-ten Tube |
| Platform Crossmembers | Aluminum | 2 1/4” |
| Crossmember Spacing | Steel | 8” on Center |
| Crossmember Spacing | Aluminum | 4” on Center |
| Subframe Rails | 5” x 3” x 5/16” H.S. Tube | |
| Rear Pivot | 1 Piece 1 1/2” Diameter | |
| Winch (First Layer) | 8,000 lbs. Worm | |
| Cable | 3/8” x 50’ | |
| Bed Tilt Cylinder | 3” Bore | |
| Bed Extension Cylinder | 3 1/2” x 120” Stroke | |
| Wheel Lift Reach | Extended | 66” |
| Wheel Lift Rating | Extended | 4,000 lbs. |
| Tow Rating | 10,000 lbs. |
Chassis Recommendations
| GVWR | 19,500 lbs.– 26,000 lbs. | |
| Minimum Frame Height | 33” | |
| Maximum Frame Height | 38” | |
| Wheel & Tire Size | 255/70R22.5 | |
| Minimum Frame Length Behind Center of Rear Axle | 36” |
Cab to Axle (C.A.) Requirements
| Carrier Deck Length** | Clear C.A. | Minimum Frame RBM |
|---|---|---|
| 20.5’ | 132” | 600,000 in/lbs. |
| 21’ | 138” | 600,000 in/lbs. |
| 21.5‘ | 144” | 600,000 in/lbs. |
| 22’ | 150” | 600,000 in/lbs. |
Fuel tanks must be under the cab. Fuel tanks can extend up to 6 inches behind the cab only in combination with a frame-mounted pylon. Fuel fill must not behind the cab. The preferred location for the battery box is under the passenger seat or under the cab, battery boxes in other locations may require relocation.
* Inside bed widths will vary based on siderail option selected.
** A minimum of 49" between the inside of the rear tires is required.
‡ The outside frame rails of the chassis extending behind the cab must be free of fuel tanks, air tanks, exhaust stacks, etc. The LCG™ carrier is not compatible with chassis that have inboard mid-ship fuel tanks such as the Ford 550 and Dodge 5500.
Air-bag rear suspensions are recommended for the lowest possible load angle but the LCG™ carrier can be mounted on some chassis with leaf spring suspensions. Most chassis components behind the cab outside the frame must be at least 2 inches below the top of the truck frame to clear the bed slide rails.
Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
