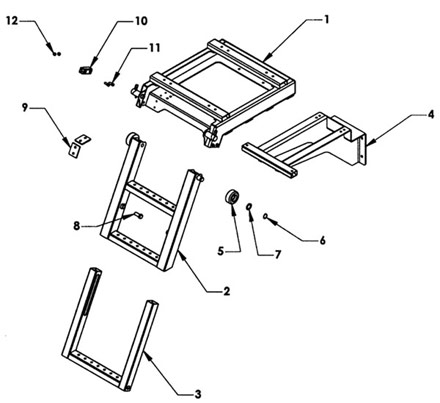

Retractable Ladder |
|
 |
|
ITEM |
PART
NUMBER |
DESCRIPTION |
NUMBER
REQUIRED |
|
|
390000 |
LADDER ASSEMBLY |
1 |
|
1 |
391010 |
LADDER CARRIAGE |
1 |
|
2 |
391020 |
UPPER RUNG ASSEMBLY |
1 |
|
3 |
391030 |
LOWER RUNG ASSEMBLY |
1 |
|
4 |
391040 |
FRAME MOUNTING BRACKET - OPTIONAL |
1 |
|
5 |
36310 |
WHEEL |
2 |
|
6 |
86100E |
RETAINING RING 1.00 EXTERNAL |
2 |
|
7 |
82710 |
FLAT WASHER 1 x 1.50 |
2 |
|
8 |
391026 |
RETAINING BOLT 5/8-11 x 1-1/2 |
2 |
|
9 |
391018 |
WEAR PAD |
4 |
|
10 |
391015 |
RETAINING TUBE |
2 |
|
11 |
81221 |
ALLEN HEAD BOLT 3/8-16 x 1 |
4 |
|
12 |
83211 |
NYLON LOCK NUT 3/8-16 |
4 |
|
|
