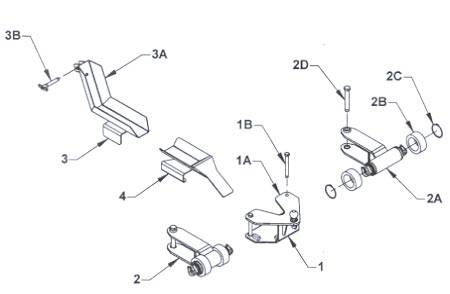

ITEM |
PART
NUMBER |
DESCRIPTION |
NUMBER
REQUIRED |
|
1 |
694510G |
TOW BALL ATTACHMENT GROUP (ball excluded) |
1 |
|
1A |
694510 |
TOW BALL BRACKET WELDMENT |
1 |
|
1B |
816665 |
BOLT 3/4-10 UNC x 6.5 |
2 |
|
|
|
|
|
|
2 |
659002G |
TOW BAR ATTACHMENT GROUP |
2 |
|
2A |
659002 |
TOW BAR WELDMENT |
1 |
|
2B |
64910 |
RUBBER RING |
2 |
|
2C |
86350E |
RETAINING RING 3.5 EXTERNAL |
2 |
|
2D |
81815 |
BOLT 1.00-8 UNC x 6.5 |
1 |
|
|
|
|
|
|
3 |
694540G |
MOTORCYCLE FRONT TIRE SADDLE GROUP |
1 |
|
3A |
6954540 |
MOTORCYCLE FRONT TIRE SADDLE |
1 |
|
3B |
84922 |
T-PIN 3/4 x 4 |
1 |
|
|
|
|
|
|
4 |
694550 |
MOTORCYCLE REAR TIRE SADDLE |
1 |
|
-- |
694560 |
STRAP TIE-DOWN KIT (not shown) |
1 |
