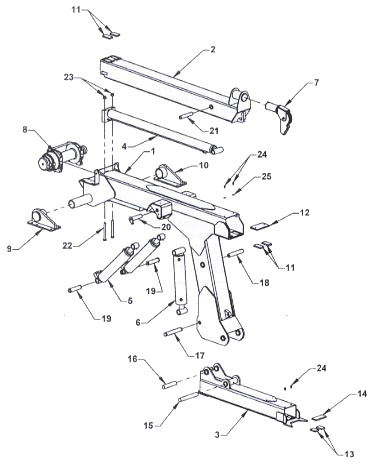

ITEM |
PART
NUMBER |
DESCRIPTION |
NUMBER
REQUIRED |
|
1 |
6I1033 |
INTEGRATED BOOM - OUTER 408T2 |
1 |
|
2 |
6I1053 |
INNER BOOM TUBE - 408T2 |
1 |
|
3 |
6I1071 |
UNDERLIFT OUTER TUBE - AUTOGRIP |
1 |
|
-- |
6I1072 |
UNDERLIFT OUTER TUBE - CONVENTIONAL |
1 |
|
4 |
721033 |
BOOM EXTENSION CYLINDER |
1 |
|
5 |
720112 |
BOOM LIFT CYLINDER |
2 |
|
6 |
720122 |
UNDERLIFT TILT/FOLD CYLINDER |
1 |
|
7 |
61366G |
BOOM END SWIVEL |
2 |
|
8 |
71102L |
PLANETARY WINCH - LEFT |
1 |
|
9 |
6I1330L |
TRUNNION BRACKET - LEFT |
1 |
|
10 |
6I1330R |
TRUNNION BRACKET - RIGHT |
1 |
|
11 |
63595 |
NYLATRON WEAR PAD 1/2 x 2/4 |
2 |
|
12 |
63431 |
UHMW WEAR PAD 1/2 x 4 x 8 |
1 |
|
13 |
65612 |
NYLATRON WEAR PAD 1/2 x 2 x 3 |
2 |
|
14 |
65121 |
UHMW WEAR PAD 1/2 x 2-1/2 x6 |
1 |
|
15 |
6I1620 |
UNDERLIFT PIVOT PIN 1.480 x 10 |
1 |
|
-- |
86150I |
SNAP RING 1.50 INTERNAL |
2 |
|
16 |
6I1740 |
UNDERLIFT TILT PIN 1.480 x 7 |
1 |
|
-- |
86150I |
SNAP RING 1.50 INTERNAL |
2 |
|
17 |
6I1625 |
UNDERLIFT LEVELER PIN 1.50 x 8.25 |
1 |
|
18 |
6I1545 |
UNDERLIFT TILT PIN 1.480 x 8-1/8 |
1 |
|
-- |
86150I |
SNAP RING 1.50 INTERNAL |
2 |
|
19 |
6I1245 |
BOOM LIFT CYLINDER PIN 1.480 x 6.5 SRG |
1 |
|
-- |
86150E |
SNAP-RING 1.50 HEAVY DUTY EXTERNAL |
2 |
|
20 |
6I1240 |
BOOM LIFT CYLINDER PIN |
2 |
|
21 |
6I1339 |
PIN BOOM EXTENSION CYLINDER |
1 |
|
-- |
86125I |
SNAP-RING 1.25 INTERNAL |
2 |
|
22 |
81670 |
BOLT 3/4 x 7 GRADE 8 COARSE THREAD |
2 |
|
23 |
83521 |
3/4 COARSE THREAD NYLON LOCK NUT |
2 |
|
24 |
812A5 |
BUTTON BOLT 3/8 x 3/4 COARSE THREAD |
4 |
|
25 |
82210 |
3/8 FLAT WASHER |
2 |
