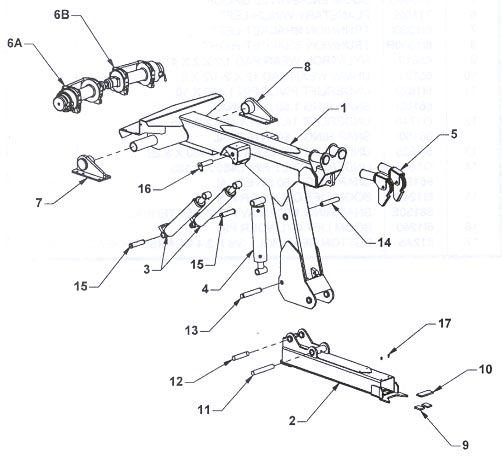

ITEM |
PART
NUMBER |
DESCRIPTION |
NUMBER
REQUIRED |
|
1 |
6I1024 |
INTEGRATED BOOM |
1 |
|
2 |
6I1071 |
UNDERLIFT OUTER TUBE - AUTOGRIP |
1 |
|
-- |
6I1072 |
UNDERLIFT OUTER TUBE - CONVENTIONAL |
1 |
|
3 |
720112 |
BOOM LIFT CYLINDER |
2 |
|
4 |
720122 |
UNDERLIFT TILT/FOLD CYLINDER |
1 |
|
5 |
61366G |
BOOM END SWIVEL GROUP |
2 |
|
6A |
71102L |
PLANETARY WINCH - LEFT |
1 |
|
6B |
71102R |
PLANETARY WINCH - RIGHT |
1 |
|
7 |
6I1330L |
TRUNNION BRACKET - LEFT |
1 |
|
8 |
6I1330R |
TRUNNION BRACKET - RIGHT |
1 |
|
9 |
65612 |
NYLATRON WEAR PAD 1/2 x 2 x 4 |
2 |
|
10 |
65121 |
UHMW WEAR PAD 12 x 2-1/2 x 6 |
1 |
|
11 |
6I1620 |
UNDERLIFT PIVOT PIN 1.480 x 10 |
1 |
|
-- |
86150I |
SNAP RING 1.50 INTERNAL |
2 |
|
12 |
6I1740 |
UNDERLIFT TILT PIN 1.480 x 8.125 |
1 |
|
-- |
86150I |
SNAP RING 1.50 INTERNAL |
2 |
|
13 |
6I1625 |
UNDERLIFT LEVELER PIN 1.480 x 8.25 |
1 |
|
14 |
6I1545 |
UNDERLIFT TILT PIN 1.480 x 8.125 |
2 |
|
-- |
86150I |
SNAP RING 1.50 INTERNAL |
2 |
|
15 |
6I1245 |
BOOM LIFT CYLINDER PIN |
2 |
|
-- |
86150E |
SNAP RING 1.50 HEAVY DUTY EXTERNAL |
2 |
|
16 |
8I1240 |
BOOM LIFT CYLINDER PIN
|
2 |
|
17 |
812A5 |
BUTTON HEAD BOLT 3/8 x 3/4 COARSE THREAD |
2 |
