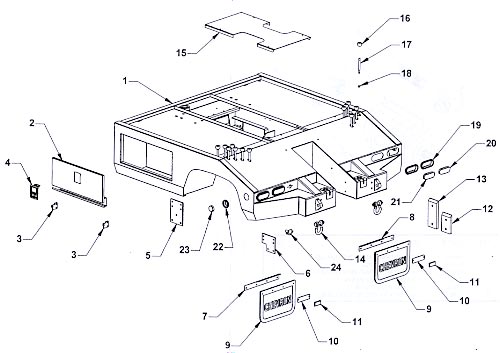

ITEM |
PART
NUMBER |
DESCRIPTION |
NUMBER
REQUIRED |
|
1 |
5033V |
INTEGRATED WRECKER BODY |
1 |
|
2 |
5A300 |
TOOL BOX DOOR |
2 |
|
3 |
5A316 |
TOOL BOX DOOR WELDMENT BLOCK |
4 |
|
4 |
54658 |
ROTARY PADDLE LATCH #3 |
2 |
|
5 |
53263 |
FRONT MOUNTING BRACKET |
2 |
|
6 |
532501 |
MIDDLE BODY MOUNTING BRACKET |
2 |
|
7 |
53182L |
MUDFLAP MOUNTING BRACKET - LEFT |
1 |
|
8 |
53182R |
MUDFLAP MOUNTING BRACKET - RIGHT |
1 |
|
9 |
A1040 |
MUDFLAP |
2 |
|
10 |
59115 |
REAR REFLECTOR MOUNTING PLATE |
2 |
|
11 |
93300R |
REFLECTOR - RED |
2 |
|
12 |
59320 |
UHHW WEAR PAD |
2 |
|
13 |
59319 |
UHHW WEAR PAD |
2 |
|
14 |
84716 |
6-1/2 TON SHACKLE W/NUT & BOLT |
2 |
|
15 |
54312 |
ACCESS COVER |
1 |
|
16 |
7A211 |
CONTROL KNOB |
14 |
|
17 |
7A168 |
CONTROL HANDLE |
14 |
|
18 |
83320 |
NUT 1/2-20 UNF |
14 |
|
19 |
92650 |
TAILLIGHT GROMMET |
4 |
|
20 |
92600R |
TAILLIGHT |
2 |
|
21 |
95600 |
BACKUP LIGHT |
2 |
|
22 |
93150 |
MARKER LIGHT GROMMET |
2 |
|
23 |
93100R |
RED MAKER LIGHT |
2 |
|
24 |
98400 |
TOW LIGHT PLUG |
1 |
