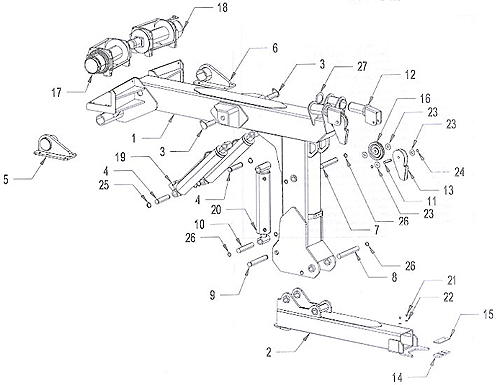

ITEM |
PART
NUMBER |
DESCRIPTION |
NUMBER
REQUIRED |
|
1 |
6I1022 |
INTEGRATED BOOM |
1 |
|
2 |
6I1070 |
INTEGRATED OUTER LOWER BOOM |
1 |
|
3 |
6I1240 |
PIN- BOOM LIFT CYLINDER ROD |
2 |
|
4 |
6I1245 |
PIN - BOOM LIFT CYLINDER BASE |
2 |
|
5 |
6I1330L |
TRUNNION BRACKET - LEFT |
1 |
|
6 |
6I1330R |
TRUNNION BRACKET - RIGHT |
1 |
|
7 |
6I1545 |
PIN - POWER TILT CYLINDER BASE |
1 |
|
8 |
6I1620 |
PIN- OUTER BOOM PIVOT |
1 |
|
9 |
6I1625 |
PIN- POWER TILT RESTRICTOR |
1 |
|
10 |
6I1740 |
PIN - POWER TILT CYLINDER ROD |
1 |
|
11 |
61364 |
PULLEY PIN |
2 |
|
12 |
61366 |
SWIVEL INSERT |
2 |
|
13 |
61370 |
WIRE ROPE FOLLOWER |
2 |
|
14 |
65753 |
NYLATRON WEAR PAD 1/2 x 2-1/2 |
1 |
|
15 |
65758 |
NYLATRON SPACER PAD |
1 |
|
16 |
69120 |
PULLEY - 6" |
2 |
|
17 |
71102L |
WINCH - PLANETARY - LEFT |
1 |
|
18 |
71102R |
WINCH - PLANETARY - RIGHT |
1 |
|
19 |
720112 |
CYLINDER INTEGRATED BOOM LIFT |
2 |
|
20 |
720122 |
CYLINDER UPPER EXTENSION |
1 |
|
21 |
812A5 |
BOLT - SOCKET HEAD BUTTON - 3/8 x 1/2 |
2 |
|
22 |
82210 |
FLAT WASHER - 3/8 |
2 |
|
23 |
82510 |
FLAT WASHER - 3/4 |
8 |
|
24 |
86075E |
SNAP-RING .75" EXTERNAL |
4 |
|
25 |
86150E |
SNAP-RING 1.50" EXTERNAL |
4 |
|
26 |
86150I |
SNAP-RIG 1.50" INTERNAL |
6 |
|
27 |
86287E |
SNAP-RING 2.875" EXTERNAL |
2 |
