Vulcan 804

Boom Capacity: 8,000 lbs.
Winch Rating: 8,000 lbs.
Tow Rating: 7,500 lbs.

Vulcan 804
Features
Specifications

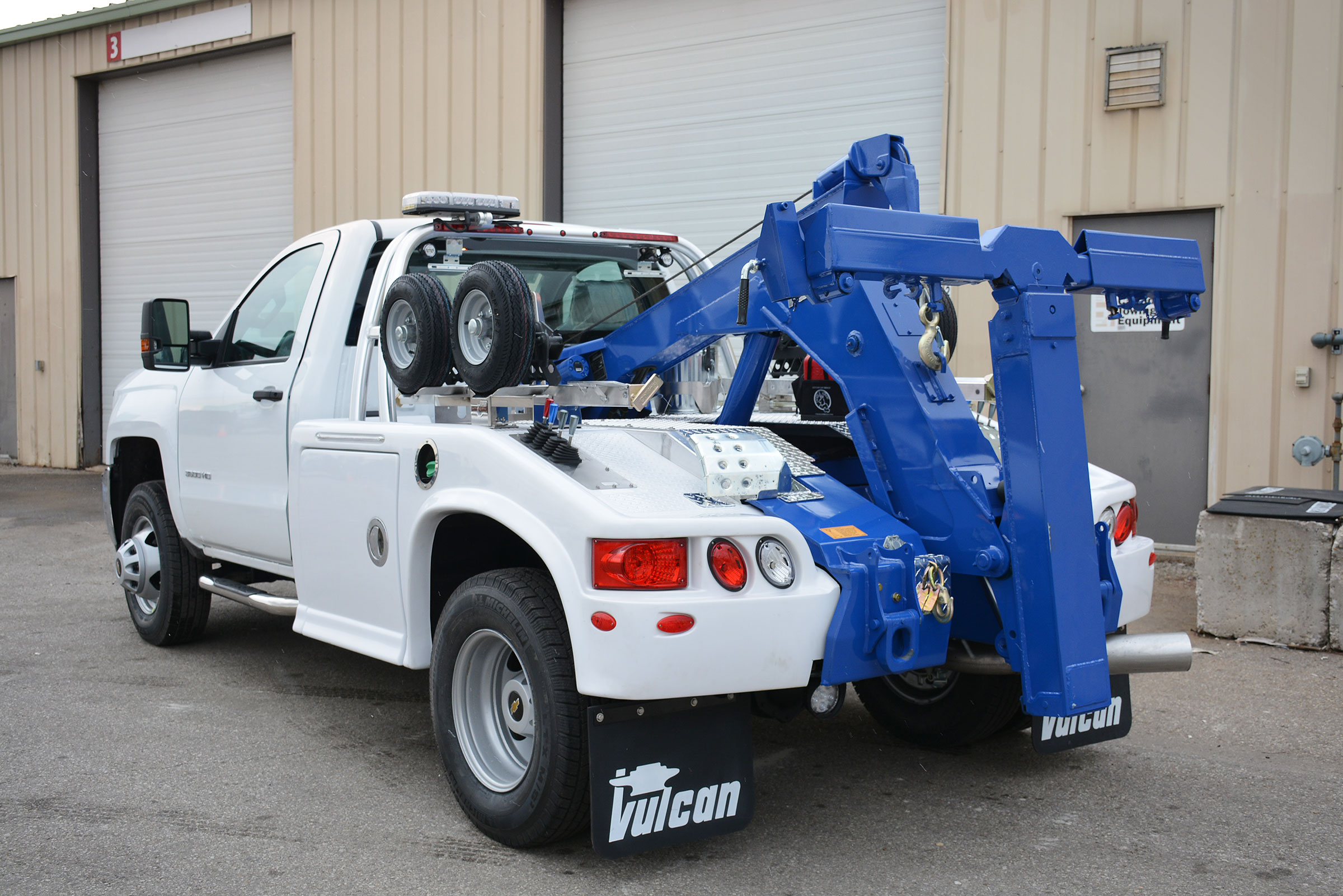

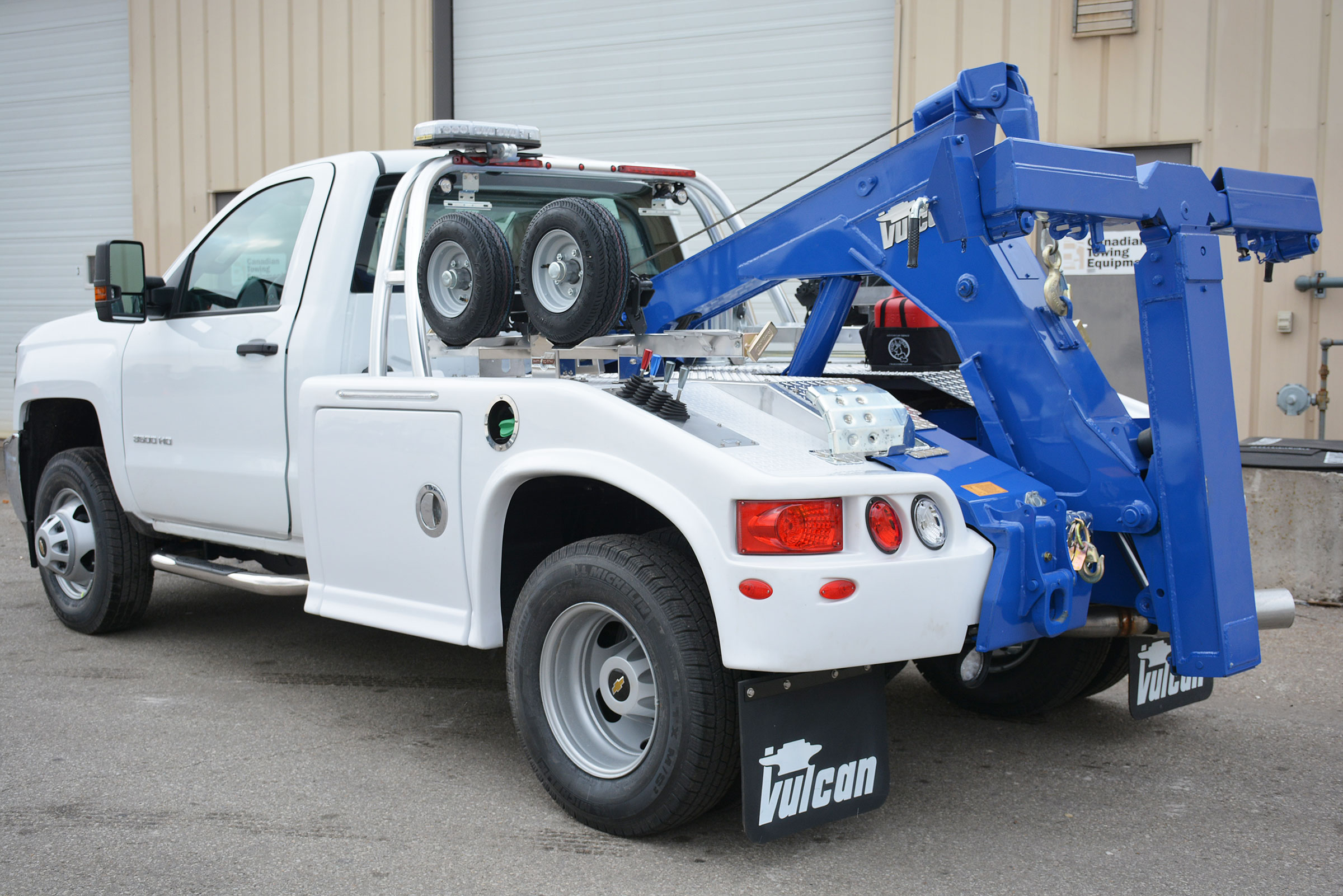

Vulcan's 804 provides the power and performance for light duty towing at a very affordable price. The integrated boom and wheel lift is designed to save weight, thus allowing you the potential for increased legal payload without overloading the chassis.

Reliability in your towing equipment is also essential in today's competitive marketplace and the Vulcan 804 is built to meet that challenge with the same quality found in all Vulcan products. The 804 is one of the easiest and safest units to tow with today using Vulcan's patented strapless wheel lift system. The retainers pivot horizontally as well as vertically for easy hookups in a wide variety of situations. The best part is there are no tiedown straps. Call your local Vulcan distributor to find out how the Vulcan 804 can fill your towing needs without overloading your budget.

Features

Standard

Vulcan's Patented 4,000 lb Wheel Retainers
Adjustable Width Modular Body, 88” or 94”
60” Cab-to-Axle Steel Body
Driver & Passenger Side Controls
Tailboard Safety Chain Pockets
Safety Chain Pocket Guards
Wheel Lift Safety Chains - 5/16, Grade 70
Wheel Retainer Storage Pockets
Driver & Passenger Side Tool Compartments
8,000 lb Winch with 100’ of 3/8” Cable
Winch Free Spool and Cable Tensioner
Mud Flaps
Federal Standard 108 Lighting

Optional

60” C.A. Aluminum Modular Body
60” C.A. Composite Modular Body (94” Wide Only)
Light Pylon
Aluminum Tubular Light Pylon
24” Tunnel Tool Box
Sling Attachment
Trailer Hitch
Dress Up Packages
Additional Lighting
PTO
Wheel Simulators

Specifications

Boom

Recovery Boom (at boom end swivel)	8,000 lbs.
Winch	8,000 lbs.
Cable	3/8” x 100’

Underlift

Tow Rating	7,500 lbs.
Lift Capacity	4,000 lbs.
Tilt Angles	+12° / -15°
Maximum Reach	61”

Chassis Recommendations

Minimum Cab to Axle	60”
Maximum Cab to Axle	84”
Suggested GVWR	11,500 lbs. – 15,500 lbs.
