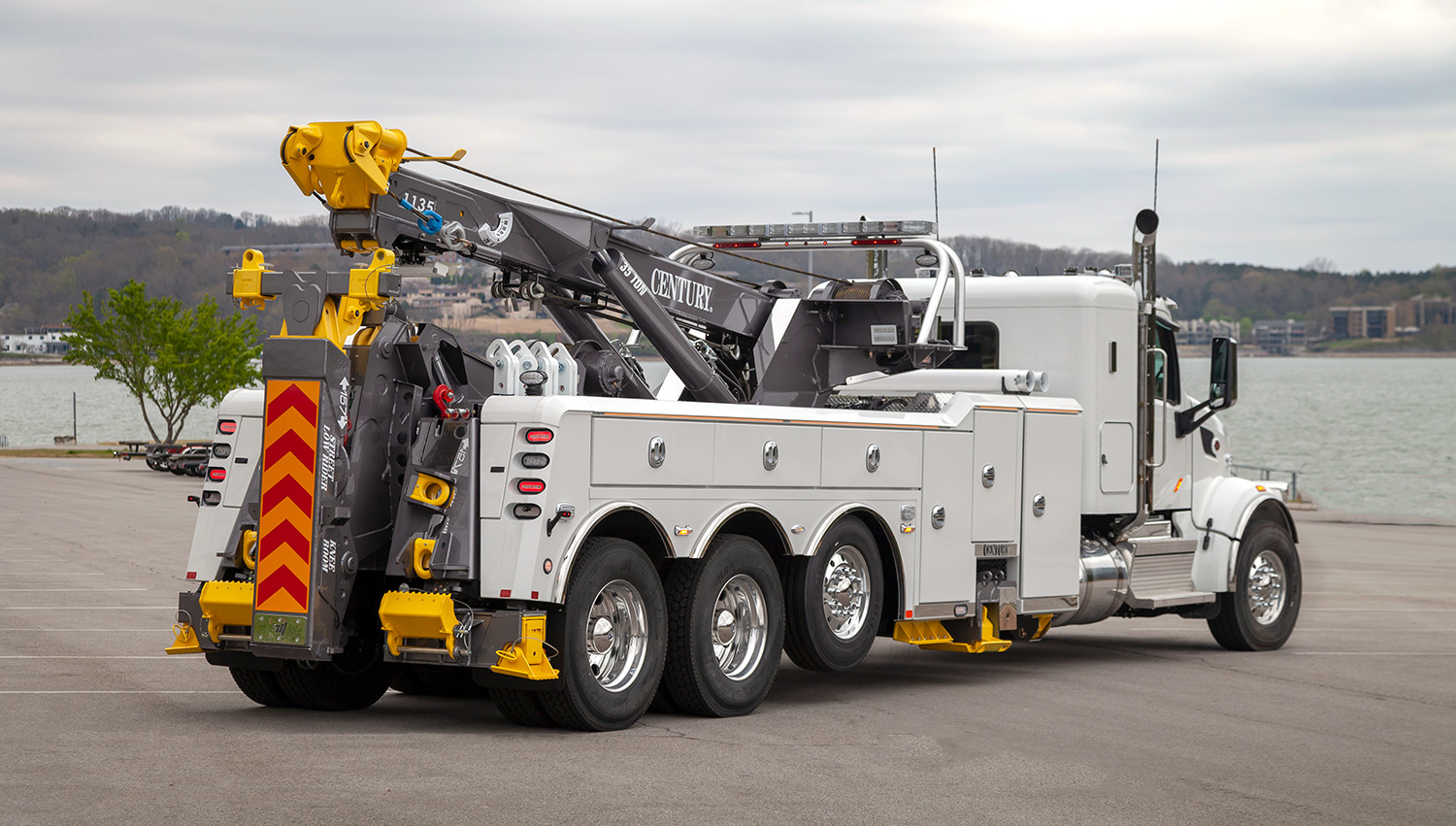

Century 1135 & 1140

The Ultimate Front Line Rotator Capable of Handling Both Your Recovery and Towing Needs

Vulcan
935 & 940
1135 / 935 Boom
70,000 lbs.
1140 / 940 Boom
80,000 lbs.

The 35-ton and 40-ton rotators are both designed to be a versatile yet weight-conscious unit for towing and recovery. The 1135/935 features dual 25,000 lb planetary two-speed winches and a fabricated two-stage recovery boom standard. It is also available with optional 35,000 lb winches. The Century 1140 and Vulcan 940 comes standard with dual 35,000 lb planetary winches and a fabricated 3-stage recovery boom.

The 1135 and 1140 units provide the operator with 360 degrees of boom rotation (190 degrees in each direction). Both the 1135 and 1140 come standard with the SDU-4 underlift with the standard lowrider and can be upgraded to the Coach LowRider for nearly two feet of additional reach.

Also available as an option is our patented Raptor™ Wireless Proportional Controls* which includes wrecker controls extendible away from the vehicle to enhance operator sightlines during use, and an information screen with load sensing functions.

* USPN 9440577, D751,963 S and D752,492 S

Features

Body—Standard

  • 180” CB Aluminum Modular Body
  • 212” Two-Stage "H-Beam" Front Outriggers (1135/935)
  • 262” Three-Stage "H-Beam" Front Outriggers* (1140/940)
  • 12-Funct. Floor Mounted Switch Panel (1135)
  • Power Distribution System - MMO (1140) (2 Touch Screen Displays, 3 MVEC CANs)
  • Compartments Over the Wheel Wall
  • Chrome Door Action Latches
  • Keyless Lock/Unlock Tool Compartments
  • LED Toolbox & Federal #108 Lighting
  • Rubber Fenderettes & Mud Flaps
  • Chain Rack & Fork Holders
  • Rubber Isolators
  • Enclosed Inner Wheel Wells
  • Tailboard Mounted D-Rings (1 Pair)
  • Flip Down Rear Outrigger Spades
  • Rear Air & Electrical Hook-Ups

Boom—Standard

  • 360° Boom Rotation / 190° Each Direction
  • Proportioning Power Boom Extension with Counter Balance Valve
  • 12  Function Keypad (1135)
  • MMO System (1140)
  • Dual Control Stations
  • Boom Elevation & Extension Holding Valve
  • Boom Slide Pads
  • Boom Angle Indicator
  • Dual 2-Speed Winches
  • Cable Tensioners & Winch Air Free Spool
  • Air Activated House Lock, Secures Boom in Rear or Forward Position for Transport
  • House Lock Indicator & Window
  • Hydraulic Pump
  • 360° Sheave Heads
  • Hydraulic Pressure Gauge (Driver Side)
  • "D" Rings Mounted on Each Stage
  • Aluminum Tubular Pylon

Underlift—Standard

  • 8 Function Wireless Remote
  • Power Elevation & Extension
  • Power Tilt & Hydraulic Fold
  • 3-Stage Design
  • Fabricated Low Profile 70° Pivoting Crossbar
  • 2 Piece Pivot Pin
  • Upper/Lower Thrust Washer
  • Low Profile Fork Holders
  • 9 Pairs of Cast Steel Forks
  • 1 Pair of Spring Lift Adapters
  • 1 Pair of Hook Adapters
  • Safety Chains in Tailboard
  • 9 Sets of Cast Steel Forks: Short Axle Fork, 3” Short, 3” Medium, 3” Tall, 4 1/2” Short, 4 1/2” Medium, 4 1/2” Tall, 6” Short Offset, Round Axle Fork

Optional

  • 224” RXP Front Outriggers* (204 TriAxle)
  • Additional Lift Forks & Attachments
  • Dual 15K Turret Mounted Winches* (N/A RXP)
  • 25K or 35K Belly Drag Winch (1135 Only)
  • 35K or 50K Belly Drag Winch (1140 Only)
  • Load Sensing System
  • Radio Proportional Illuminated Controls
  • MMO Power Distribution System (2 Touch Screen Displays, 3 MVEC CANs) (STD on 1140)
  • Right Hand Manual Controls
  • 24”, 30”, 36”, or 48” Tunnel Box
  • Chain Rack for 36” or 48” Tunnel Box
  • Tunnel Box Shelf (Except 24”)
  • Tunnel Box Attachment Storage
  • Coach LowRider (63.5"/165.5")
  • Air Shift PTO
  • Manual Override for PTO
  • Outrigger Spade Attachments
  • Tailboard Underlift Controls
  • Chain & Strap Packages
  • Tailboard D-Ring Package
  • Rear Camera & Monitor (Dual)
  • LED Boom Lights
  • Work & Hook-Up Lighting
  • Stainless & Aluminum Dress Up Kits
  • Knee Boom Underlift
  • Raptor Remote Package

*Only available on the 1140

Raptor™ Package

The patented Raptor Control Package* is optional on the Century 1135 and Century 1140. The operator can easily maneuver through operations at the unit control station, which can be extended away from the vehicle to enhance operator sightlines during use, or on the wireless remote. Joystick controllers operate boom and winch functions and a display screen offers a variety of information including load sensing, free spool and 2-speed operations.

* USPN 9440577, D751,963 S and D752,492 S

Specifications

Boom

Feature 35-Ton - 2 Stage 40-Ton - 3 Stage
Maximum Angle 60° 60°
Boom from Stowed Position 190° CW & CCW 190° CW & CCW
Boom Retracted 70,000 lbs. 80,000 lbs.
Boom Extended 25,000 lbs. 20,000 lbs.
Maximum Hook Height 354” 427”
Boom Extension 130” 216”

Winch Rating & Cable

Feature 35-Ton 40-Ton / (35K Winch Option)
Rating (First Layer, Each Winch) 25,000 lbs. 35,000 lbs.
Diameter and Length (Each Winch) 5/8” x 200’ 3/4” x 200’
Type 6 x 37 IWRC 6 x 37 IWRC

Underlift

Fully Retracted 54” 55,000 lbs.
Fully Extended 144” 17,000 lbs.
Tilt Arc 20° +/-
Tow Rating 80,000 lbs.

Body Configurations

1135 / 1140 180” CB Tandem
1135 / 1140 180” CB Tri-Axle
1140 RXP 204” Tri-Axle

Chassis Recommendation

Front Axle 20,000 lbs.
Rear Axle 46,000 lbs.
Minimum C.B. 180"
Maximum Frame Height 42”
After Frame from Center of Rear Axle 40”
1135 R.B.M. 4,000,000 in/lbs.
1140 R.B.M. 4,000,000 in/lbs.
RXP R.B.M. 4,000,000 in/lbs.
