Light Duty Integrated Century 300 Express G2 PT
Century logo
300 Express G2 PT Gallery
Share
Contact

Contact Us

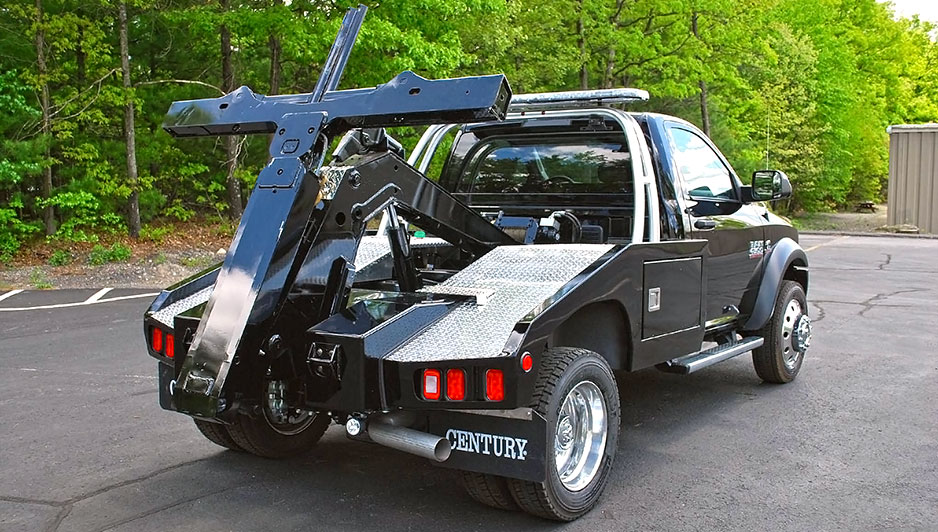

300 Express G2 PT

High Performance Self-Loading Wheel Lift Unit

Features

Top of Page

Standard

  • 60” C.A. Steel Modular Body
  • Adjustable Body Width, 88” or 94”
  • Auto Load Wheel Lift System
  • Adjustable limiter switches on elevation & tilt functions
  • 180° Pivoting Crossbar
  • Self Centering Crossbar
  • Tailboard Safety Chain Pockets
  • Safety Chains
  • Safety Chain Pocket Guards
  • Wheel Lift Ratchets & Straps
  • Driver & Passenger Side Tool Compartments
  • In Cab Wheel Lift & Winch Controls
  • 8,000 lb Planetary Winch
  • Junction Box and Wiring Harness
  • Mud Flaps
  • Federal Standard 108 Lighting
  • Tire Spacers (Flat Tires)

Optional

  • 60” C.A. Aluminum Modular Body
  • 60” C.A. Composite Modular Body
  • Steel Light Pylon
  • Aluminum Tubular Light Pylon
  • 24” Tunnel Tool Box
  • Motorcycle Attachment
  • 5th Wheel Attachment
  • Bolt on Tailboad “D” Rings
  • Dress Up Packages
  • Emergency Lighting
  • Dollies
  • Clutch Pump or Pump/PTO
  • Trailer Hitch Attachment
Units
US
Metric

Specifications

Boom

Recovery Boom (at boom end swivel) 8,000 lb
Maximum Lift Angle 21°
Winch (Planetary) 8,000 lb
Cable 3/8” x 100’

Underlift

Lift Capacity Extended 4,000 lb
Tow Rating 7,500 lb
Maximum Reach 73”
Optional Power Tilt 30° Arc

Chassis Recommendations

Minimum Cab to Axle 60”
Maximum Cab to Axle (With Tunnel Tool Box) 84”
Suggested GVWR 14,500 lb

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
