Retractable Ladder

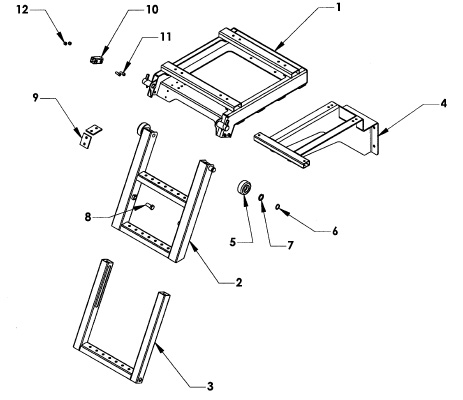

Chevron, Inc. - Series 30 Carrier - Retractable Ladder
ITEM PART NUMBER DESCRIPTION NUMBER REQUIRED
  390000 LADDER ASSEMBLY 1
1 391010 LADDER CARRIAGE 1
2 391020 UPPER RUNG ASSEMBLY 1
3 391030 LOWER RUNG ASSEMBLY 1
4 391040 FRAME MOUNTING BRACKET - OPTIONAL 1
5 36310 WHEEL 2
6 86100E RETAINING RING 1.00 EXTERNAL 2
7 82710 FLAT WASHER 1 x 1.50 2
8 391026 RETAINING BOLT 5/8-11 x 1-1/2 2
9 391018 WEAR PAD 4
10 391015 RETAINING TUBE 2
11 81221 ALLEN HEAD BOLT 3/8-16 x 1 4
12 83211 NYLON LOCK NUT 3/8-16 4
