Tilt Cylinder Components

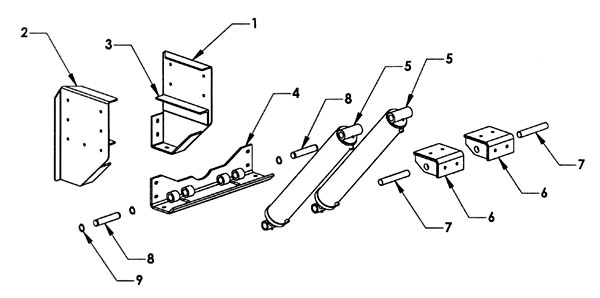

Chevron, Inc. - Series 16 Carrier - Tilt Cylinder Components
ITEM PART NUMBER DESCRIPTION NUMBER REQUIRED
1 1A510R TILT CYLINDER SADDLE-RIGHT 1
2 1A510L TILT CYLINDER SADDLE-LEFT 1
3 1A514 UNDERFRAME SUPPORT ANGLE 2
4 1A520 CONNECTING ANGLE 1
5 72114 TILT CYLINDER 2
6 13420 TILT CYLINDER FOOT 2
7 13423 TILT CYLINDER BASE PIN 1.480 x 9.25 2
8 1A828 TILT CYLINDER ROD PIN 1.480 x 7.875 2
9 86100E RETAINING RING 7200-150 4
