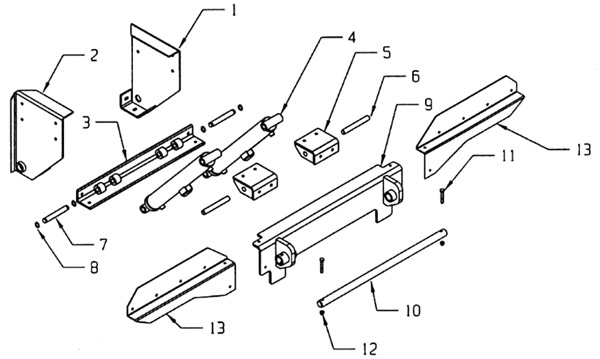

ITEM |
PART
NUMBER |
DESCRIPTION |
NUMBER
REQUIRED |
|
1 |
1A720R |
TILT CYLINDER SADDLE RIGHT |
1 |
|
2 |
1A720L |
TILT CYLINDER SADDLE LEFT |
1 |
|
3 |
1A725 |
SADDLE TILT CYLINDER ANGLE |
1 |
|
4 |
72108 |
TILT CYLINDER |
2 |
|
5 |
13420 |
TILT CYLINDER PIVOT BASE |
2 |
|
6 |
13423 |
.980 x 7-1/2 BASE PIN |
2 |
|
7 |
1A724 |
.980 x 6-1/8 SPRING ROD PIN |
2 |
|
8 |
86100E-1 |
SNAP RING 7200-98 |
4 |
|
9 |
17500 |
HINGE ANGLE |
1 |
|
10 |
17198 |
HINGE PIN 1-1/2 x 36 |
1 |
|
11 |
81451 |
BOLT 1/2-20 UNF x 3 GRADE 5 |
2 |
|
12 |
83324 |
NYLON LOCK NUT 1/2-20 UNF |
2 |
|
13 |
12350L/R |
SPLASH GUARD |
2 |
