Inboard Tilt Cylinders Internal Saddles

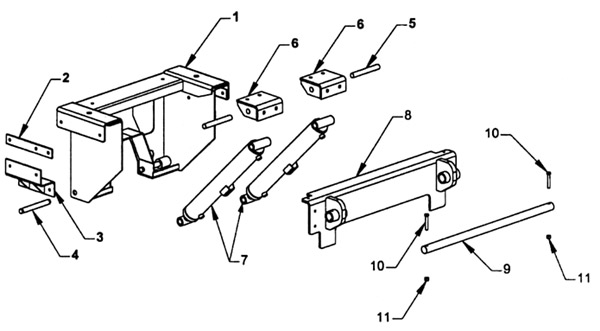

Chevron, Inc. - Series 10 Carrier - Inboard Tilt Cylinders Internal Saddle
ITEM PART NUMBER DESCRIPTION NUMBER REQUIRED
1 1A800 INTERNAL SADDLE 1
2 1A821S SADDLE SHIM 2
3 1A825 FRAME MOUNTING BRACKET 2
4 1A828 TILT CYLINDER PIN .980 x 8-1/8 2
5 13423 TILT CYLINDER PIN .980 x 7-1/2 2
6 13420 TILT CYLINDER FOOT 2
7 72108 TILT CYLINDER 2
8 17500 HINGE ANGLE 1
9 17198 HINGE PIN 1.50 x 36 1
10 81451 BOLT 1/2-20 UNF x 3 GRADE 5 2
11 83324 NYLON LOCK NUT 1/2-20 UNF 2
