RENEGADE 408V & 408T
Back to Manual Contents

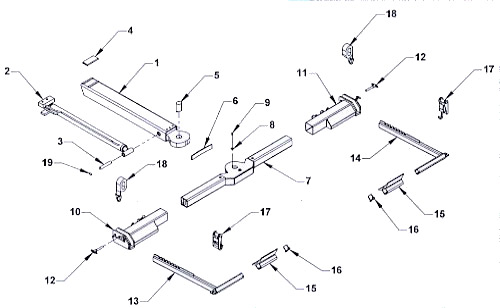

408V & 408T Wheel Lift Components (standard)
ITEM
PART NUMBER
DESCRIPTION
NUMBER REQUIRED
1
6I1088
INNER BOOM
1
2
720163
EXTENSION CYLINDER
1
3
643572
PIN .980 x 5.812
1
4
65621
NYLATRON WEAR PAD
1
5
65435
CROSSBAR PIVOT PIN
1
6
65228
DETENT LEAF SPRING
1
7
65515
CROSSBAR
1
8
82210
3/8 FLAT WASHER - HEAVY DUTY
1
9
812A5
BOLT 3/8 x 5/8 BUTTON HEAD
1
10
65265L
WHEEL GRID - LEFT
1
11
65250R
WHEEL GRID - RIGHT
1
12
84921
T-PIN WITH LANYARD
2
13
65250L
L-ARM - LEFT
1
14
65250R
L-ARM - RIGHT
1
15
65245
WHEEL PAN
2
16
84911
5/16 SAFETY SNAP PIN
2
17
65280A
RATCHET
2
18
65285
STRAP
2
19
86100I
SNAP-RING 1.00 INCH INTERNAL
2
