Chevron, Inc. - Parts
408V & 408T Series

Back to Manual Contents

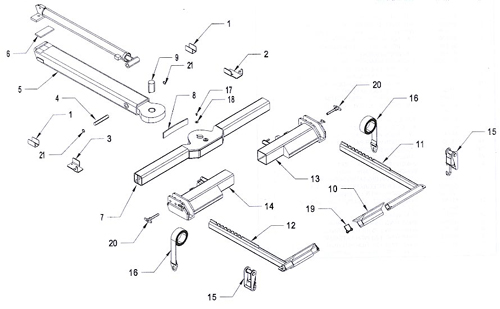

408VA & 408TA Wheel Lift Components (standard)

ITEM PART NUMBER DESCRIPTION NUMBER REQUIRED
1 59231 L-ARM CHANNEL BRACKET 2
2 59232R L-ARM MOUNTING BRACKET - RIGHT 1
3 59232L L-ARM MOUNTING BRACKET - LEFT 1
4 64357 PIN - .980 x 5.875 1
5 65816 INNER BOOM 1
6 64355 WEAR PAD 1
7 65515 CROSSBAR WELDMENT 1
8 65228 YOKE SPRING 1
9 65435 CROSSBAR PIVOT PIN 1
10 65245 REMOVABLE PAN 2
11 65250R WHEEL RETAINER - RIGHT 1
12 65250L WHEEL RETAINER - LEFT 1
13 65256R WHEEL GRID - RIGHT 1
14 65265L WHEEL GRID - LEFT 1
15 65280A RATCHET 2
16 65285 WHEEL STRAP 2
17 812A5 BOLT 3/8 x 1/2 ROUND ALLEN HEAD 1
18 82210 WASHER 3/8 FLAT 1
19 84911 5/16 SAFTEY SNAP PIN 2
20 84921 T-PIN W/LANYARD 2
21 86100I SNAP-RING 1" INTERNAL 2
